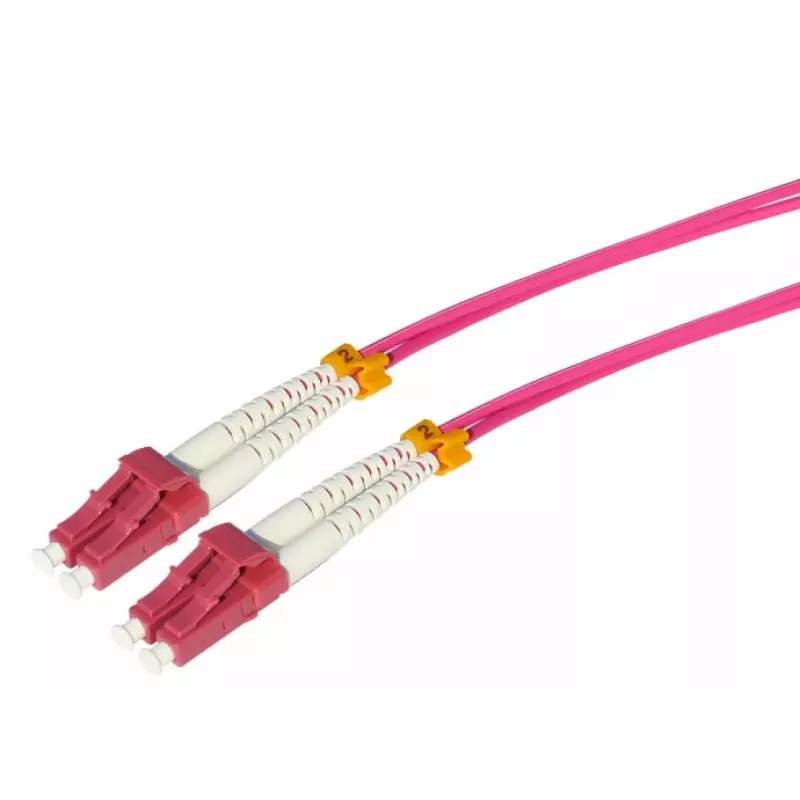

Cabo patch de fibra ótica Tecline HD, OM4 multimodo 50/125 µm, LC duplex para LC duplex, violeta urze, 3,0 m 798LL03

This Tecline HD fibre optic patch cable stands out with its OM4 multimode fibre, engineered for high-bandwidth applications where signal integrity over longer distances matters. The 50/125 µm core/cladding diameter supports laser-optimised transmission, while the LC duplex connectors on both ends provide a secure, space-efficient fit for dense network panels.

Highlights

• OM4 multimode fibre with 50/125 µm core/cladding diameter
• LC duplex to LC duplex connectors
• 3.0 m cable length
• Heather violet LSZH jacket for low smoke and halogen-free safety
• Effective modal bandwidth of 4700 MHz·km at 850 nm

In daily use

Deploy this patch cable in data centres, enterprise backbones, or high-speed storage networks. The OM4 fibre is optimised for 10G, 40G, and 100G Ethernet over multimode distances, while the duplex construction maintains full-duplex links. The LSZH jacket reduces toxic emissions in the event of fire, making it suitable for enclosed spaces.

Full specifications

• Fibre type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connector A: LC Duplex
• Connector B: LC Duplex
• Cable length: 3.0 m
• Jacket colour: Heather violet
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Number of fibres: 2
• Insertion loss (max): 0.3 dB
• Return loss (min): 30 dB
• Attenuation at 850 nm: 3.0 dB/km
• Attenuation at 1300 nm: 1.0 dB/km
• Bandwidth at 850 nm (OFL): 4700 MHz·km
• Bandwidth at 1300 nm (OFL): 500 MHz·km
• Operating temperature: -20°C to +70°C
• Minimum bend radius: 15 mm

Final note

For high-density fibre patching where performance and safety are non-negotiable, this Tecline OM4 cable delivers consistent, low-loss connectivity.
