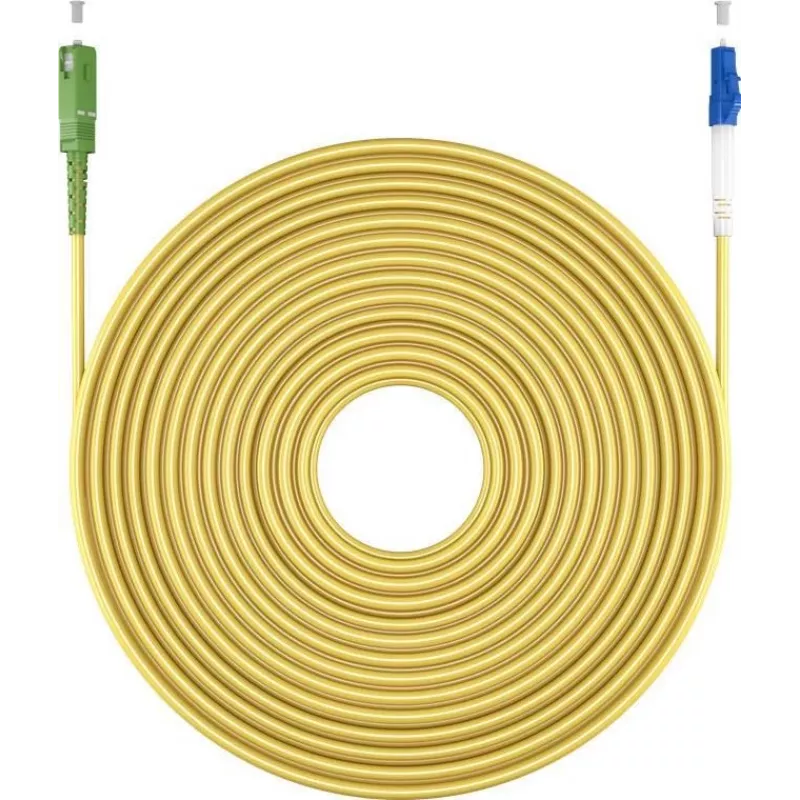

Cabo patch de fibra ótica WENTRONIC Goobay 59648, 1 m, SC/APC para LC/UPC monomodo OS2 amarelo

Fiber optic patch cable with SC/APC to LC/UPC connectors, engineered for FTTH and data center applications. This single-mode OS2 cable ensures minimal signal loss and reliable high-speed data transmission over 1 meter, with a yellow LSZH jacket for safety and visibility.

Advantages

Low insertion loss of ≤0.3 dB and high return loss (≥60 dB on SC/APC, ≥50 dB on LC/UPC) guarantee excellent signal integrity. The LSZH jacket emits low smoke and zero halogen, enhancing safety in enclosed spaces. Ceramic ferrules provide durability and precise alignment.

Suitable for

• FTTH (Fiber To The Home) installations
• Data center interconnects
• Telecommunications networks
• High-speed backbone links

Key specifications

• Connector A: SC/APC
• Connector B: LC/UPC
• Fiber type: Single-mode OS2 (9/125 µm)
• Cable length: 1 m
• Jacket color: Yellow
• Jacket material: LSZH
• Insertion loss: ≤0.3 dB
• Return loss: ≥60 dB (SC/APC), ≥50 dB (LC/UPC)
• Operating wavelengths: 1310 nm, 1550 nm
• Minimum bend radius: 10 mm
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

Ideal for technicians and network engineers seeking a reliable, high-performance patch cable for FTTH and data center deployments. The combination of SC/APC and LC/UPC connectors covers common interface requirements, and the LSZH jacket adds an extra layer of safety.
