Cabo patch Ethernet slim Wirewin SLIM-L-UU-K6A 1.5 RD Cat6a U/UTP, 10 Gbps, vermelho, 1,5 m

10 Gigabit Ethernet over a slim 3.6 mm round cable: this Cat6a patch cable delivers 500 MHz bandwidth and PoE++ support in a lightweight, LSZH jacketed design that fits high-density racks without blocking airflow.

Overview

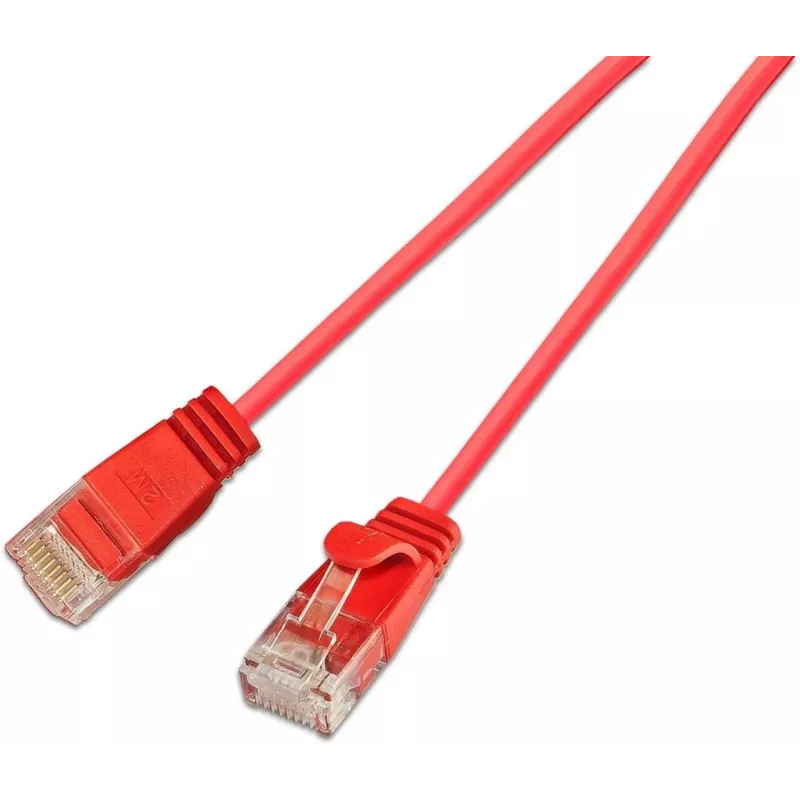

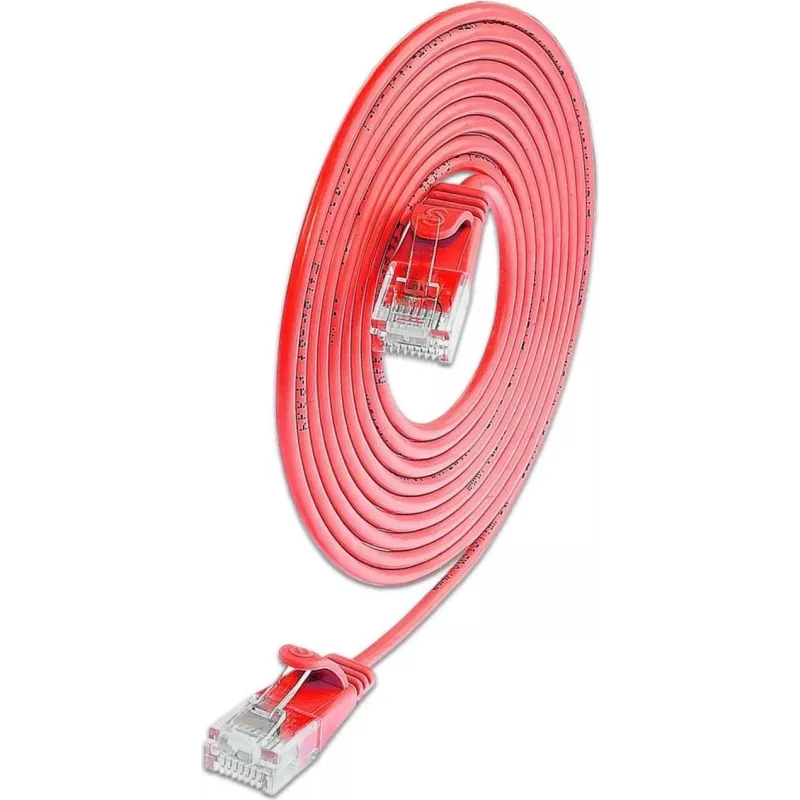

The SLIM WIREWINE SLIM-L-UU-K6A 1.5 RD is a 1.5-meter red Cat6a U/UTP patch cable with RJ45 male connectors on both ends. It uses 32 AWG stranded bare copper conductors and gold-plated contacts for reliable connectivity. The cable is unshielded (U/UTP) and features a snagless molded boot to protect the locking tab during installation.

What stands out

• Slim 3.6 mm diameter saves space in dense patch panels and cable managers
• Supports 10GBASE-T up to 500 MHz for high-speed networking
• LSZH jacket reduces toxic smoke and corrosive gases in case of fire
• PoE++ ready (up to 90W) for powering devices over the same cable
• Snagless boot prevents accidental disconnects when routing through bundles

Technical details

• Cable type: Cat6a patch cable, U/UTP
• Length: 1.5 m
• Colour: Red
• Conductor: 4x2xAWG32/7 stranded bare copper
• Jacket: LSZH, round, 3.6 mm outer diameter
• Connectors: RJ45 male to RJ45 male, gold-plated contacts (50µm)
• Wiring: TIA/EIA 568B
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• PoE support: up to PoE++ (Type 4, 90W)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Our verdict

A high-performance slim patch cable that combines 10G speed, PoE++ capability, and a compact form factor for modern network environments.
