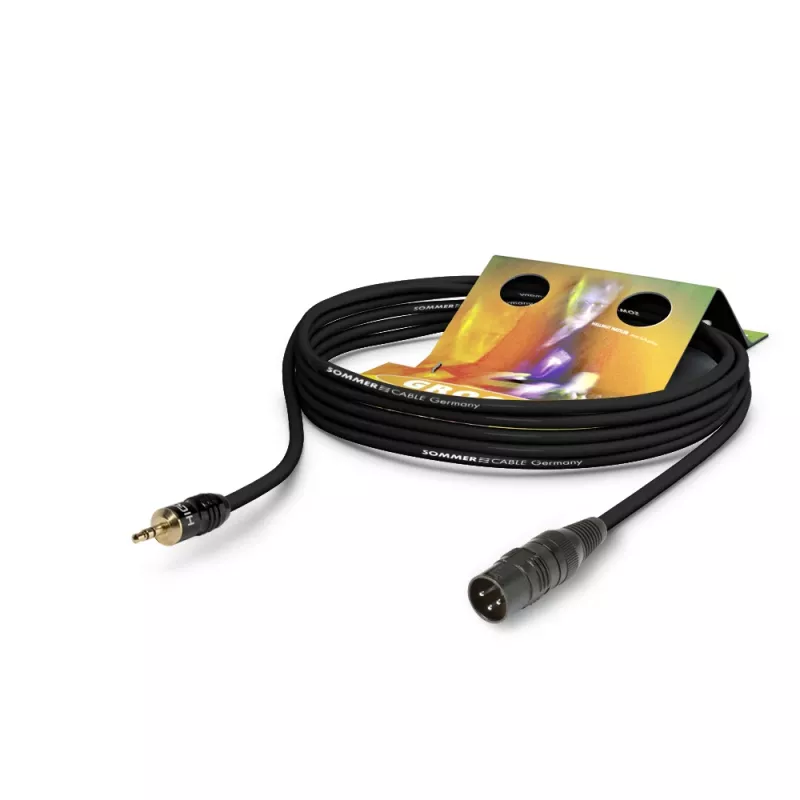

Cabo patch/insert Sommer Cable Club Series MKII, 2 x 0,34 mm², ficha XLR 3 pinos macho para ficha mini-jack estéreo de 3,5 mm, HICON, preto, 1 m (CSDQ-0100-SW)

The Sommer Cable Club Series MKII Stereo Breakout / Insert Cable is a high-quality audio interconnect designed for professional studio, live, DJ, and multimedia applications. This cable features a 3.5mm TRS stereo jack male connector splitting to two XLR male connectors, allowing you to connect stereo sources to balanced inputs or create insert cables for mixing consoles. With a length of 1.5 meters, it offers flexibility in setup while maintaining signal integrity.

Advantages

Engineered with oxygen-free copper (OFC) conductors and a spiral copper shield, this cable delivers low capacitance and excellent noise rejection, ensuring clean audio transmission. The nickel-plated connectors provide reliable, corrosion-resistant contacts. The PVC jacket is durable and flexible, suitable for demanding environments.

Suitable for

• Connecting stereo audio sources (e.g., smartphones, tablets, laptops) to professional audio equipment with XLR inputs
• Creating insert cables for mixing consoles (send/return)
• Studio and live sound setups requiring balanced signal transmission
• DJ and multimedia applications

Key specifications

• Connector A: 1x 3.5mm TRS Stereo Jack Male (straight)
• Connector B: 2x XLR Male (straight)
• Cable Length: 1.5 m (4.92 ft)
• Conductor Material: Oxygen-Free Copper (OFC)
• Conductor Cross-Section: 2x 0.22 mm² (AWG 24)
• Shielding: Spiral Copper Shield
• Jacket Material: PVC
• Jacket Color: Black
• Cable Diameter (Main): Approx. 6.5 mm
• Capacitance (Cond./Shield): Approx. 60 pF/m
• Connector Plating: Nickel
• Temperature Range: -20°C to +70°C
• Pinout: 3.5mm TRS (Tip=Left, Ring=Right, Sleeve=Ground) to 2x XLR Male (Pin 2=Hot, Pin 3=Cold, Pin 1=Ground for each)

Recommendations

For optimal performance, ensure that the 3.5mm jack is fully inserted and the XLR connectors are securely locked. This cable is ideal for use with audio interfaces, mixers, and active speakers.
