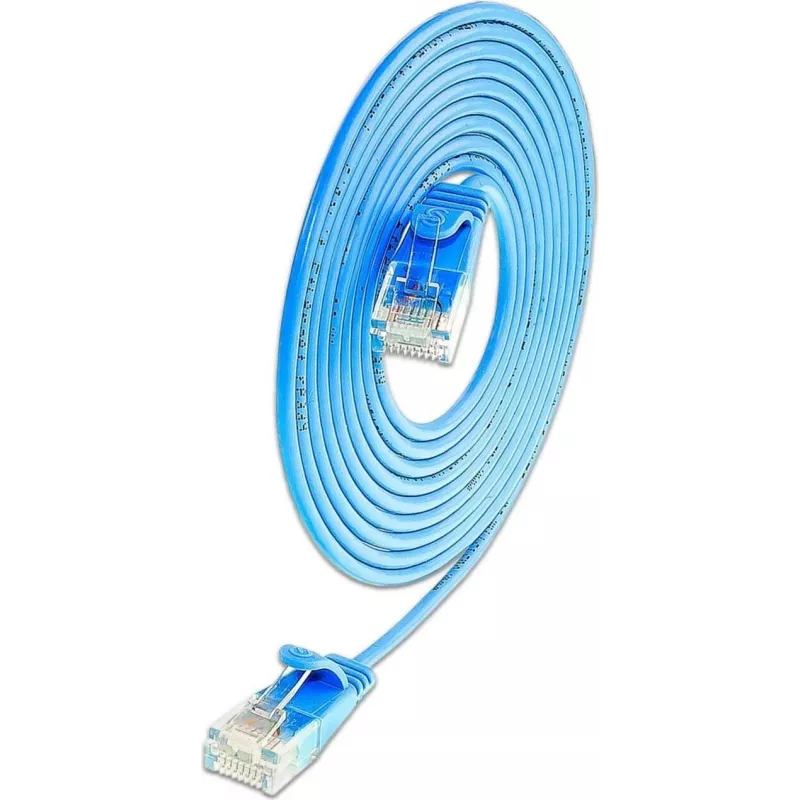

Cabo patch light SLIM KAT6A 10 Gigabit redondo Wirewin, U/UTP, Ø 3,6 mm, azul (SLIM-L-UU-K6A 1.5 BL) - cabo patch Ethernet Slim Cat6a U/UTP azul de 1,5 m

Connect servers, switches, and workstations in high-density data centers with this slim Cat6a patch cable. Its 3.6 mm diameter and snagless boots ease cable management in crowded racks, while the LSZH jacket supports safe deployment in enclosed spaces.

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: U/UTP (unshielded)
• Conductor: 4x2 AWG 28/7 stranded bare copper
• Length: 1.5 m
• Colour: Blue
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Wiring: TIA/EIA 568B
• Jacket: LSZH (low smoke zero halogen)
• Diameter: 3.6 mm
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Operating temperature: -20°C to +60°C
• Flame retardancy: IEC 60332-1
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Why choose it

The slim design reduces congestion and improves airflow in racks, while the stranded conductors provide flexibility for frequent moves. LSZH jacketing lowers smoke and toxic emissions in case of fire, making it suitable for public buildings and data centers.

Ideal use cases

• High-density patching in data centers and server rooms
• 10GBASE-T connections between switches and servers
• Office and home networks requiring gigabit or 10-gigabit speeds
• Power over Ethernet for access points, cameras, and phones

Good to know

The cable is unshielded (U/UTP) and relies on the twisted pair design for noise immunity. It meets Cat6a performance up to 500 MHz, supporting 10 Gigabit Ethernet over shorter distances. The slim boots are snagless, protecting the locking tab during installation.
