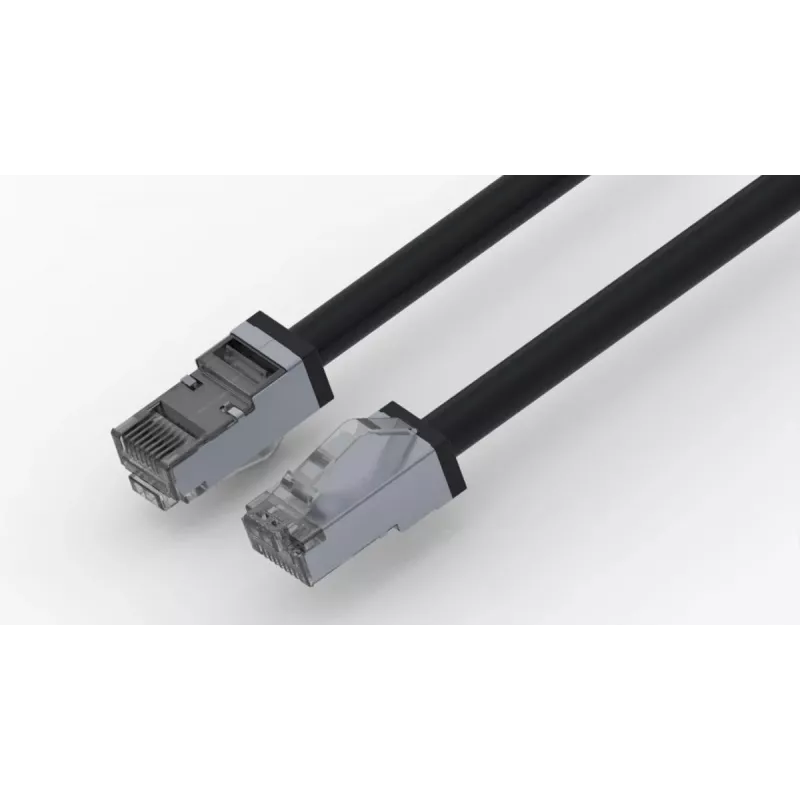

Cabo Patch Outdoor Cat.6A S/FTP PUR Anti-UV Wirewin preto 0,25 m PKW-OUT-SF-K6A-PUR 0,25

Outdoor patch cable with Cat.6A performance and rugged PUR jacket, built for direct burial and harsh environments. The S/FTP shielding and gold-plated contacts deliver 10 Gigabit Ethernet up to 500 MHz, while the anti-UV, halogen-free PUR jacket resists oil, weather, and mechanical stress.

Advantages

This cable combines high-speed data transfer with industrial-grade durability. The stranded pure copper conductors (AWG 26/7) ensure flexibility, and the PUR jacket withstands temperatures from -20°C to +75°C. It supports PoE up to PoE++ (IEEE 802.3af/at/bt) for powering devices over the same cable.

Suitable for

• Outdoor network connections exposed to sunlight and weather
• Direct burial installations
• Industrial Ethernet applications
• Connecting PoE devices such as IP cameras and access points

Key specifications

• Cable type: Patch Cable
• Category: Cat.6A (Category 6A)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: PUR (Polyurethane), anti-UV, halogen-free, oil-resistant
• Conductor: Pure copper, AWG 26/7 stranded
• Connectors: RJ45 male to RJ45 male, gold-plated contacts (50µm)
• Wiring standard: TIA/EIA 568B
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: up to 500 MHz
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Operating temperature: -20°C to +75°C
• Flame retardancy: IEC 60332-1-2
• Colour: Black
• Length: 0.25 m

Recommendations

For reliable outdoor networking, pair this cable with shielded RJ45 connectors and ensure proper grounding of the S/FTP shield. Avoid sharp bends during installation to maintain signal integrity.
