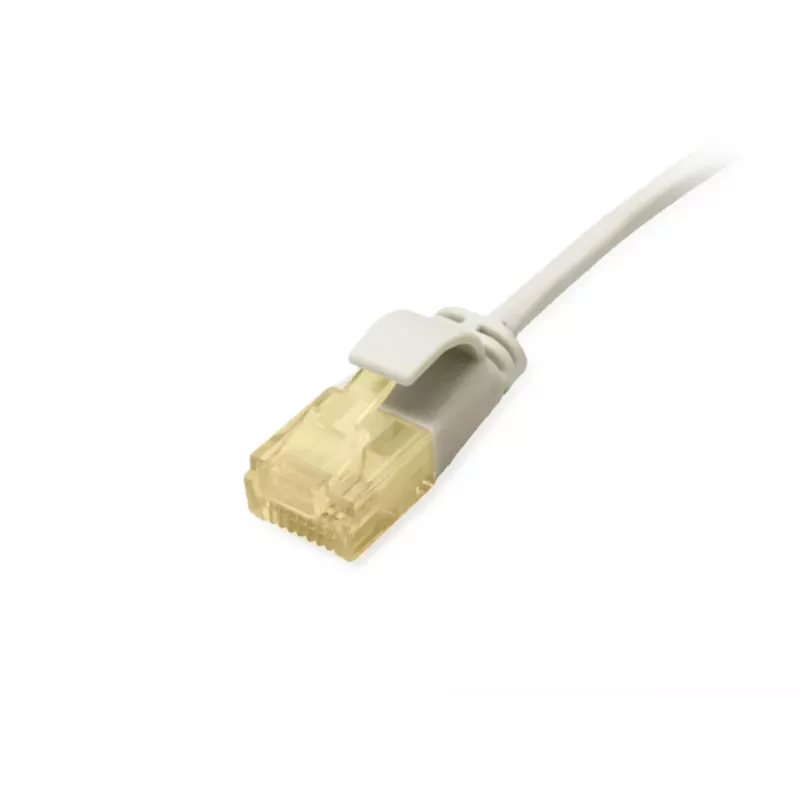

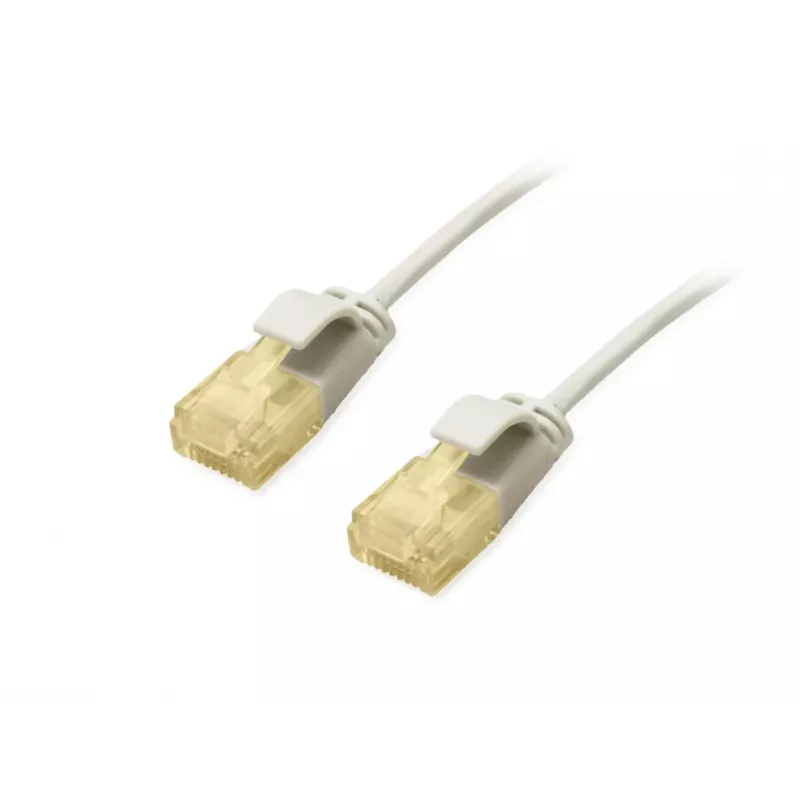

Cabo patch slim Equip Cat.6A U/UTP 0,25 m cinzento 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 0.25m is a slim, high-performance Ethernet patch cable designed for data centers, enterprise networks and high-density installations. With a reduced diameter (approximately 32 AWG) and an unshielded twisted pair construction, this cable supports 10 Gigabit Ethernet at frequencies up to 500 MHz while offering flexibility and easier cable management in crowded racks and patch panels.

Advantages

The slim 32 AWG stranded bare copper conductor reduces cable bulk and improves airflow compared with standard cables, while the U/UTP design provides reliable performance in low to moderate EMI environments. Molded boots with strain relief increase connector durability for frequent reconfiguration, and the cable meets ISO/IEC 11801 and EN 50173 standards. It is RoHS compliant and available in Low Smoke Zero Halogen (LSZH/LSOH) jacket material.

Suitable for

• 10 Gigabit Ethernet links in data centers and server rooms
• High-density patch panels and network racks where space and airflow matter
• Short patch runs between switches and wall outlets (0.25 m)
• Power over Ethernet (PoE, PoE+) deployments

Key specifications

• Cable type: Cat6A U/UTP (unshielded twisted pair)

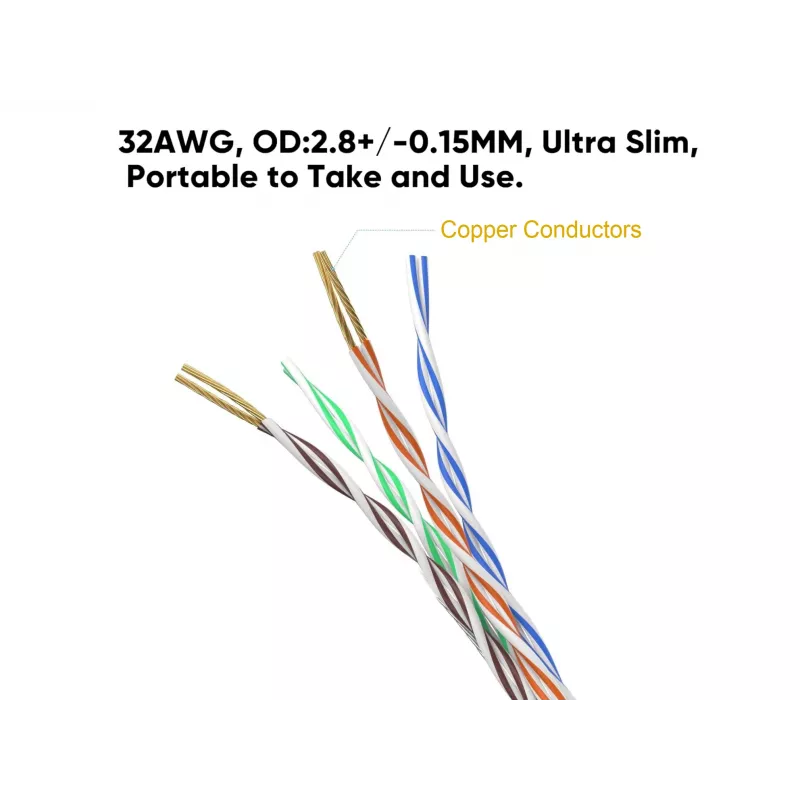

• Conductor: Stranded bare copper, 32 AWG
• Bandwidth/frequency: up to 500 MHz
• Data rate: up to 10 Gbit/s (10000 Mbit/s)
• Length: 0.25 m
• Connectors: RJ-45 straight male – RJ-45 straight male
• Jacket: LSZH/LSOH (Low Smoke Zero Halogen)
• Standards: ISO/IEC 11801, EN 50173
• Compliance: RoHS
• Colour: Grey

How to use

Plug the RJ-45 connector into the network device or switch port and the other end into the target port (patch panel, outlet or device). Use the cable for short patch connections (0.25 m) to maintain tidy cable runs and improved airflow in racks. The molded boot and strain relief help prevent connector damage during insertion and removal.

Recommendations

Use this slim Cat.6A patch cable for short, high-density patching where space and airflow are important. Avoid running unshielded cables in areas with high electromagnetic interference; for such environments consider shielded alternatives.
