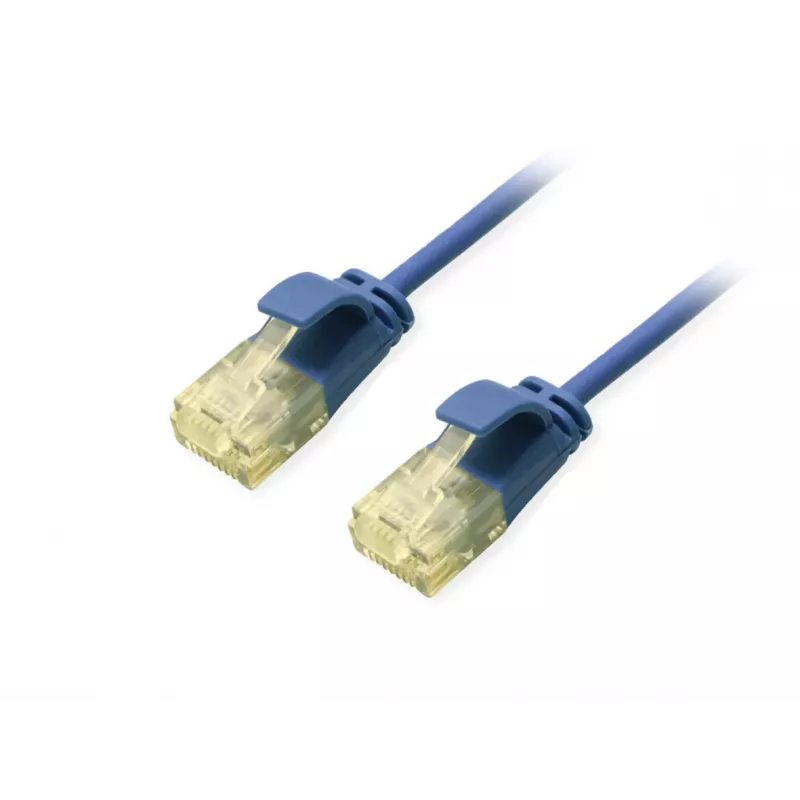

Cabo patch slim Equip Cat.6A U/UTP 0,5 m azul

The Equip Cat.6A U/UTP Slim Patch Cable 0.5m in blue is a slim-profile network cable intended for data centers, enterprise networks and high-density cabling environments. It supports 10 Gigabit Ethernet at frequencies up to 500 MHz and uses unshielded twisted pair (U/UTP) construction with stranded bare copper conductors. The reduced diameter (approximately 32 AWG) improves airflow and simplifies cable management in racks and patch panels while maintaining required performance for high-speed connections.

Advantages

The slim 32 AWG construction reduces bundle volume and allows denser routing without significant signal degradation. Designed for 10GBase-T, the cable provides up to 10 Gbit/s transmission and compatibility with PoE and PoE+ devices. Molded boots with strain relief increase connector durability for frequent reconfiguration, and the LSZH/LSOH jacket minimizes smoke and toxic emissions in case of fire. The product is RoHS compliant and meets ISO/IEC 11801 and EN 50173 standards.

Suitable for

• High-density patch panels and server racks
• Short patch runs between switches and servers (0.5 m)
• 10 Gigabit Ethernet connections and other Ethernet networks (1G/2.5G/5G/10G)
• PoE and PoE+ powered devices

Key specifications

• Cable type: Cat.6A U/UTP (unshielded twisted pair)
• Length: 0.5 m
• Conductor: Stranded bare copper, 32 AWG
• Connectors: RJ-45 straight male – RJ-45 straight male
• Performance: up to 500 MHz, up to 10 Gbit/s
• Jacket: LSZH/LSOH (Low Smoke Zero Halogen)
• Standards: ISO/IEC 11801, EN 50173; RoHS compliant
• Colour: Blue

How to use

Plug one RJ-45 connector into the switch or patch panel port and the other into the target device or server port. Ensure connectors are fully inserted until the clip clicks to provide a secure connection. Route the cable through cable management trays or ducts to maintain airflow and avoid sharp bends; the slim design facilitates tight routing in crowded racks. For PoE applications, confirm the switch or injector supports the required power class.

Recommendations

Use this 0.5 m slim Cat.6A patch cable for short interconnects in high-density installations where space and airflow are critical. Avoid kinking the cable and maintain bend radii recommended by industry practice to preserve signal integrity.
