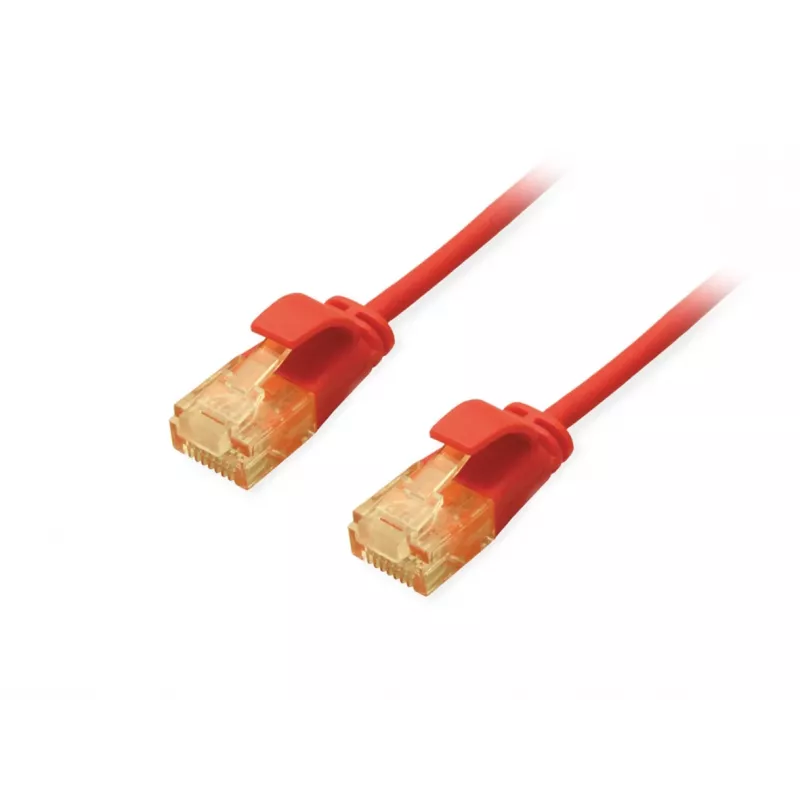

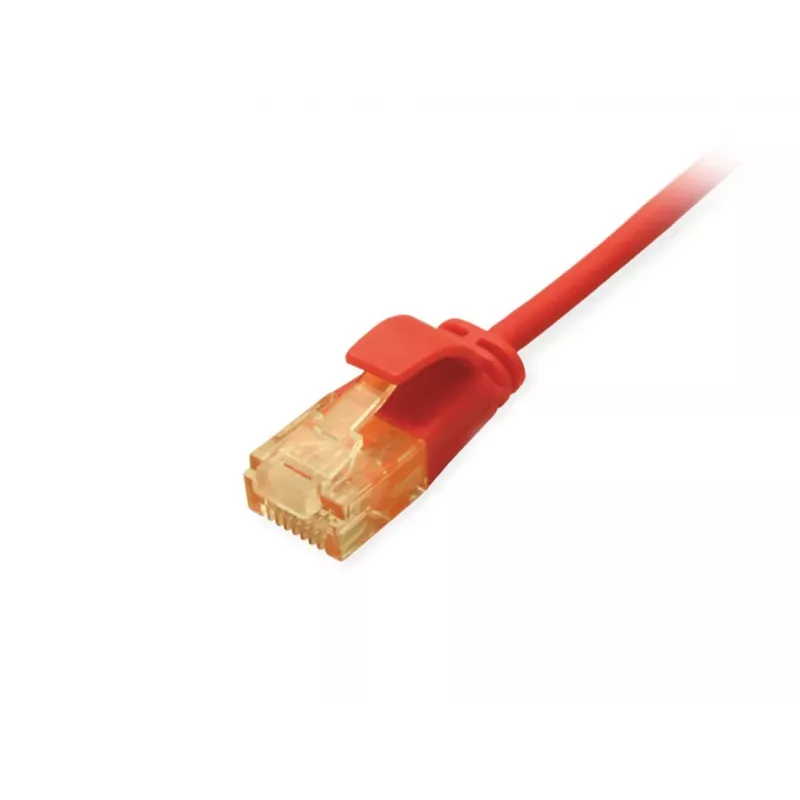

Cabo patch slim Equip Cat.6A U/UTP 0,5 m vermelho 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 0.5m Red is a slim, high-performance patch cable intended for data centres, enterprise networks and high-density installations. With a reduced diameter (32 AWG) and unshielded twisted pair (U/UTP) construction, it supports 10 Gigabit Ethernet and frequencies up to 500 MHz while allowing improved airflow and neater cable management in crowded racks and patch panels.

Advantages

The slim 32 AWG design reduces clutter and improves rack airflow without sacrificing transmission speed. Stranded bare copper conductors provide flexibility for frequent reconfiguration and durable connections, while molded boots with strain relief protect RJ-45 plugs. The cable is RoHS compliant, uses Low Smoke Zero Halogen (LSZH/LSOH) material and meets ISO/IEC 11801 and EN 50173 standards.

Suitable for

• 10 Gigabit Ethernet links in data centres and server rooms
• High-density patch panels and crowded rack environments
• Short patch connections between switches, routers and patch panels (0.5 m)
• PoE and PoE+ powered devices

Key specifications

• Length: 0.5 m
• Cable type: Cat.6A U/UTP (unshielded twisted pair)
• Conductor: stranded bare copper, 32 AWG
• Bandwidth/frequency: up to 500 MHz
• Data rate: up to 10 Gbit/s (10000 Mbit/s)
• Connectors: RJ-45 straight male — RJ-45 straight male
• Compatible with: 2.5G, 5G, 10G, Gigabit Ethernet, Fast Ethernet
• PoE: supports Power over Ethernet and PoE+
• Material: LSZH/LSOH jacket
• Standards: ISO/IEC 11801, EN 50173; RoHS compliant
• Colour: Red

How to use

Insert each RJ-45 connector into the corresponding network device ports (switch, patch panel or network interface). Ensure connectors click into place and route the cable through cable management channels or ties to maintain neatness and airflow. Use the 0.5 m length for short patching between adjacent devices or within patch panels.

Recommendations

For optimal performance, avoid tight bends with radii smaller than the cable construction allows and keep the cable away from strong electromagnetic sources. Use for short links where a slim profile improves rack density; for long permanent links use appropriate full-size Cat6A installation cable.
