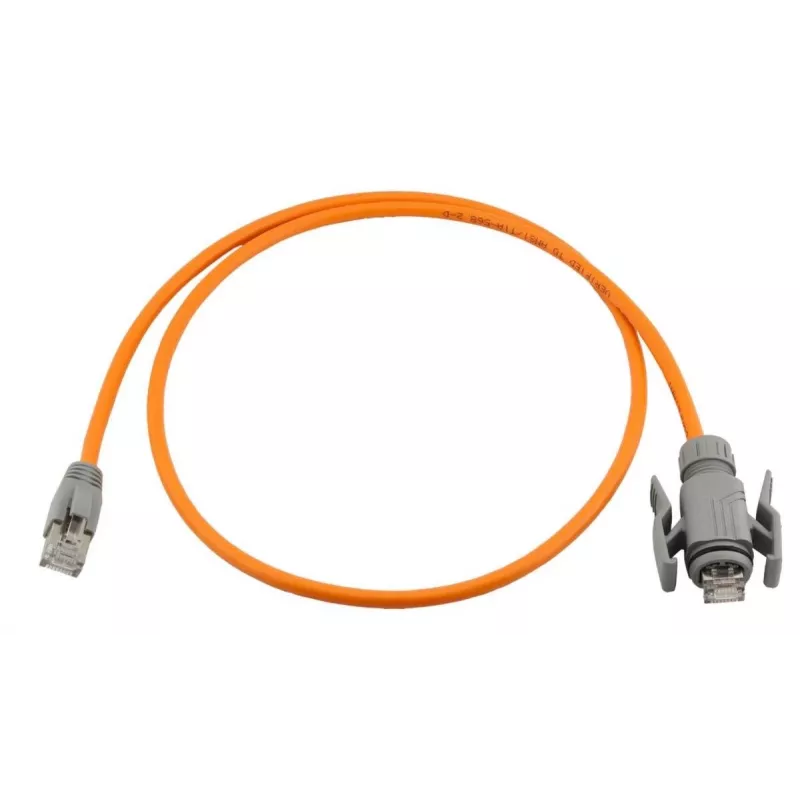

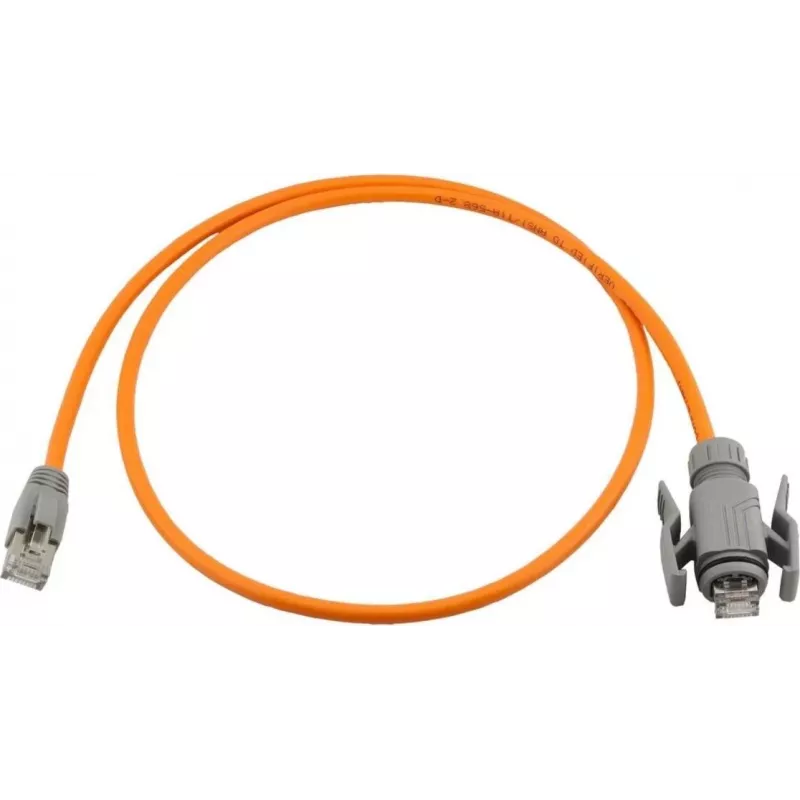

Cabo patch Wirewin Industrial CAT6A S/FTP PUR, RJ45 IP67, 10 m, laranja PKW-I1-SF-K6A-PUR 10.0 OR

Industrial Ethernet patch cable with Category 6A performance, shielded S/FTP construction and a rugged PUR jacket that resists UV, oil, chemicals and abrasion. Delivers 10 Gigabit data transfer over 10 metres with IP67-rated RJ45 connectors for dust-tight, water-resistant links in harsh environments.

Advantages

The S/FTP shielding and 500 MHz bandwidth ensure reliable 10GBASE-T transmission even in electrically noisy industrial areas. The anti-UV PUR outer sheath withstands outdoor exposure, while the IP67 connectors maintain a sealed connection when mated, protecting against dust and temporary immersion. Stranded copper conductors provide flexibility for frequent re-routing, and the cable supports PoE, PoE+ and PoE++ for powering devices over the same link.

Suitable for

• Industrial Ethernet and PROFINET installations
• Outdoor or washdown areas requiring UV and chemical resistance
• Connecting IP67-rated equipment such as cameras, sensors and access points
• 10 Gigabit backbone links in factories and warehouses

Key specifications

• Category 6A, S/FTP, 500 MHz, 10GBASE-T
• 10.0 m length, orange PUR jacket, anti-UV, oil and chemical resistant
• RJ45 connectors with IP67 protection (mated)
• Stranded copper, halogen-free, flame retardant to IEC 60332-1-2
• Operating temperature -40°C to +80°C
• PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)

Recommendations

Use this cable where a permanent outdoor or washdown-rated link is needed and the connector must stay sealed against moisture and dust. Pair with IP67-rated sockets or bulkhead couplers to maintain the protection rating.
