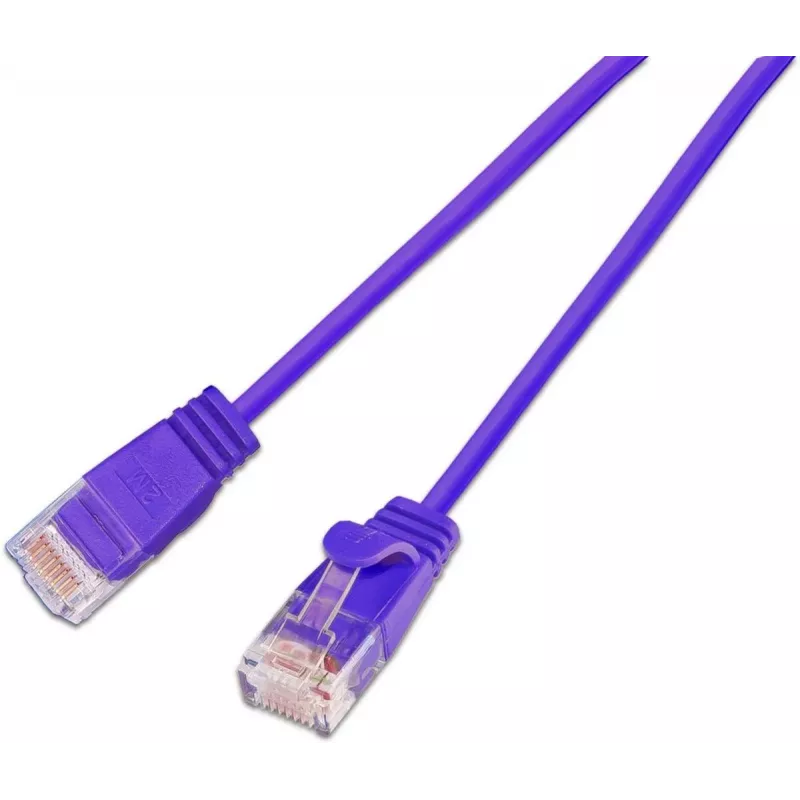

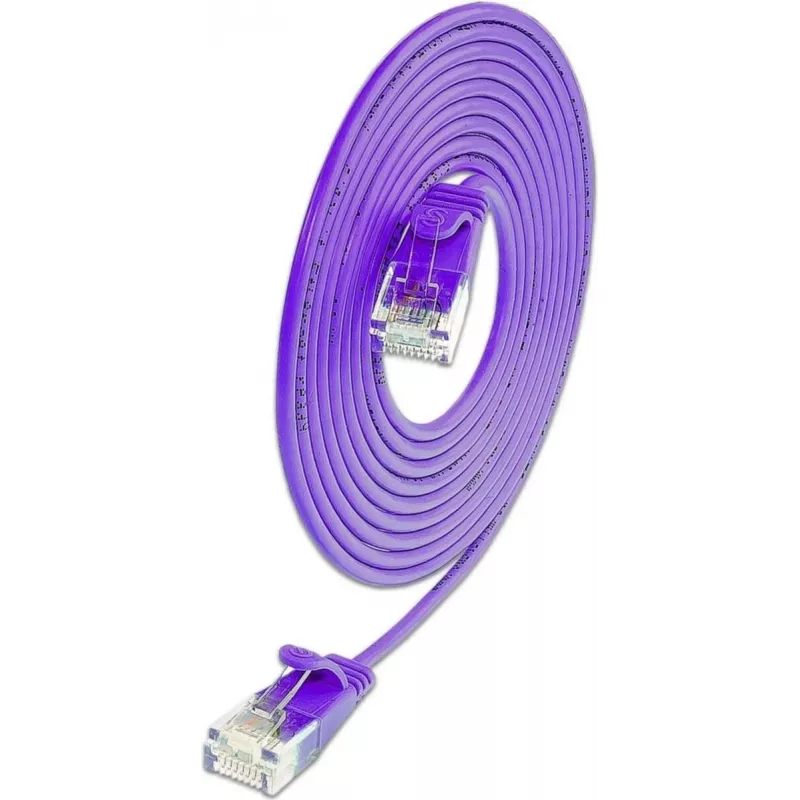

Cabo patch Wirewin SLIM KAT6A 10 Gigabit Light, U/UTP, Ø 3,6 mm, violeta, 0,15 m (SLIM-L-UU-K6A 0.15 VT)

This ultra-slim Cat6A patch cable delivers 10 Gigabit Ethernet in a compact 3.6 mm diameter, ideal for high-density data center and server room installations where space is at a premium. The violet jacket provides easy color-coding, while the LSZH material ensures low smoke and zero halogen emissions for safety in enclosed environments.

Highlights

• 10 Gigabit Ethernet performance with 500 MHz bandwidth
• Ultra-slim 3.6 mm round design for high-density patching
• U/UTP unshielded construction with stranded copper conductors (AWG 28/7)
• LSZH (Low Smoke Zero Halogen) jacket for improved fire safety
• Gold-plated RJ45 connectors (50µm) for reliable connectivity
• Supports PoE, PoE+, and 4PPoE for power delivery

In daily use

The 0.15 m length is perfect for short patching between adjacent ports in racks or wall outlets. The slim profile reduces cable clutter and improves airflow, while the stranded conductors offer flexibility for tight bends. The violet color stands out for quick identification in complex setups.

Full specifications

• Cable Type: Ethernet Patch Cable
• Category: Cat6A (Category 6A)
• Shielding: U/UTP (Unshielded/Unshielded Twisted Pair)
• Data Transfer Rate: 10 Gigabit Ethernet (10GbE)
• Bandwidth: 500 MHz
• Cable Length: 0.15 m (15 cm)
• Cable Construction: Round
• Outer Diameter: 3.6 mm
• Color: Violet
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated contacts (50µm)
• Conductor Material: Copper (Cu)
• Conductor Gauge: AWG 28/7 (Stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Wiring Standard: TIA/EIA 568B
• PoE Support: Yes (PoE, PoE+, 4PPoE compatible)
• Operating Temperature: -20°C to 60°C
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Application: Data Centers, Server Rooms, LAN Networks
• Halogen Free: Yes

Final note

Combine with other lengths and colors from the SLIM KAT6A series for a fully organized, high-performance network infrastructure.
