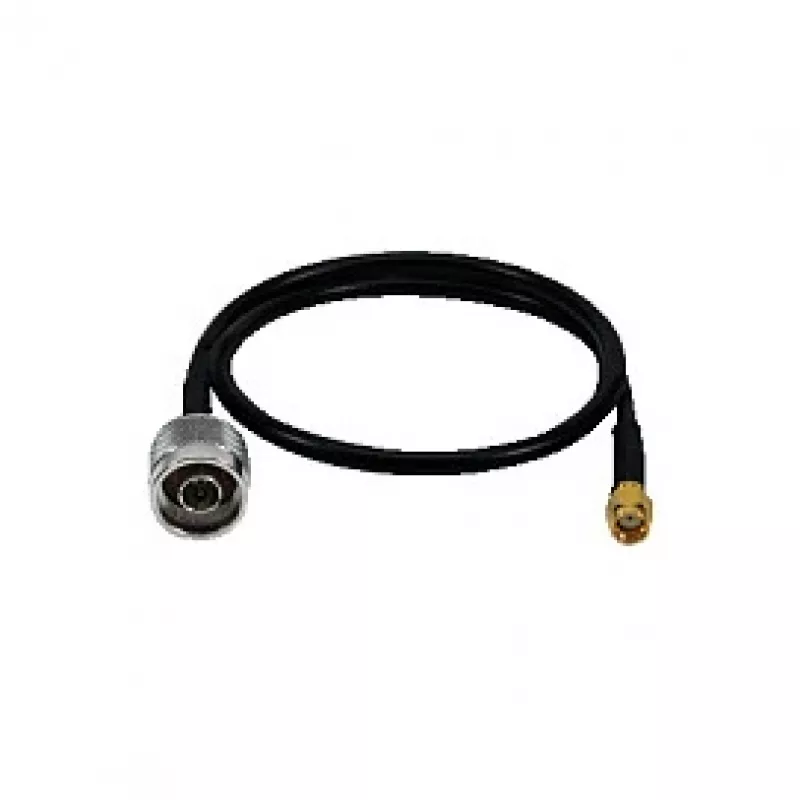

Cabo pigtail WLAN LogiLink WL0104, conector macho N para RP-SMA, 0,5 m, preto

Standard antenna cables often force compromises between professional RF gear and consumer WiFi hardware, but the LogiLink WL0104 eliminates that gap with a purpose-built N-Type to RP-SMA connection. This 0.5-meter pigtail replaces bulky adapters and custom assemblies, delivering a clean, low-loss link in a compact form factor. The RG58U coaxial core maintains a stable 50-ohm impedance across 2.4 GHz and 5 GHz bands, ensuring signal integrity whether you're extending an outdoor access point or integrating a high-gain antenna into an existing setup.

Highlights

• N-Type male to RP-SMA male connectors for direct compatibility with a wide range of WLAN devices
• RG58U double-shielded coaxial cable minimizes interference and signal loss over short runs
• Nickel-plated connectors resist corrosion and ensure reliable mating cycles
• Supports IEEE 802.11a/b/g/n/ac/ax networks on both 2.4 GHz and 5 GHz frequencies
• Flexible PVC jacket with a slim 5 mm diameter for easy routing in tight spaces

In daily use

This pigtail cable is ideal for installers and enthusiasts who need a dependable RF link without excess length. The N-Type plug connects to antennas, lightning arrestors, or bulkhead mounts, while the RP-SMA plug fits most routers, access points, and PCIe WiFi cards. The 0.5-meter length keeps signal attenuation negligible while offering enough slack for panel mounting or equipment rack integration. Double shielding blocks electromagnetic interference from nearby power lines or other electronics, preserving a clean signal in dense environments.

Full specifications

• Product Type: WLAN Pigtail Cable
• Cable Length: 0.5 m
• Connector 1: N-Type Plug (Male)
• Connector 2: RP-SMA Plug (Male)
• Cable Type: RG58U Coaxial Cable
• Impedance: 50 Ohm
• Frequency Support: 2.4 GHz, 5 GHz
• Connector Plating: Nickel-plated
• Cable Jacket Material: PVC
• Color: Black
• Shielding: Double Shielded
• Compatibility: IEEE 802.11a/b/g/n/ac/ax
• Cable Diameter: Approx. 5 mm
• Insulation Material: PE (Polyethylene)

Final note

For a reliable, low-loss RF connection between N-Type and RP-SMA interfaces, the LogiLink WL0104 delivers professional-grade performance in a compact, durable package.
