Cabo SAS Intel AXXCBL800CVCR

800 mm spare cable kit with one cable included. The Intel AXXCBL800CVCR is a 0.8 m SAS cable with SFF-8611 (OCuLink) connectors, supplied in black. It is used in R1208, R2208, R2208+8 and R2224 systems to connect a server board OCuLink (SFF-8611) SSD connector to an HSBP SSD connector, providing a short, direct link for internal storage connections.

Advantages

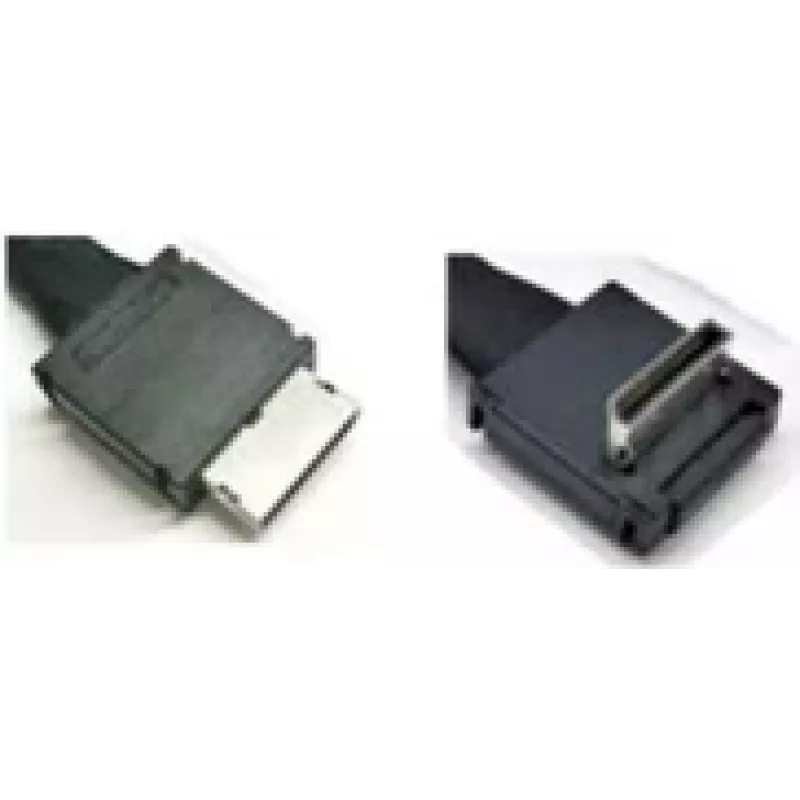

The cable features SFF-8611 (OCuLink) connectors on both ends — one straight and one right-angle — to accommodate tight routing and reduce strain at the connector. Its 0.8 m length (800 mm) is suitable for compact server chassis and helps with neat cable management. The product is classified under ECCN EAR99 and is compatible with supported Intel storage enclosures and server boards.

Suitable for

• Connecting server board OCuLink (SFF-8611) SSD connectors to HSBP SSD connectors in R1208, R2208, R2208+8 and R2224 systems
• Internal SAS/OCuLink connections in rack servers and storage enclosures
• Cable routing in compact server chassis where a right-angle connector is required

Key specifications

• Length: 800 mm (0.8 m)
• Connector 1: SFF-8611 (OCuLink), straight
• Connector 2: SFF-8611 (OCuLink), right-angle
• Included: 1 cable per kit
• Colour: Black
• Brand: INTEL
• MPN: AXXCBL800CVCR
• ECCN: EAR99

How to use

Install the cable by inserting the straight SFF-8611 connector into the server board OCuLink SSD port and the right-angle SFF-8611 connector into the HSBP SSD connector, ensuring secure seating at both ends. Route the cable to avoid interference with airflow and other components, and secure it with existing cable ties or clips if available. Verify the connection in the server firmware or operating system to confirm the SSD is detected.

Recommendations

Use this 800 mm spare cable kit for internal connections only. Avoid excessive bending at the connector ends and maintain proper strain relief. Replace the cable if connectors or shielding show visible damage before reuse.
