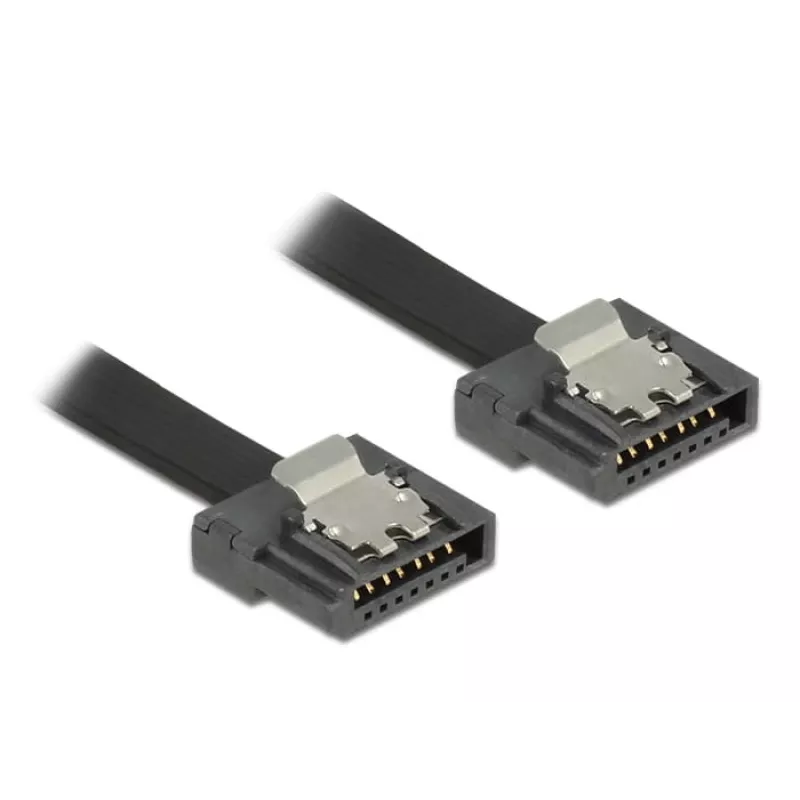

Cabo SATA DeLOCK 0,3m SATA III 7 pinos

The DeLOCK SATA Cable 0.3 m (SATA III, 7-pin) is an ultra-flexible internal data cable designed for use in compact PC cases. Its short, bendable connectors and flexible jacket allow routing in tight spaces without the need for angled plugs, while metal clips secure reliable connections. The cable supports SATA III transfer rates up to 6 Gb/s and is backwards compatible with earlier SATA versions.

Advantages

The cable's extreme flexibility permits tight bends and even knots, making it suitable for constrained installation areas. Short connector housings increase manoeuvrability inside the chassis and metal retention clips ensure the connectors lock firmly. The construction emphasises durability to reduce the risk of breakage or material fatigue under repeated bending.

Suitable for

• Connecting internal HDDs or SSDs to a motherboard in compact or small-form-factor PCs
• Systems where cable routing requires tight bends or non-standard orientations
• Upgrades or replacements of standard SATA cables inside desktop cases

Key specifications

• Brand: DELOCK
• Model / MPN: 83840
• EAN: 4043619838400
• Cable type: SATA III
• Length: 0.3 m
• Connectors: SATA 7-pin to SATA 7-pin
• Max. data rate: up to 6 Gb/s (backwards compatible)

How to use

Connect one 7-pin SATA connector to the drive (HDD or SSD) and the other to the motherboard SATA port, ensuring the metal clip engages to lock the connector in place. Route the cable through the case following available cable channels or tie points, avoiding excessive compression. For best results, bend the cable gently at the connector ends to achieve the required direction without stressing the cable conductors.

Recommendations

When installing inside compact cases, plan cable routing before insertion to minimise interference with fans and other components. Although the cable is highly flexible, avoid repeated sharp kinking at the same point to prolong service life.
