Cabo SATA DeLOCK 83803 0,3m SATA 22 pinos preto vermelho amarelo

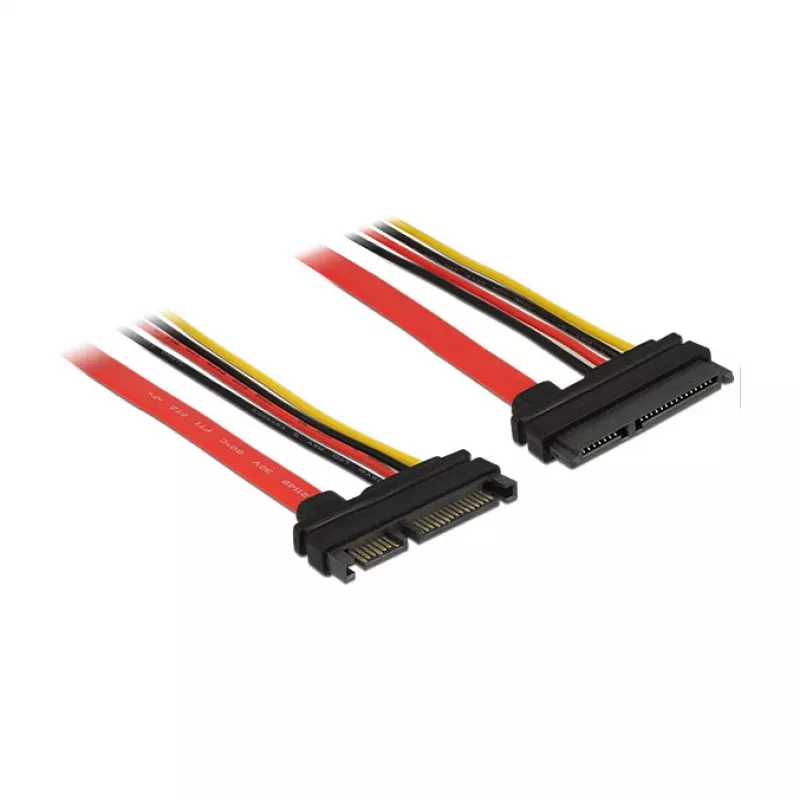

This SATA extension cable by Delock enables the extension of a SATA data and power interface and can be used to connect different devices with a 22 pin SATA connector. The cable is 0.3 m long and features a 22-pin SATA plug and receptacle (7 pin data + 15 pin power). It supports data transfer rates up to 6 Gb/s and is downwards compatible with SATA 1.5 Gb/s and 3 Gb/s. The cable uses 26 AWG for the data line and 18 AWG for the power lines and includes four power wires: yellow (12 V), red (5 V) and black (GND).

Advantages

The Delock SATA cable provides a compact 0.3 m extension that preserves SATA 6 Gb/s signalling while remaining compatible with earlier SATA versions. The integrated 22-pin plug and receptacle combine data and power in a single connection, and the thicker 18 AWG power conductors improve power delivery for connected devices. Colour-coded wires simplify identification during installation.

Suitable for

• Extending internal SATA connections between motherboard and drives
• Connecting SATA hard drives, SSDs and optical drives inside PC cases
• Replacing or extending short/misaligned internal SATA cables

Key specifications

• Cable type: SATA I (compatible with SATA I/II/III)
• Cable length: 0.3 m
• Connector 1: SATA 22-pin (7 pin data + 15 pin power) plug
• Connector 2: SATA 22-pin (7 pin data + 15 pin power) receptacle
• Data rate: up to 6 Gb/s, downward compatible to 1.5/3 Gb/s
• Data line: 26 AWG; Power line: 18 AWG

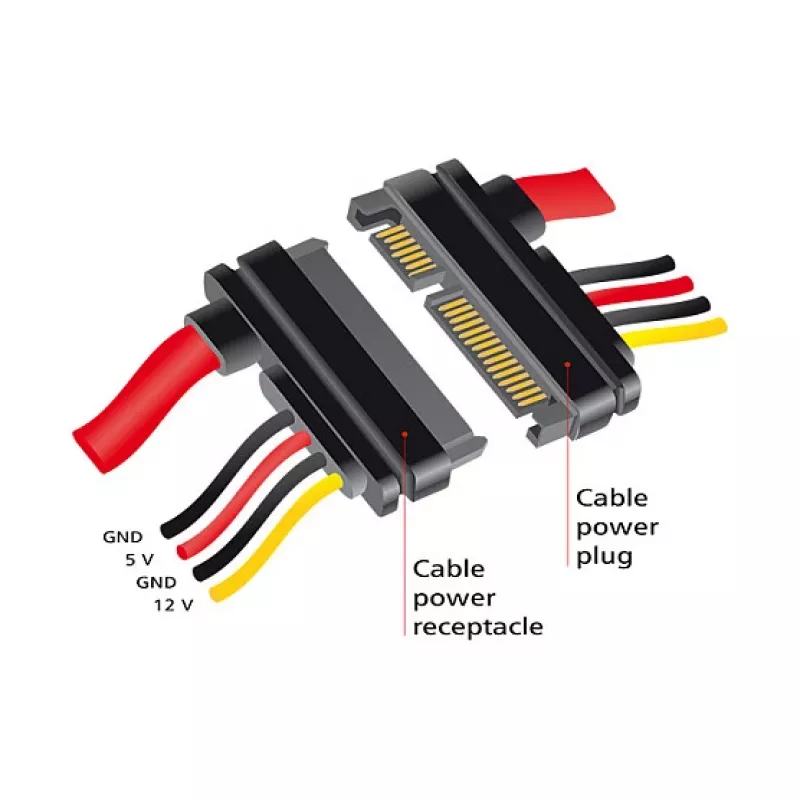

• Power wires: 4 (yellow = 12 V, red = 5 V, black = GND)
• Product colour: Black, Red, Yellow

How to use

Connect the 22-pin SATA plug to the SATA receptacle on the motherboard or host controller and insert the 22-pin SATA receptacle end into the SATA device (HDD, SSD or optical drive). Ensure connectors are aligned and fully seated to provide both data and power. Do not force the connector; if it does not fit easily, check orientation and the device connector for obstructions.

Recommendations

Use this Delock 0.3 m SATA extension cable for internal, case-mounted connections. Avoid bending the cable sharply, keep it clear of fans and heat sources, and ensure proper strain relief to maintain signal integrity and safe power delivery.
