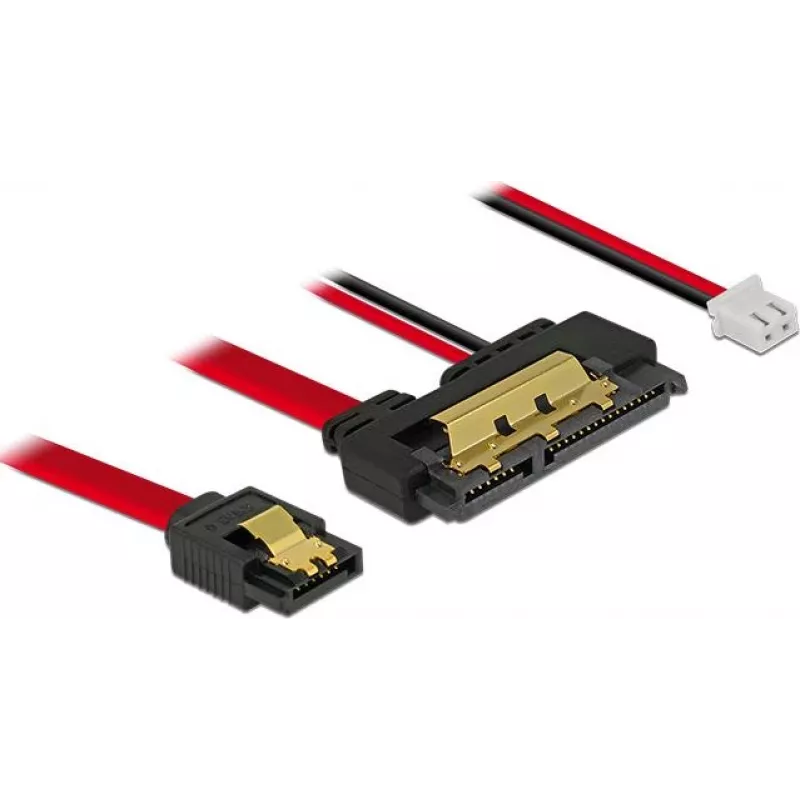

Cabo SATA DeLOCK 85238 0,1 m SATA 7 pinos + Molex (4 pinos)

This Delock cable allows connecting a device with a 22-pin SATA interface to a motherboard using an available 7-pin SATA port and a 4-pin Molex power connector. The compact 0.1 m cable supports SATA III data rates and is suitable for installations with limited space, such as single-board computers like the Banana Pi. Metal clips on the SATA receptacles secure the connections and help prevent accidental disconnection.

Advantages

The cable combines a SATA 7-pin data connector with a Molex 4-pin power plug, enabling data and power connection where a dedicated 22-pin SATA plug is required. Its short 0.1 m length reduces cable clutter in tight enclosures. Support for SATA III ensures compatibility with modern SATA devices, while the metal locking clips provide a reliable mechanical connection.

Suitable for

• Connecting 22-pin SATA devices to motherboards with a 7-pin SATA data port and Molex power
• Small form-factor systems and single-board computers (e.g., Banana Pi)
• Tight internal enclosures where a short cable is needed

Key specifications

• Cable type: SATA III
• Cable length: 0.1 m
• Connector 1: SATA 7-pin + Molex (4-pin)
• Connector 2: SATA 22-pin
• Product colour: Black
• Manufacturer: DELOCK, MPN: 85238, EAN: 4043619852383

How to use

Plug the 22-pin SATA end into the device that requires a 22-pin SATA connection. Insert the SATA 7-pin connector into an available SATA port on the motherboard and connect the Molex 4-pin plug to a free Molex power header on the board or power supply. Ensure the metal clips engage to lock the SATA connectors in place. Verify that the device is recognised by the system after powering on.

Recommendations

Use this cable in systems where short reach is sufficient and routing space is limited. Avoid excessive bending near the connectors and ensure the Molex power connection matches the voltage and pinout required by the device.
