Cabo SATA ficha/ficha DeLOCK 82824 0,3 m amarelo

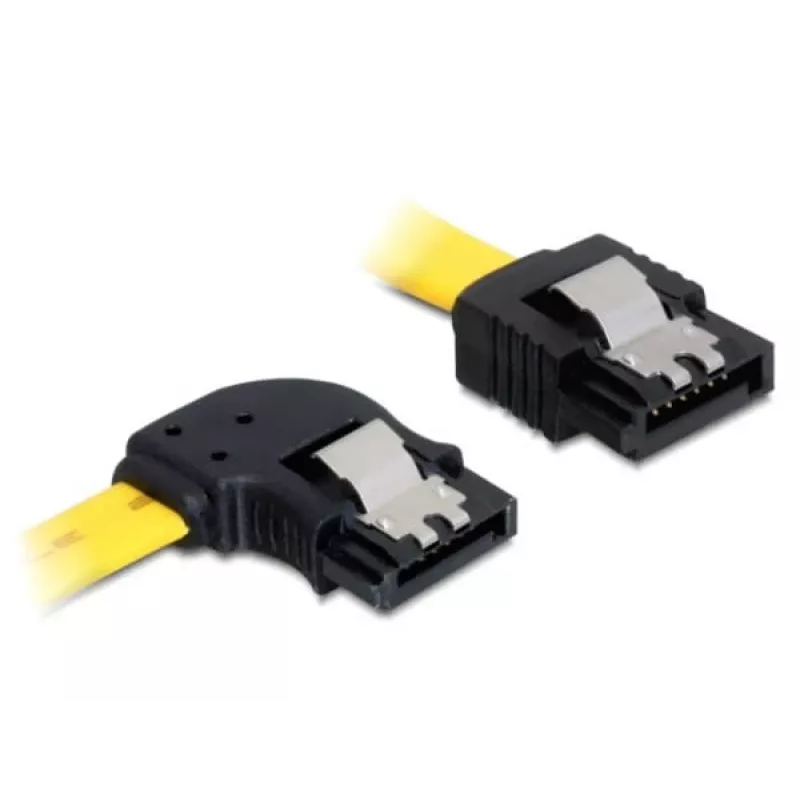

The DeLOCK SATA cable (model 82824) is a 0.3 m male-to-male internal cable for connecting SATA devices such as HDDs, SSDs or controller cards. It supports the SATA III standard with a maximum theoretical data transfer rate of up to 6 Gb/s and is backwards compatible with earlier SATA revisions. The cable is yellow for easy identification and features metal clips on the connectors for additional snap-in retention.

Advantages

This SATA cable provides a standardized SATA 6 Gb/s interface to connect internal storage devices reliably in compact spaces. The 0.3 m length reduces cable clutter inside chassis, while the metal clips improve connector retention. Backwards compatibility ensures it functions with older SATA devices, operating at the respective supported transfer speed.

Suitable for

• Internal connection of 2.5" or 3.5" HDDs and SSDs
• Connecting SATA controller cards to drives
• Use in desktop PCs, servers and small form-factor builds
• Short internal cable runs where a 0.3 m length is sufficient

Key specifications

• Model: DeLOCK 82824
• Cable type: SATA male to SATA male
• Length: 0.3 m
• Interface: SATA III (6 Gb/s), backwards compatible
• Colour: Yellow
• Retention: metal clips on connectors

How to use

Connect one SATA male connector to the SATA port on the motherboard or controller card and the other connector to the SATA power/data port on the drive. When attached to a hard drive, the cable will be routed so the connector points to the left side. Ensure both connectors click into place via the metal clips to secure the connection. The actual data transfer speed will depend on the capabilities of the connected devices and the SATA revision they support.

Recommendations

Use this 0.3 m SATA cable for short internal connections; avoid routing it across moving parts or near high-heat sources. Verify compatibility with your drive and controller to achieve the expected transfer rate, and secure connectors to prevent accidental disconnection during transport or maintenance.
