Cabo série Honeywell CBL-020-300-C00-02 preto 3 m DB-9

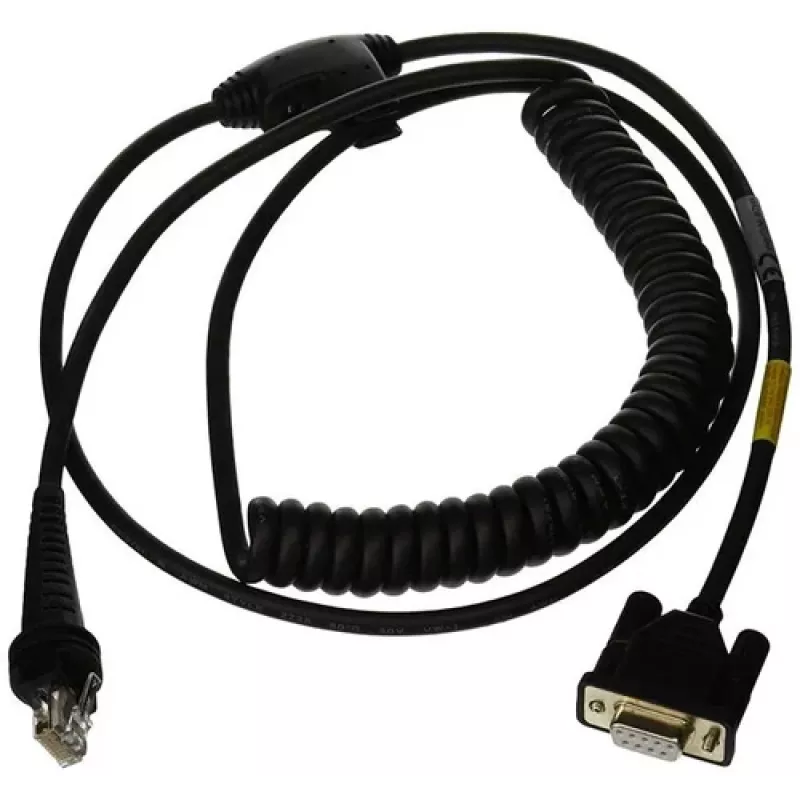

The Honeywell CBL-020-300-C00-02 is a 3 m black coiled RS232 serial cable with DB9 female connector and +5V TTL signal support. It includes a 5V Power-Link connector for external power and offers the option to use 5V host power on pin 9. The cable is compatible with multiple Honeywell scanners and imagers, including Genesis 7850g, Granit 1280i, 1910i, 1911i, 1980i, 1981i, Hyperion 1300g, Voyager 1200g/1202g/1250g/1400g/1450g, and Xenon 1900g/1902g/1950g. External power supply (EU 46-00526 or UK 46-00870) is required and sold separately.

Advantages

This serial cable provides reliable RS232 data transmission with +5V TTL signaling and a DB9 female connection. The 3 m length and coiled design offer flexibility and reach while reducing clutter. The 5V Power-Link connector allows external powering of devices when host power is unavailable, and the option to use pin 9 for 5V host power adds installation flexibility. Compatibility with a wide range of Honeywell scanners ensures straightforward integration into existing setups.

Suitable for

• Connecting Honeywell barcode scanners and imagers to RS232 serial ports
• Industrial and retail POS systems requiring stable serial communication
• Environments where external 5V power is needed via Power-Link connector
• Setups using host-powered devices via pin 9 when supported

Key specifications

• Length: 3 m (coiled)
• Connector: DB9 female (RS232)
• Signal level: +5V TTL
• Power: 5V Power-Link connector; optional 5V on pin 9
• Color: Black
• Compatible models: Genesis 7850g; Granit 1280i, 1910i, 1911i, 1980i, 1981i; Hyperion 1300g; Voyager 1200g, 1202g, 1250g, 1400g, 1450g; Xenon 1900g, 1902g, 1950g
• Brand: Honeywell
• Manufacturer part number (MPN): CBL-020-300-C00-02

How to use

Connect the DB9 female end of the cable to the host RS232 serial port and plug the other end into the compatible Honeywell scanner or imager. If the scanner requires external power, attach a compatible 5V power supply to the Power-Link connector (EU 46-00526 or UK 46-00870 sold separately). If host device supplies 5V on pin 9 and the scanner supports it, you may use the pin 9 option instead of an external power supply. Ensure connectors are secure before powering devices and configure serial port settings on the host as required by the scanner model.

Recommendations

Use the specified Honeywell power supplies when external power is required. Verify device compatibility and serial port settings (baud rate, parity, stop bits) according to the scanner’s manual. Avoid excessive bending or stretching of the cable to preserve the coiled design and ensure long service life.
