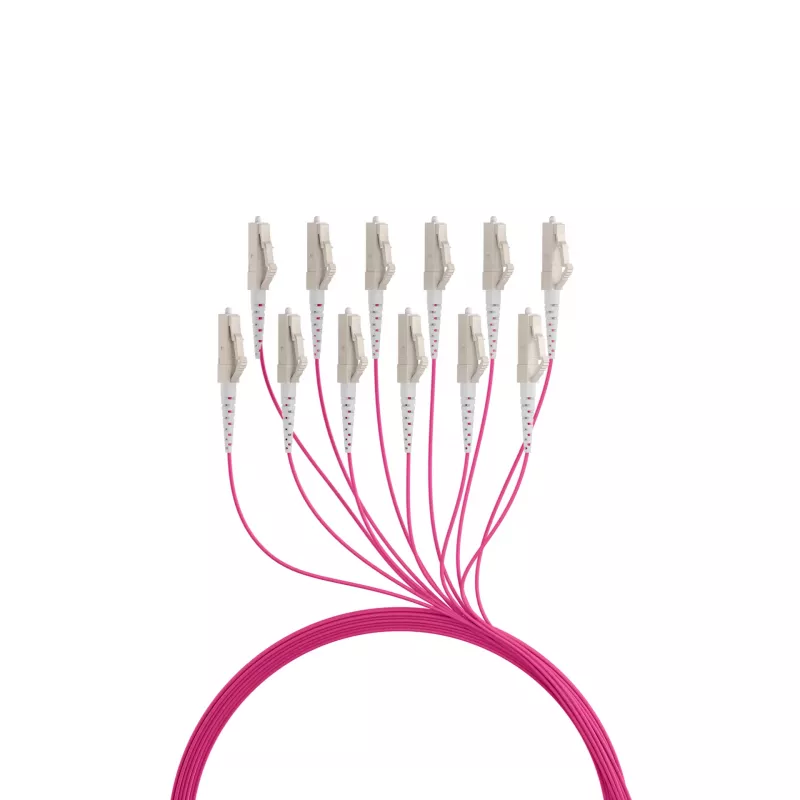

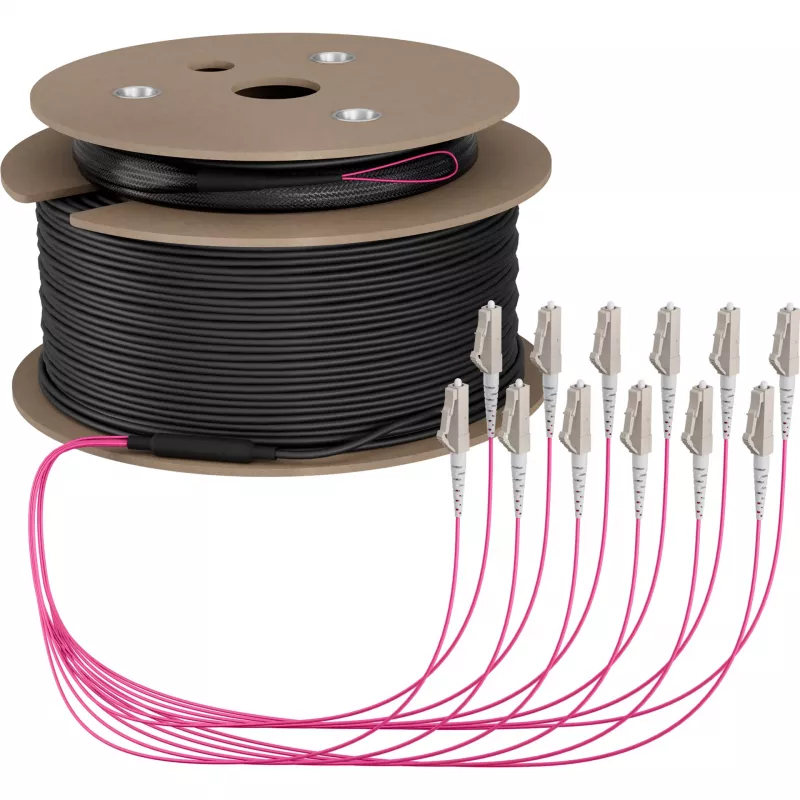

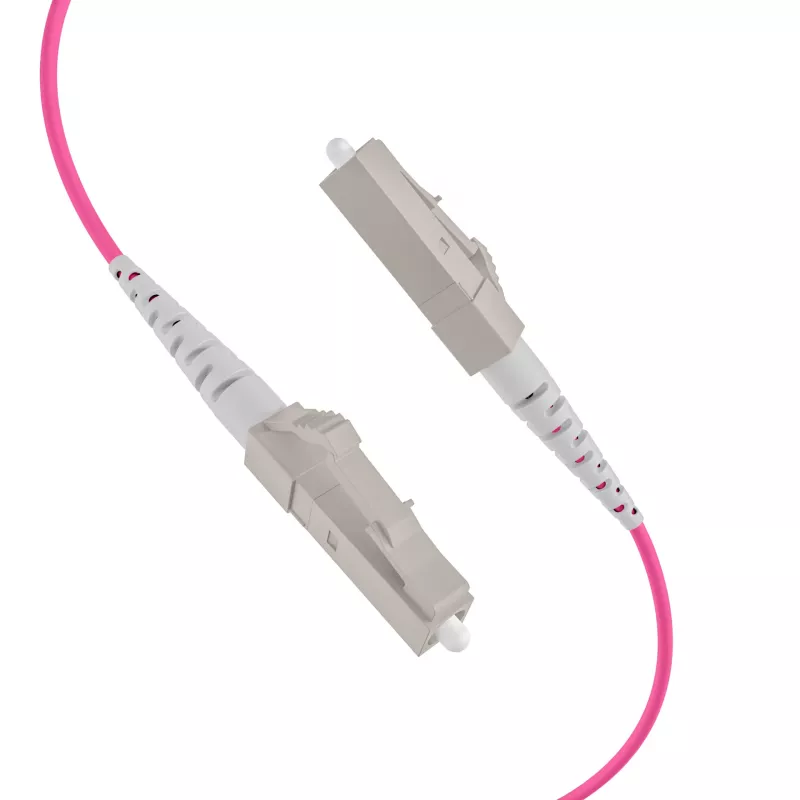

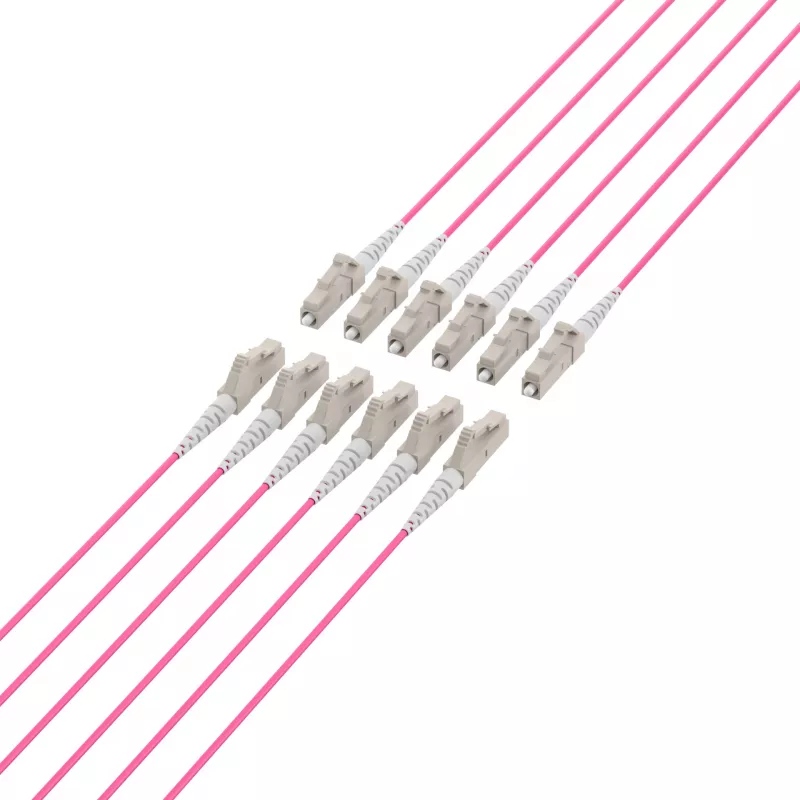

Cabo troncal EFB Elektronik U-DQ ZN BH OM4 12G 1x12 LC-LC 150m Dca LSZH - 150 m (O8342S150OM4)

This EFB trunk cable stands out with its 12-fiber OM4 multimode design and LC connectors, delivering high-bandwidth performance over 150 meters for data center and backbone applications. The universal distribution construction with non-metallic strain relief ensures flexibility and durability in high-density installations.

Highlights

• 12-fiber OM4 multimode trunk cable with LC connectors on both ends
• 150-meter length with LSZH jacket and Dca fire rating for safety
• Supports 850 nm and 1300 nm wavelengths with high modal bandwidth
• Universal distribution cable design with non-metallic strain relief

In daily use

Ideal for structured cabling in data centers, this cable provides reliable, high-speed connections for 10G, 40G, and 100G Ethernet applications. The LSZH jacket emits low smoke and zero halogen in case of fire, enhancing safety in populated areas. The Dca CPR rating ensures compliance with European fire safety regulations.

Full specifications

• Fiber Type: Multimode OM4
• Fiber Count: 12
• Connector Type: LC-LC
• Cable Length: 150 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• CPR Fire Rating: Dca
• Core/Cladding Diameter: 50/125 µm
• Wavelength Support: 850 nm / 1300 nm
• Modal Bandwidth (850nm): 4700 MHz·km
• Attenuation (850nm): ≤ 2.5 dB/km
• Attenuation (1300nm): ≤ 0.8 dB/km
• Cable Design: Universal Distribution Cable
• Strain Relief Element: Non-metallic

Final note

Engineered for performance and safety, this trunk cable is a solid choice for high-density fiber optic networks.
