Cabo Trunk de Fibra Ótica BlueOptics Compatível HPE P45700-001, MPO/APC para MPO/APC, OS2 Monomodo, 5 m, 12 fibras, LSZH, Amarelo

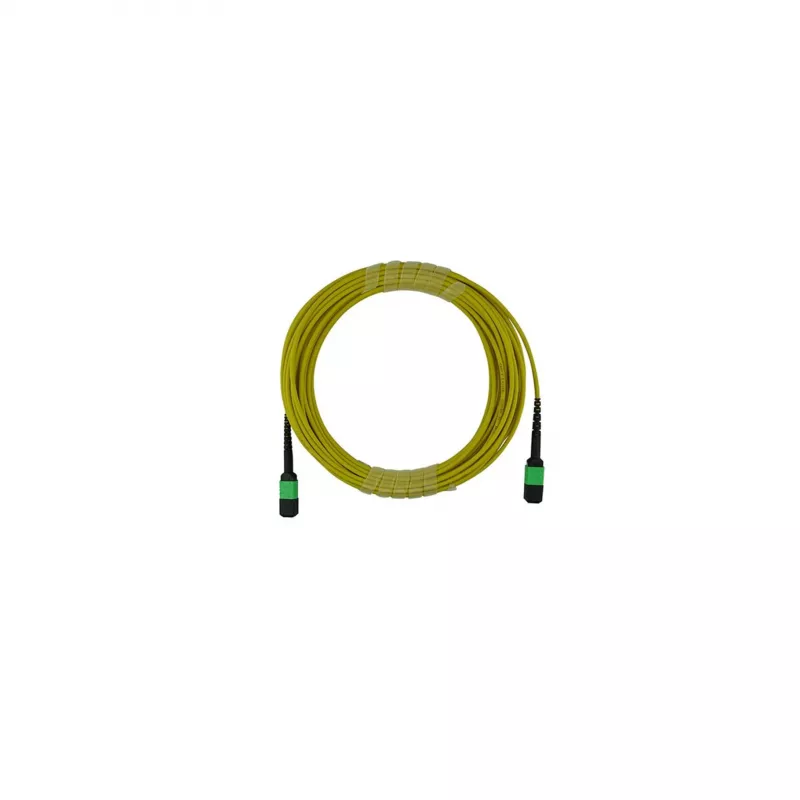

The BlueOptics P45700-001-BO is a high-performance fibre optic trunk cable designed as a compatible replacement for the HPE P45700-001. This cable features MPO/APC connectors on both ends, supporting 12-fibre single-mode OS2 transmission over a length of 5 metres. It is ideal for high-density data centre and enterprise network environments requiring reliable, low-loss connectivity.

Advantages

This trunk cable offers exceptional insertion loss (≤0.35 dB) and return loss (≥60 dB), ensuring minimal signal degradation and high data integrity. The LSZH jacket provides enhanced safety in confined spaces, reducing toxic smoke and halogen emissions in case of fire. The yellow jacket colour allows for easy identification of single-mode cabling.

Suitable for

• Data centres and server rooms
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• 100G/400G Ethernet applications
• High-speed fibre optic trunking

Key specifications

• Connector Type: MPO/APC to MPO/APC
• Fibre Type: Single-Mode OS2
• Number of Fibres: 12
• Cable Length: 5 metres
• Polarity: Type B (Cross-Over)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Insertion Loss: ≤0.35 dB
• Return Loss: ≥60 dB
• Operating Temperature: -20°C to 70°C
• Standards: IEC 61754-7, TIA/EIA-604-5, RoHS, CE

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible MPO/APC ports. This cable is a direct replacement for HPE P45700-001 and is fully compliant with industry standards. Pair with BlueOptics transceivers for guaranteed compatibility.
