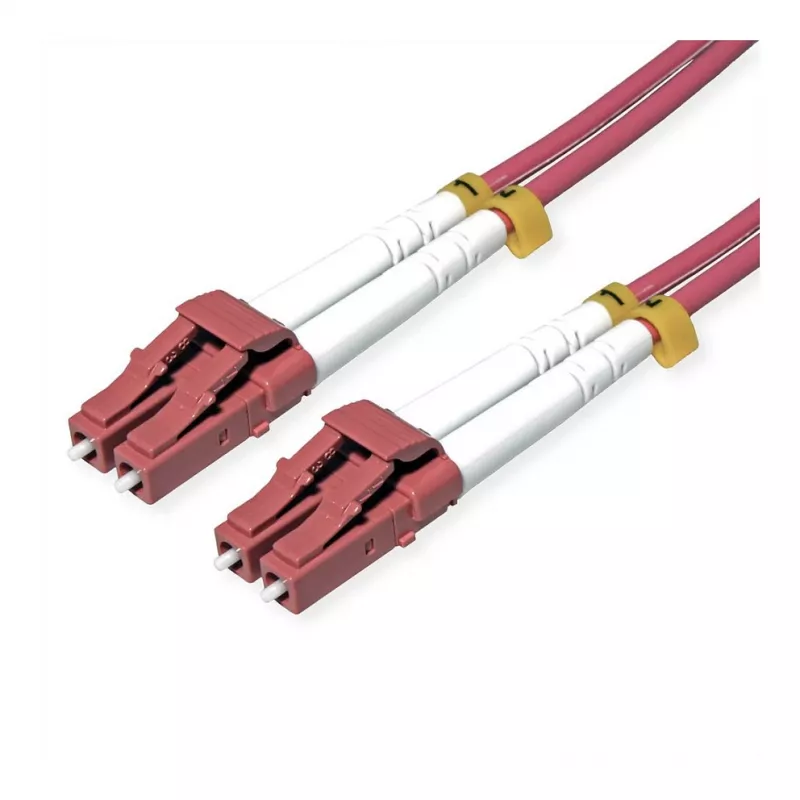

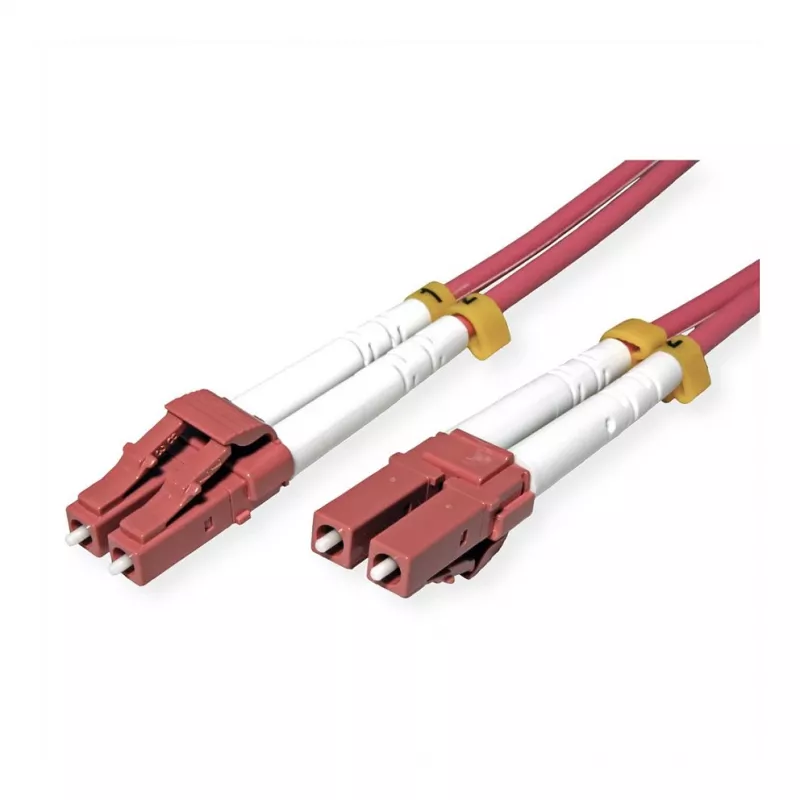

ROLINE Cabo de fibra ótica OM4 50/125µm LC/LC reforçado com aço LSOH violeta 7 m

The ROLINE fiber optic patch cable is a high-performance, steel-reinforced duplex multimode cable designed for reliable data transmission in demanding environments. With OM4 grade fiber and LC/LC connectors, it supports high-speed applications up to 100GbE. The LSOH jacket ensures safety in case of fire, making it ideal for use in offices, data centers, and industrial settings.

Advantages

Steel-reinforced construction provides excellent protection against physical damage and rodent bites. Low Smoke Zero Halogen (LSOH) jacket reduces toxic emissions and smoke in case of fire. OM4 fiber supports high bandwidth over long distances, ensuring future-proof network performance.

Suitable for

• Data center interconnects
• Enterprise network backbones
• High-speed storage area networks (SAN)
• Industrial Ethernet applications

Key specifications

• Fiber type: Multimode OM4
• Core/Cladding: 50/125 µm
• Connectors: LC Duplex to LC Duplex
• Cable length: 7 m
• Jacket material: LSOH, violet
• Steel-reinforced (armored)
• Insertion loss: < 0.3 dB typical
• Return loss: > 30 dB typical
• Attenuation: 2.3 dB/km @ 850nm, 0.6 dB/km @ 1300nm
• Modal bandwidth: 4700 MHz·km @ 850nm, 500 MHz·km @ 1300nm
• Operating temperature: -20°C to +70°C
• Standards: IEC 60793, TIA/EIA-568-C.3, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC duplex interfaces.
