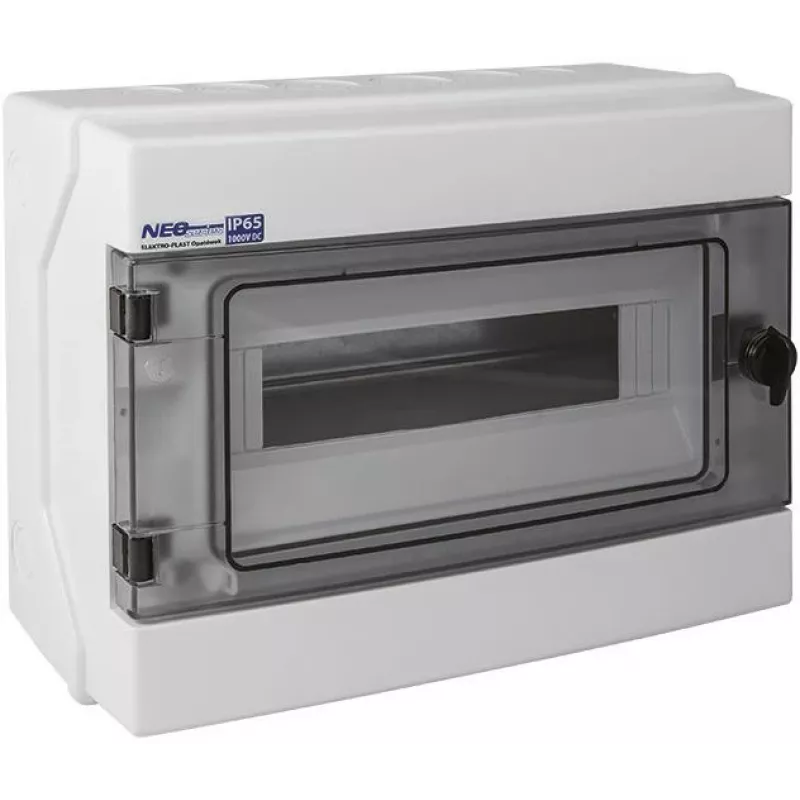

ELEKTRO-PLAST OPATÓWEK Caixa de Distribuição Modular Hermética 12 Módulos Sobrepor (N+PE) IP65 RH-12

The ELEKTRO-PLAST OPATÓWEK RH-12 is a high-quality hermetic modular distribution enclosure designed for reliable electrical distribution in demanding environments. With a 12-module capacity and surface-mounted design, it offers robust protection for electrical installations both indoors and outdoors.

Advantages

This enclosure features an IP65 rating, making it dust-tight and protected against water jets, ideal for harsh conditions. The transparent door allows easy visual inspection of components without opening the enclosure. It includes N+PE terminal blocks for neutral and protective earth connections, ensuring safety and compliance. The ABS material provides excellent impact resistance (IK08) and UV resistance for long-lasting durability.

Suitable for

• Industrial electrical distribution
• Outdoor power supply systems
• Commercial building installations
• Renewable energy applications (solar, wind)
• Infrastructure projects requiring high ingress protection

Key specifications

• Product Type: Modular Distribution Enclosure
• Mounting Type: Surface-mounted
• Number of Modules: 12
• Number of Rows: 1
• Ingress Protection: IP65
• Rated AC Voltage: 500V AC
• Rated DC Voltage: 1000V DC
• Enclosure Material: ABS
• Colour: Grey body, Transparent door
• Terminal Blocks: N+PE
• Door Type: Transparent, hinged
• Impact Resistance: IK08
• Operating Temperature: -25°C to +60°C
• Glow Wire Test: 650°C
• Insulation Class: Class II
• DIN Rail: Included (35mm standard)
• Cable Entry: Pre-marked knockouts
• Standards Compliance: EN 62208
• UV Resistance: Yes

Recommendations

For optimal performance, ensure proper cable gland selection for the pre-marked knockouts. This enclosure is suitable for both AC and DC applications up to 1000V DC, making it versatile for modern electrical systems.
