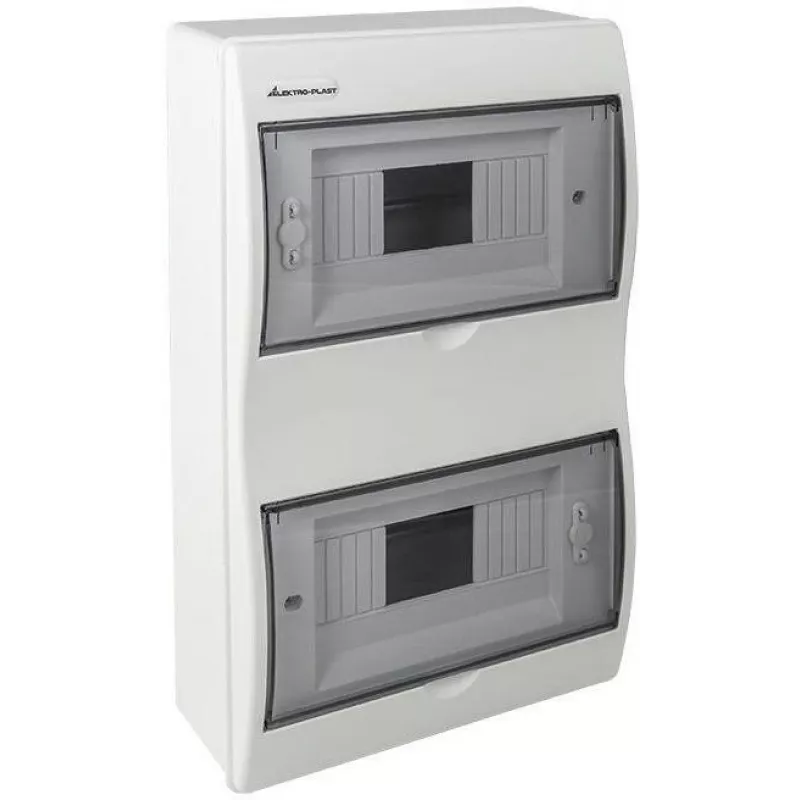

ELEKTRO-PLAST OPATÓWEK RN-16 Fala 7.4 Quadro de Distribuição de Sobrepor 16 Módulos IP40 Branco 403x238x95mm

The ELEKTRO-PLAST OPATÓWEK RN-16 Fala 7.4 is a high-quality surface-mounted distribution board designed for residential and light commercial electrical distribution. With 16 modules, IP40 protection, and a sleek white finish, it offers reliable and safe power distribution. The board includes neutral (N) and protective earth (PE) busbars, a transparent door, and a DIN rail for easy installation of modular devices.

Advantages

This distribution board combines durability with ease of use. The ABS plastic material ensures long-lasting performance, while the transparent door allows quick visual inspection of the installed devices. The IP40 rating protects against solid objects larger than 1mm, making it suitable for indoor environments. The included N and PE busbars simplify wiring and enhance safety.

Suitable for

• Residential electrical distribution
• Light commercial applications
• Installation of standard DIN rail modular devices

Key specifications

• Mounting Type: Surface-mounted
• Number of Modules: 16
• IP Protection Rating: IP40
• Color: White
• Terminals Included: Neutral (N) and Protective Earth (PE) busbars
• Material: ABS Plastic
• Door Type: Transparent
• Number of Rows: 1
• Series Name: Fala
• Application: Residential and light commercial electrical distribution
• Compatibility: Standard DIN rail modular devices
• DIN Rail: Included
• Cable Entry: Multiple knock-out cable entries
• Operating Temperature Range: -5°C to +40°C
• Glow Wire Test: 650°C

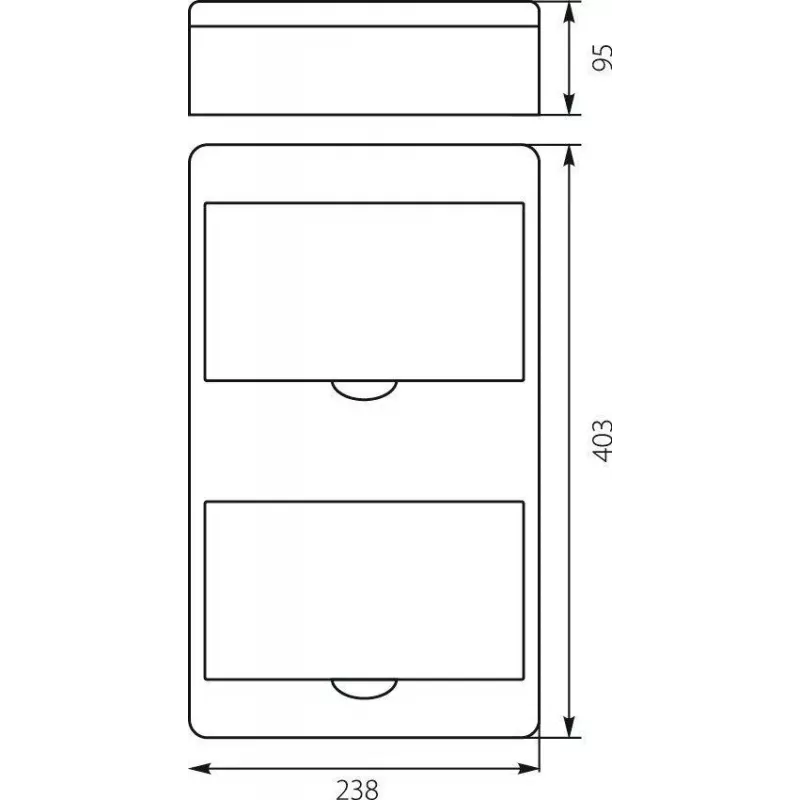

• Dimensions: 403 x 238 x 95 mm

Recommendations

For optimal performance, use with standard DIN rail circuit breakers and accessories. Ensure proper installation by a qualified electrician. This board is ideal for new constructions or renovations where a reliable and compact distribution solution is needed.
