ESYLUX RC 230i detetor de movimento passivo de infravermelhos (PIR) teto/parede 20m castanho IP54 2500 Lux 2,5m

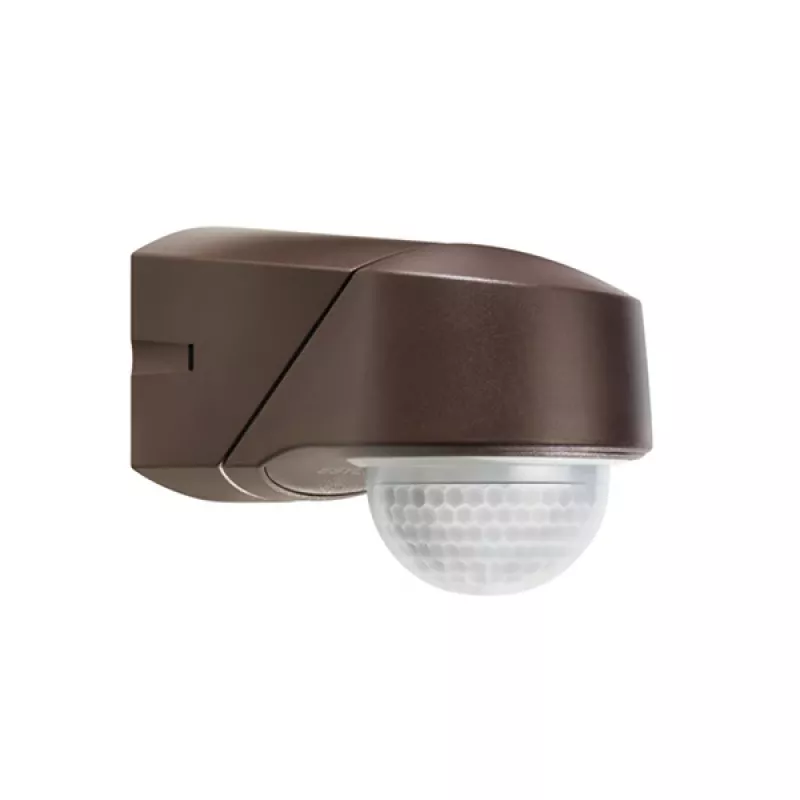

The ESYLUX RC 230i is a high-performance passive infrared (PIR) motion detector designed for reliable presence and movement detection in indoor and outdoor areas. With a detection range of 20 meters diameter at 2.5 m mounting height and a 360° detection angle, it is ideal for large rooms, corridors, and covered outdoor spaces. The device is surface-mounted on ceiling or wall and features an IP54 rating for protection against dust and water splashes. Its brown housing blends seamlessly with various environments.

Advantages

Energy-efficient lighting control with adjustable light sensor (5-2500 Lux) and time delay (10 s to 60 min). Robust UV-stabilised polycarbonate housing ensures long-lasting durability. Easy installation and configuration via potentiometers on the device, with optional remote control (RC-IR) for convenient adjustments.

Suitable for

• Office buildings and conference rooms
• Warehouses and storage areas
• Covered walkways and entrance areas
• Industrial facilities
• Public buildings

Key specifications

• Detection technology: Passive Infrared (PIR)
• Mounting type: Ceiling, Wall (surface-mounted)
• Colour: Brown
• IP rating: IP54
• Detection range (diameter): 20 m at 2.5 m mounting height
• Detection angle: 360°
• Recommended mounting height: 2.0 - 3.0 m
• Supply voltage: 230 V AC, 50 Hz
• Switching capacity (resistive load): 2300 W / 10 A
• Light sensor range: 5 - 2500 Lux (adjustable)
• Time delay: 10 s - 60 min (adjustable)
• Operating temperature: -25 °C to +50 °C
• Output type: Switching contact (relay)
• Standby power consumption: < 0.5 W
• Material: UV-stabilised polycarbonate
• Control options: Potentiometer on device, optional remote control (RC-IR)
• Number of channels: 1 (for lighting control)

Recommendations

For optimal performance, mount the detector at the recommended height of 2.0-3.0 m and avoid obstructions in the detection field. Use the optional remote control for easy parameter adjustments after installation.
