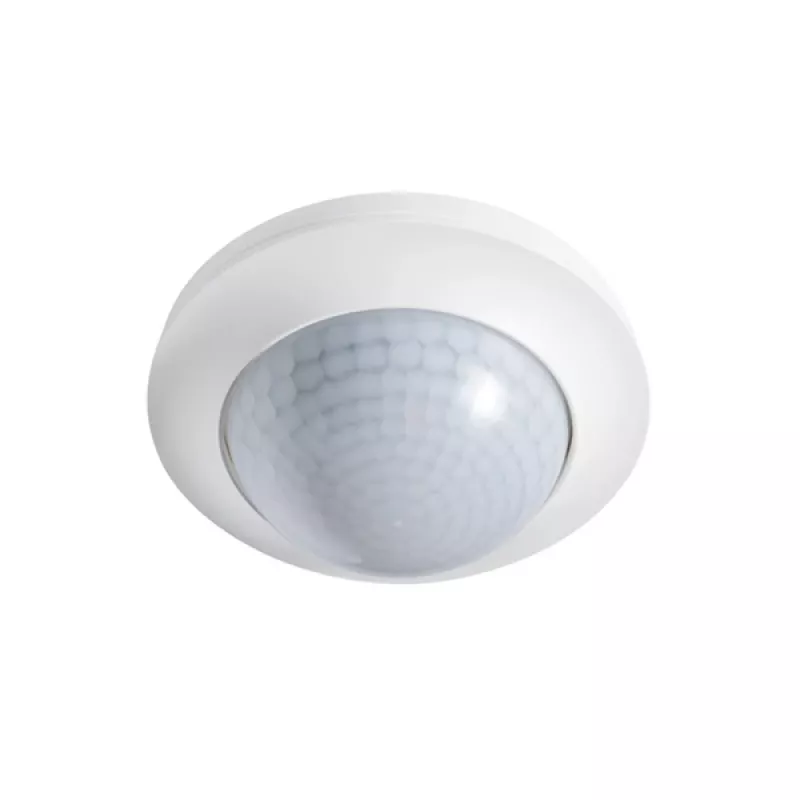

ESYLUX PD-C360/24 Slave sensor infravermelho passivo (PIR) - com fios - 24 m - teto - interior - branco

The ESYLUX PD-C360/24 Slave is a passive infrared (PIR) sensor designed to extend the detection area of a master sensor in a wired ceiling-mounted system. Ideal for indoor use, it provides 360° coverage with a detection diameter of up to 24 meters at a mounting height of 3 meters. The slave unit operates via a 2-wire bus connection, powered directly by the master unit, making it a seamless addition to larger security or lighting control installations.

Advantages

• Extends detection range without additional wiring complexity
• Low power consumption (<0.1 W) for energy-efficient operation
• UV-stabilised polycarbonate housing ensures durability and long life
• Simple flush-mount installation with only 24 mm depth required

Suitable for

• Large open-plan offices and commercial spaces
• Warehouses and industrial facilities
• Corridors and hallways requiring extended coverage
• Integration with ESYLUX master sensors for comprehensive area monitoring

Key specifications

• Sensor Type: Passive Infrared (PIR)
• Detection Angle: 360°
• Detection Range (Diameter): Up to 24 m (at 3 m mounting height)
• Mounting Type: Ceiling (flush or surface)
• Installation Location: Indoor
• Colour: White
• Protection Class: IP20
• Power Supply: Powered by Master Unit (2-wire bus connection)
• Recommended Mounting Height: 2.5 - 3.5 m
• Ambient Temperature: -25 °C to +50 °C
• Material: UV-stabilised polycarbonate
• Connection Type: Wired
• Max. Power Consumption: < 0.1 W
• Housing Diameter: 100 mm
• Installation Depth: 24 mm (for flush mounting)

Recommendations

For optimal performance, pair the PD-C360/24 Slave with a compatible ESYLUX master sensor. Ensure the mounting height is between 2.5 and 3.5 meters to achieve the specified detection range. This slave unit is not a standalone detector; it requires a master unit for power and control.
