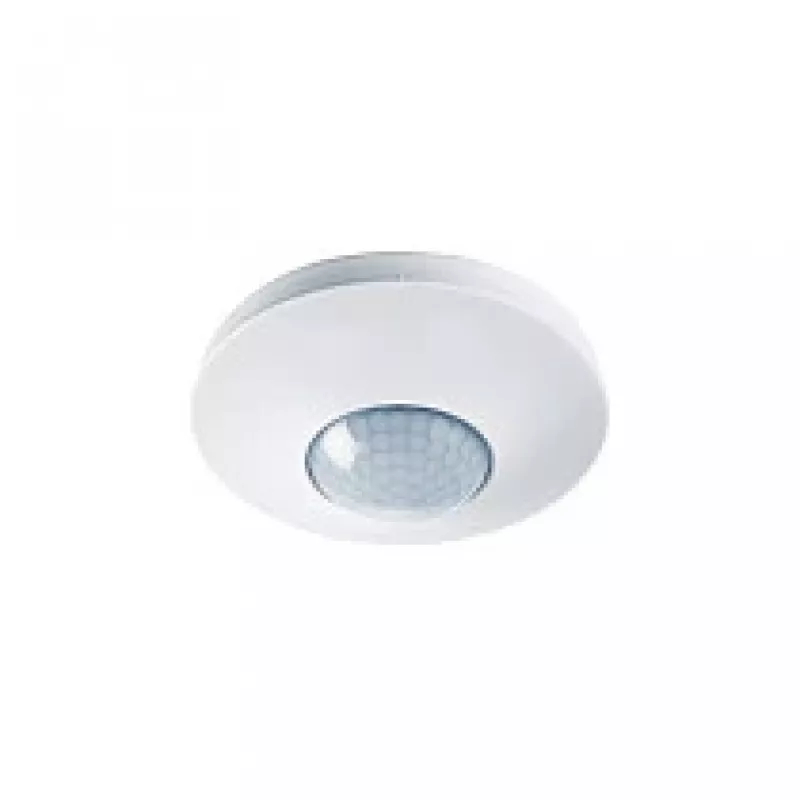

ESYLUX PD-C360i/8 Duo DALI sensor de teto infravermelho passivo (PIR) 8m branco

The ESYLUX PD-C360i/8 Duo DALI is a high-performance passive infrared (PIR) presence detector designed for ceiling mounting. It combines presence detection, constant light control, and HVAC control in a single device, making it ideal for energy-efficient lighting management in commercial and office environments.

Advantages

DALI-2 certified with two independent DALI channels (DALI-A and DALI-B) for flexible lighting control. Features a 360° detection angle with an 8 m diameter range at 3 m mounting height, covering approximately 50 m². Integrated light sensor with adjustable range from 10 to 2000 lux enables constant light control. Low power consumption (<0.5 W) and UV-stabilised polycarbonate housing ensure long-term reliability.

Suitable for

• Office spaces and meeting rooms
• Classrooms and lecture halls
• Corridors and stairwells
• Open-plan areas requiring presence-based lighting and HVAC control

Key specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range: 8 m diameter (at 3 m mounting height)
• Mounting type: Ceiling (flush-mounted)
• Control output: DALI-2 (Digital Addressable Lighting Interface)
• Number of DALI channels: 2 (DALI-A, DALI-B)
• Operating voltage: DALI bus voltage (typically 16V DC)
• Power consumption: <0.5 W
• Protection class: IP20
• Ambient temperature range: 0 °C to +50 °C
• Colour: White
• Recommended mounting height: 2.5 - 3.5 m (optimal 3 m)
• Light sensor range: 10 - 2000 lux
• Functions: Presence detection, constant light control, HVAC control
• Housing material: UV-stabilised polycarbonate
• Time delay: Adjustable (e.g., 30 sec - 30 min)
• Detection area (tangential): Approx. 50 m²
• DALI-2 certification: Yes

Recommendations

For optimal performance, mount at a height of 3 m and ensure clear line of sight to the detection area. Pair with DALI-2 compatible LED drivers and ballasts for seamless integration.
