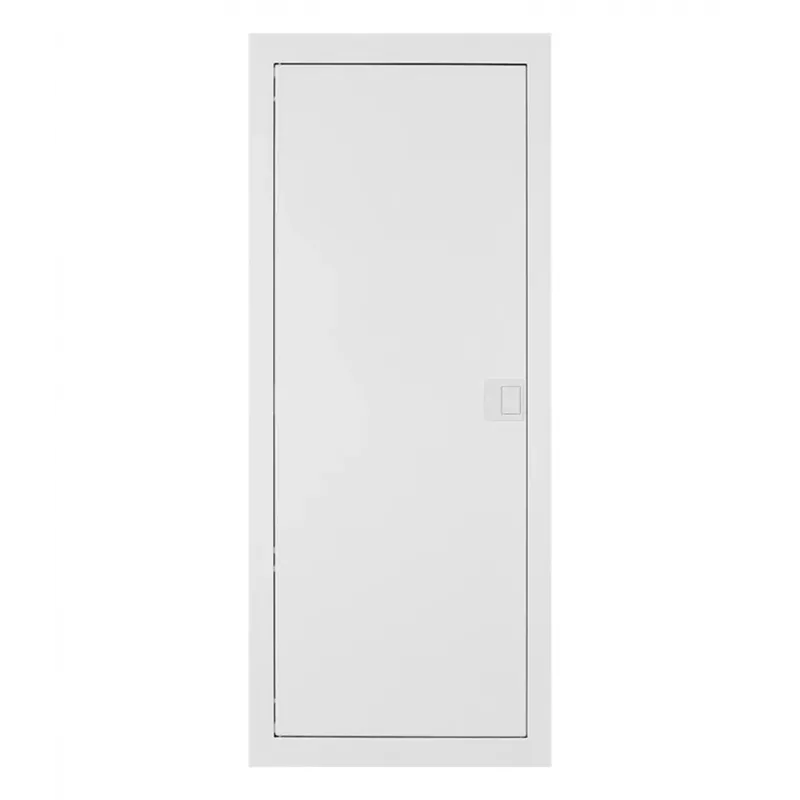

Quadro elétrico MSF SWITCHGEAR RP 5X 12 PE+N IP 30 branco

The MSF SWITCHGEAR RP 5X 12 PE+N IP 30 WHITE is a high-quality surface-mounted distribution board designed for indoor electrical distribution. It features 5 rows with 12 modules each, providing a total of 60 modules for accommodating various circuit breakers and accessories. The enclosure is made of durable ABS plastic in white (RAL 9003) and includes pre-installed PE and N busbars for easy wiring. With an IP30 rating and IK07 impact resistance, it offers reliable protection in residential and commercial environments.

Advantages

This distribution board offers ample space for up to 60 modules, making it suitable for medium to large electrical installations. The transparent smoked plastic door allows for easy visual inspection of the components while maintaining a clean appearance. The screw-fixed mounting method ensures secure installation on walls or other surfaces. Compliance with PN-EN 60439-1 and PN-EN 60670-24 standards guarantees safety and performance.

Suitable for

• Indoor electrical distribution in residential buildings
• Commercial and light industrial applications
• Installations requiring up to 63A rated current and 230/400V AC voltage

Key specifications

• Installation Type: Surface-mounted
• Number of Modules: 60 (5 rows x 12 modules)
• Ingress Protection: IP30
• Material: ABS Plastic
• Color: White (RAL 9003)
• Included Terminals: PE and N busbars
• Rated Voltage: 230/400V AC
• Rated Current: Up to 63A
• Door Type: Transparent, Smoked Plastic
• Impact Resistance: IK07
• Glow Wire Test: 650°C
• Operating Temperature: -5°C to +40°C
• Standards: PN-EN 60439-1, PN-EN 60670-24
• Mounting Method: Screw-fixed

Recommendations

For optimal performance, ensure that the distribution board is installed by a qualified electrician and that all connected circuits comply with local electrical regulations. The board is designed for indoor use only and should be protected from moisture and extreme temperatures.
