Cabo Trunk de Fibra Ótica BlueOptics Compatível HPE P45704-001 MPO/APC para MPO/APC Monomodo OS2, 30 m, Amarelo

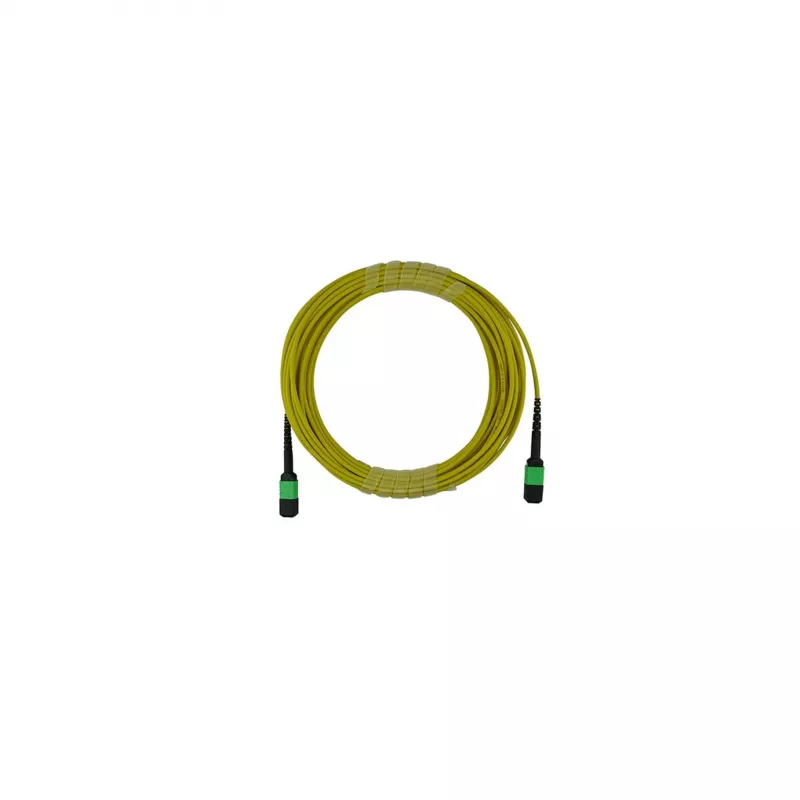

The BlueOptics Compatible HPE P45704-001 fibre optic trunk cable is a high-performance, single-mode OS2 cable designed for demanding data center, SAN, LAN, and telecommunication applications. With MPO/APC connectors on both ends and a length of 30 metres, this cable ensures reliable, low-loss connectivity for high-speed networks.

Advantages

Ultra Low Loss (ULL) performance ensures minimal signal attenuation, while the LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces. The Type B polarity and 12-fibre count make it ideal for parallel optics and high-density patching.

Suitable for

• Data center backbone cabling
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Telecommunication infrastructure
• High-speed fibre optic trunking

Key specifications

• Product Type: Fibre Optic Trunk Cable
• Connector Type: MPO/APC to MPO/APC
• Fibre Type: Single-Mode (OS2)
• Fibre Count: 12 Fibres
• Cable Length: 30 metres
• Polarity: Type B
• Insertion Loss: Ultra Low Loss (ULL)
• Return Loss: >60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Compatibility: HPE P45704-001
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Standards Compliance: RoHS, CE, ISO 9001

Recommendations

For optimal performance, ensure proper handling and installation of MPO connectors. Use with compatible HPE or standard MPO patch panels and transceivers.
