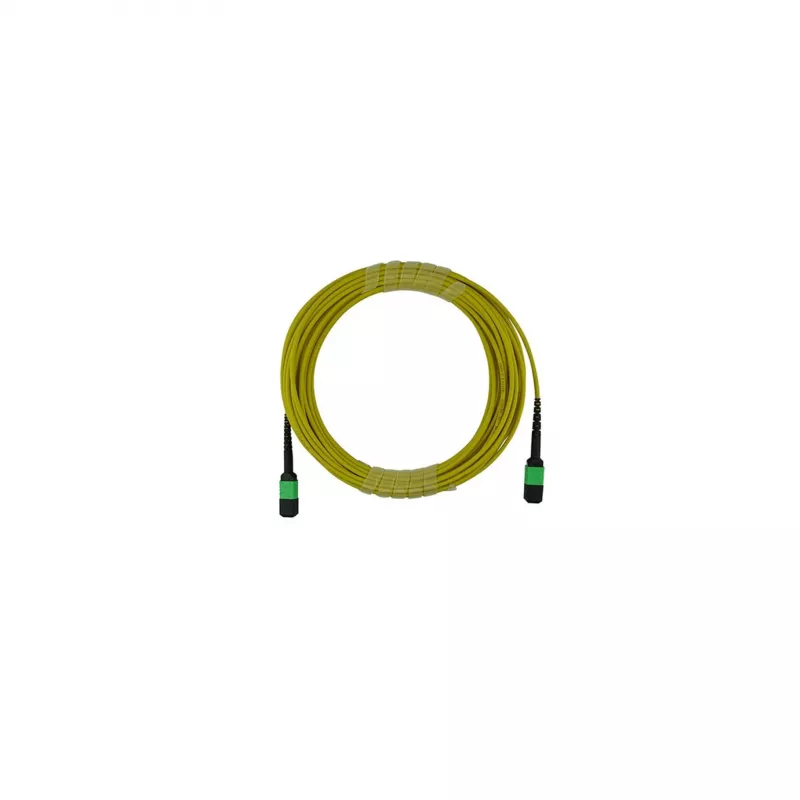

Cabo Trunk de Fibra Ótica BlueOptics Compatível HPE P45731-B26, MPO/APC para MPO/APC, Monomodo OS2, 12 fibras, 30 m, Amarelo

This BlueOptics fibre optic trunk cable is a high-performance, compatible alternative to the HPE P45731-B26. Designed for data centers and high-density networking environments, it features MPO/APC connectors on both ends with 12 fibres, ensuring reliable and efficient single-mode transmission over 30 metres.

Advantages

Cost-effective compatible solution with premium specifications. Low insertion loss (≤0.35 dB) and high return loss (≥60 dB) ensure excellent signal integrity. LSZH jacket provides safety in confined spaces.

Suitable for

• Data center backbone cabling
• High-density fibre optic networks
• Storage Area Networks (SAN)
• Local Area Networks (LAN)

Key specifications

• Cable Type: Fibre Optic Trunk Cable
• Fibre Type: Single-Mode (OS2)
• Connector A: MPO/APC (Male)
• Connector B: MPO/APC (Male)
• Fibre Count: 12 Fibers
• Cable Length: 30 metres
• Polarity: Type B (Cross-Over)
• Insertion Loss: ≤ 0.35 dB
• Return Loss: ≥ 60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Wavelength: 1310nm / 1550nm
• Operating Temperature: -20°C to +70°C
• Standards: IEC 61754-7, TIA/EIA-604-5, RoHS
• Ferrule Polish: APC
• Cable Diameter: 3.0 mm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km

Recommendations

Ensure your network equipment supports MPO/APC connectors and single-mode OS2 fibre for optimal performance. This cable is polarity Type B, suitable for cross-over applications.
