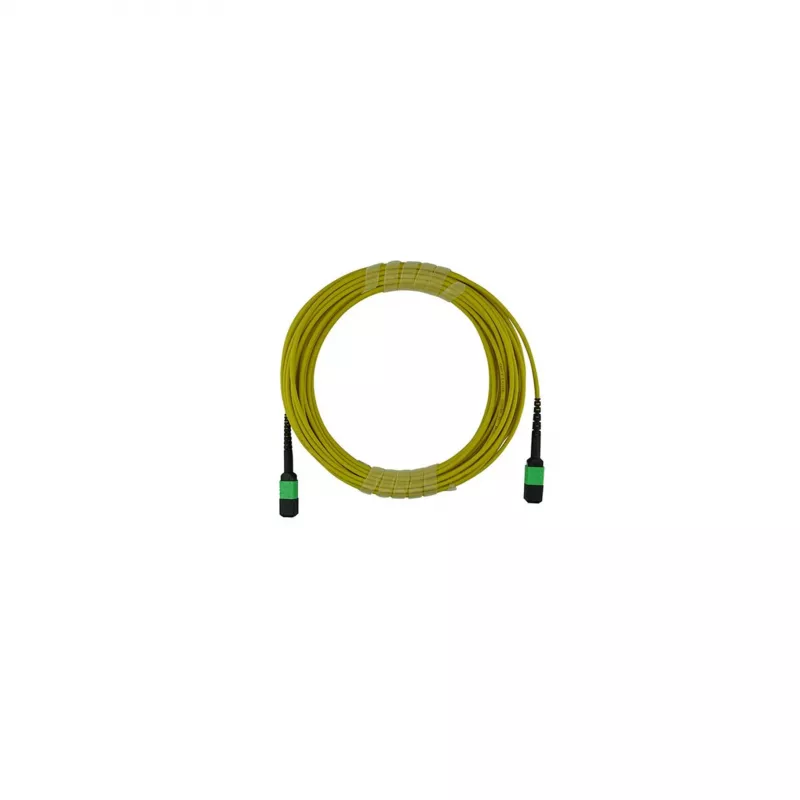

Cabo Trunk de Fibra Ótica BlueOptics Compatível NVIDIA 980-9I58D-00N010, MPO/APC para MPO/APC, OS2 Monomodo, 12 fibras, 10 m, Amarelo

The BlueOptics compatible NVIDIA 980-9I58D-00N010 fibre optic trunk cable is a high-performance MPO/APC to MPO/APC patch cable designed for data centres and high-speed networking environments. This OS2 single-mode cable features 12 fibres with Type B polarity, ensuring reliable cross-over connections for 40G/100G Ethernet, InfiniBand, and Fibre Channel applications.

Advantages

This trunk cable offers low insertion loss (max 0.35 dB) and high return loss (min 60 dB), providing excellent signal integrity. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in confined spaces, while the yellow colour ensures easy identification. It is fully compatible with NVIDIA 980-9I58D-00N010 equipment.

Suitable for

• Data centre interconnects
• High-speed networking (40G/100G Ethernet)
• InfiniBand and Fibre Channel systems
• Telecommunications and enterprise networks

Key specifications

• Cable Type: Fibre Optic Trunk Cable
• Connector A: MPO/APC (Male)
• Connector B: MPO/APC (Male)
• Cable Length: 10 meters (32.8 ft)
• Fibre Type: OS2 Single-mode
• Fibre Count: 12 Fibres
• Polarity: Type B (Cross-over)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Insertion Loss (Max): 0.35 dB
• Return Loss (Min): 60 dB
• Compatibility: NVIDIA 980-9I58D-00N010
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Cable Diameter: 3.0 mm
• Standards Compliance: IEC 61754-7, TIA/EIA-604-5, RoHS Compliant
• Wavelength: 1310nm / 1550nm
• Attenuation @ 1310nm: 0.35 dB/km
• Attenuation @ 1550nm: 0.25 dB/km

Recommendations

For optimal performance, ensure proper handling and storage within specified temperature ranges. This cable is ideal for high-density patching in data centres where space and performance are critical.
