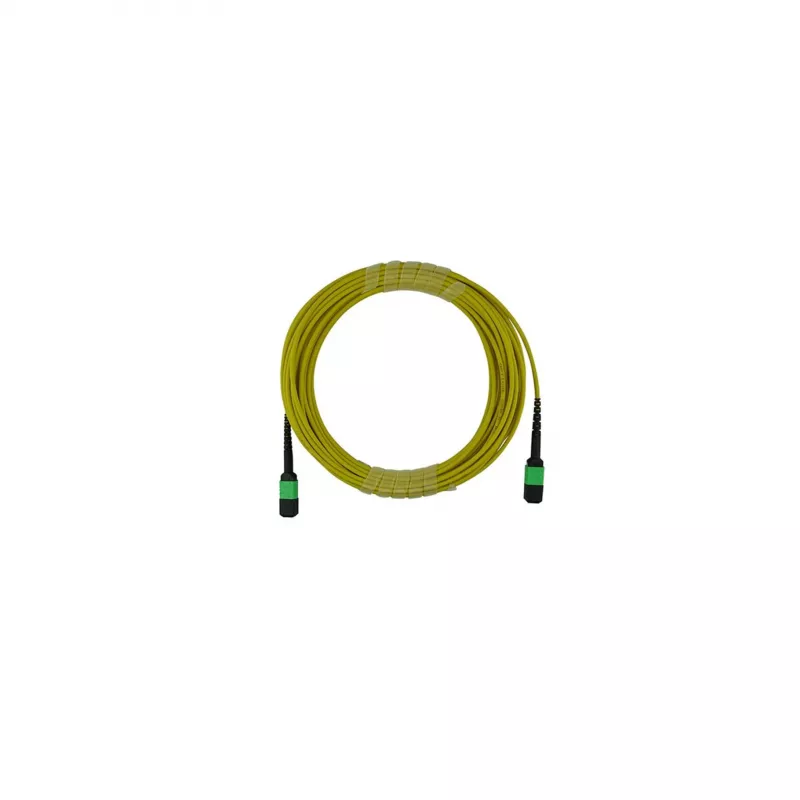

Cabo Trunk de Fibra Ótica BlueOptics Compatível NVIDIA 980-9I58F-00N020 MPO/APC para MPO/APC Monomodo OS2, 20 metros

The BlueOptics fibre optic trunk cable is a high-performance, compatible alternative to the NVIDIA 980-9I58F-00N020. Designed for data centres and high-density networking environments, this MPO/APC to MPO/APC single-mode OS2 cable delivers reliable, low-loss connectivity for demanding applications.

Advantages

This trunk cable offers exceptional signal integrity with low insertion loss (0.35 dB max per connector) and high return loss (60 dB min). The LSZH jacket ensures safety in confined spaces, while the 12-fibre configuration supports high-bandwidth applications. Polarity Type B (cross-over) is ideal for parallel optics transceivers.

Suitable for

• Data centre backbone cabling
• High-density fibre optic networks
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• NVIDIA networking equipment requiring MPO/APC interfaces

Key specifications

• Cable Type: Fibre Optic Trunk Cable
• Connector Type A: MPO/APC (Male)
• Connector Type B: MPO/APC (Male)
• Cable Length: 20 Metres
• Fibre Type: Single-mode (OS2)
• Number of Fibres: 12
• Polarity: Type B (Cross-over)
• Insertion Loss (Max): 0.35 dB per connector
• Return Loss (Min): 60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Fibre Core/Cladding: 9/125 µm
• Attenuation @ 1310nm: 0.35 dB/km
• Attenuation @ 1550nm: 0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Compatibility Reference: NVIDIA 980-9I58F-00N020
• Standard Compliance: IEC 61754-7, TIA/EIA-604-5, RoHS, CE
• Connector Ferrule Material: Zirconia Ceramic

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible MPO/APC ports. This cable is polarity Type B, which is commonly used for parallel optics applications. Verify your network equipment's polarity requirements before installation.
