Cabo trunk U-DQ ZN BH OM4 8G 1x8 LC-LC EFB Elektronik 90 m Dca LSZH - 90 m O8322S90OM4

With a bandwidth of 4700 MHz·km at 850 nm, this 90 m OM4 trunk cable delivers high-speed multimode performance for data center and backbone cabling.

Overview

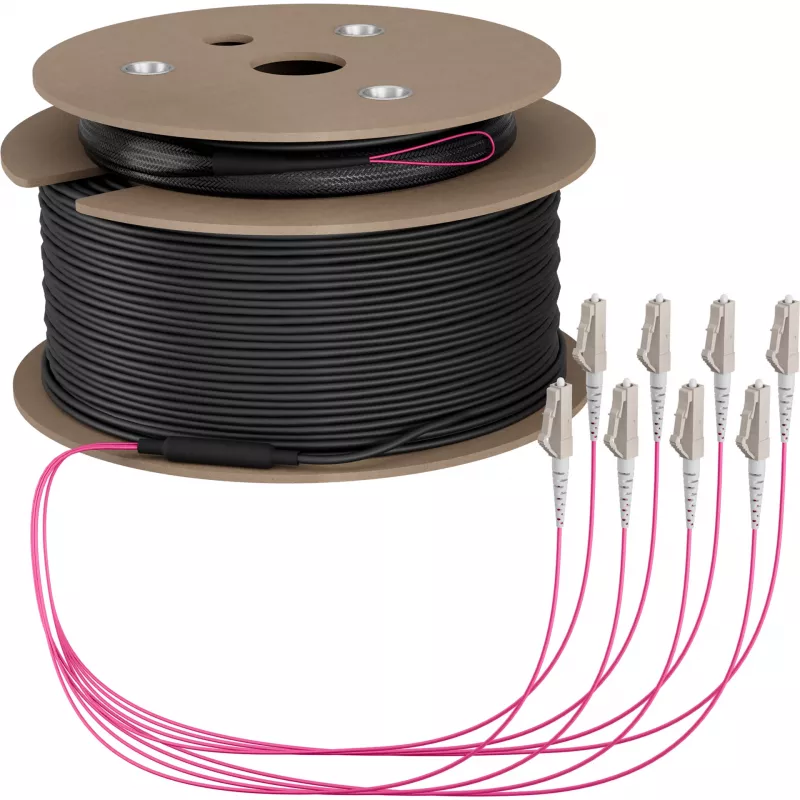

The EFB Elektronik Trunk Cable U-DQ ZN BH OM4 is a pre-terminated fiber optic cable featuring 8 multimode OM4 fibers in a 1x8 construction. It is terminated with LC connectors on both ends and comes in a 90 m length. The cable has a low smoke zero halogen (LSZH) jacket and meets the Dca fire rating under the Construction Products Regulation (CPR).

What stands out

• OM4 multimode fiber supports 4700 MHz·km at 850 nm for high-speed data transmission.
• 8 fibers in a single tube (1x8) provide efficient connectivity for parallel optics.

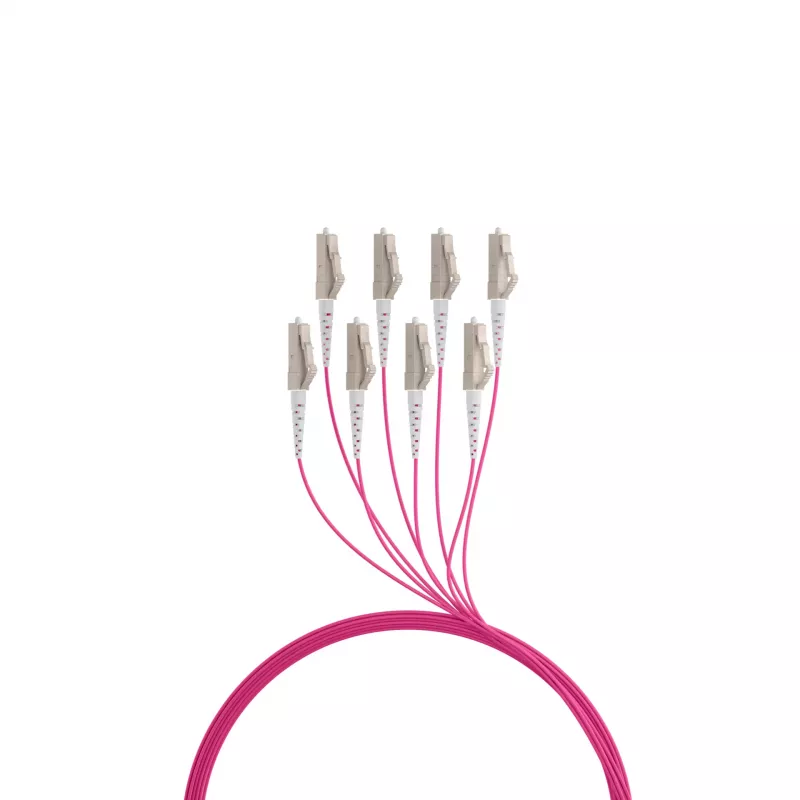

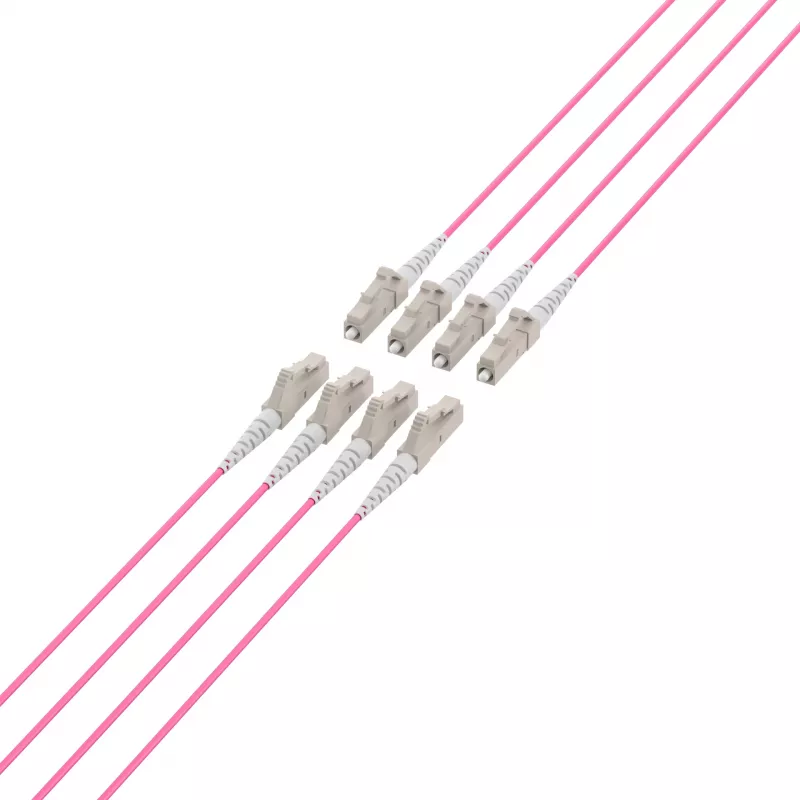

• LC connectors on both ends ensure compatibility with standard fiber optic equipment.
• LSZH jacket reduces toxic smoke and halogen emissions in case of fire.
• Dca CPR rating confirms compliance with European fire safety standards.

Technical details

• Fiber type: Multimode OM4, 50/125 µm core/cladding diameter.
• Number of fibers: 8.
• Cable construction: 1x8 (1 tube, 8 fibers).

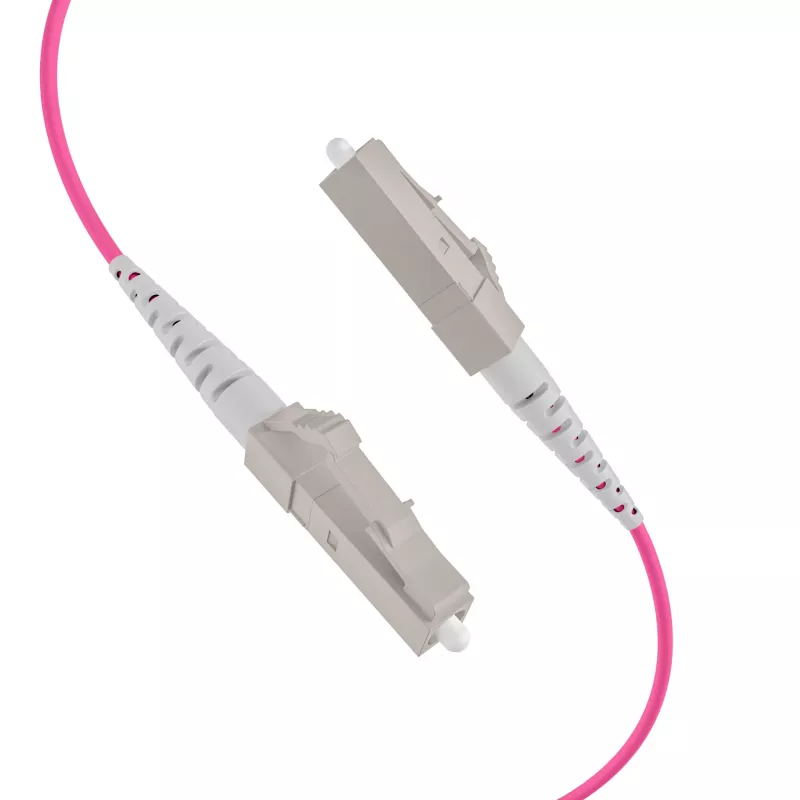

• Connector type: LC on both ends.
• Length: 90 m.
• Jacket material: LSZH (Low Smoke Zero Halogen).
• Fire rating (CPR): Dca.
• Cable designation: U-DQ ZN BH.
• Bandwidth: 4700 MHz·km at 850 nm, 500 MHz·km at 1300 nm.
• Attenuation: ≤ 2.5 dB/km at 850 nm, ≤ 0.8 dB/km at 1300 nm.
• Application: Data center, LAN, backbone cabling.
• Standards compliance: IEC 60794-2, EN 50575 (CPR).

Our verdict

A reliable pre-terminated OM4 trunk cable for high-density fiber installations, offering excellent bandwidth and fire safety.
