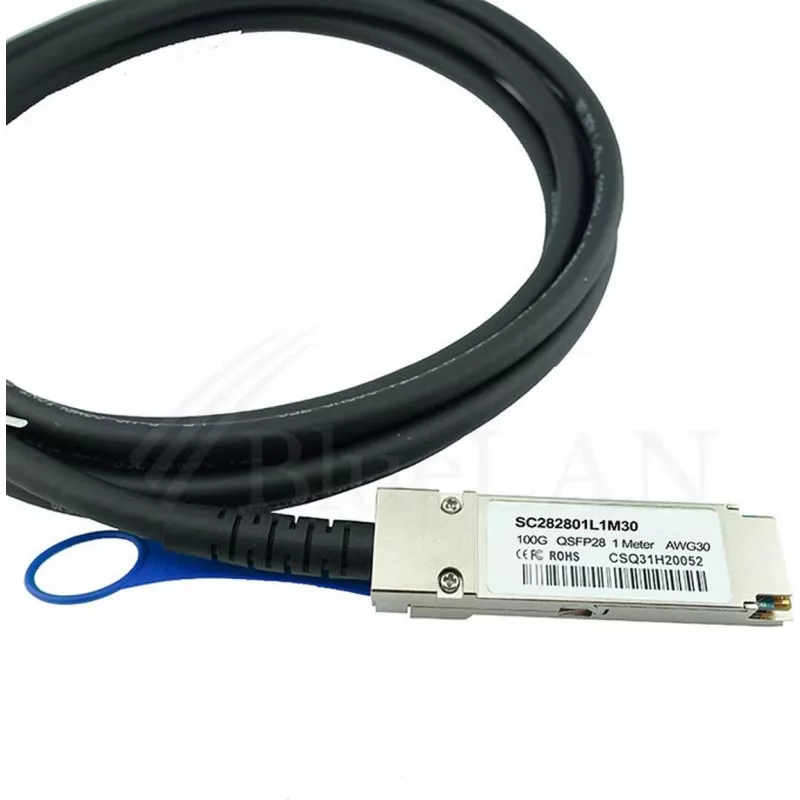

Cabo twinax de cobre passivo BlueOptics Extreme Networks AA1405029-E6 BlueLAN DAC QSFP28 100GBASE-CR4 Infiniband EDR 30AWG 1m compatível

The BlueOptics AA1405029-E6-BL is a high-performance, passive Direct Attach Copper (DAC) cable designed for seamless compatibility with Extreme Networks equipment. It provides a cost-effective, low-latency interconnect solution for data centers and high-performance computing environments, supporting 100 Gigabit Ethernet (100GBASE-CR4) and InfiniBand EDR standards.

Advantages

This DAC cable offers reliable, energy-efficient connectivity with zero power consumption, eliminating the need for transceivers. Its 30 AWG twinax copper construction ensures excellent signal integrity over 1 meter, while the QSFP28 form factor supports hot-swappable installation. Fully compliant with SFF-8665 MSA, it guarantees interoperability and performance.

Suitable for

• Data center top-of-rack and end-of-row connections
• High-speed server and storage interconnects
• InfiniBand EDR clusters
• 100GbE network infrastructure

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• InfiniBand Standard: EDR
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• Cable Material: Twinax Copper
• Cable Type: Passive
• Compatibility: Extreme Networks AA1405029-E6
• Form Factor: QSFP28
• Hot-Swappable: Yes
• MSA Compliance: SFF-8665
• Operating Temperature: 0°C to 70°C
• Voltage Supply: 3.3V

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 ports and 100GBASE-CR4 or InfiniBand EDR. This cable is ideal for short-reach, high-bandwidth links within racks or between adjacent racks.
