Cabo USB DeLOCK 85326 USB 3.2 Gen 2 0,45 m USB A USB C preto

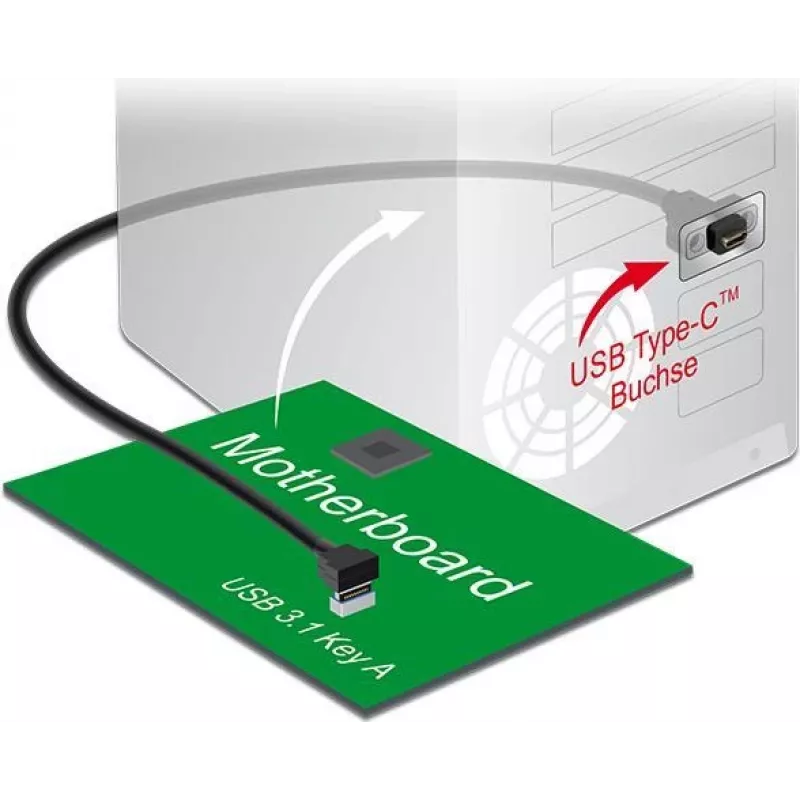

This Delock cable connects the internal USB 3.1 Gen 2 (USB 3.2 Gen 2) Type-A header on a motherboard or PCIe card to an external USB Type-C™ receptacle. The cable is 0.45 m long, features a male USB A plug on one end and a screw-mountable USB Type-C connector on the other, and is offered in black.

Advantages

The USB cable supports USB 3.2 Gen 2 (also referred to as USB 3.1 Gen 2) with transfer speeds up to 10 Gbit/s. The screw-mountable USB-C connector allows secure attachment to a slot bracket or chassis with a compatible recess, enabling the installation of an externally accessible USB-C port. The male-to-male design ensures direct connection between an internal header or PCIe adapter and an external device.

Suitable for (tasks / use cases)

• Extending an internal USB Type-A header to an accessible USB-C port
• Installing an external USB-C port on a PC chassis or slot bracket
• Connecting a motherboard or PCIe card USB header to external devices supporting USB 3.2 Gen 2

Key specifications

• Connector 1: USB A (internal header/male)
• Connector 2: USB Type-C™ (screw-mountable/male)
• USB version: USB 3.2 Gen 2 (USB 3.1 Gen 2)
• Maximum data transfer rate: 10 Gbit/s
• Cable length: 0.45 m
• Colour: Black

How to use

Connect the USB A end to the internal USB 3.1 Gen 2 header on the motherboard or to the compatible header on a PCIe USB adapter. Position the screw-mountable USB-C connector in the slot bracket or chassis recess and secure it with screws to provide a stable external USB-C port. Once secured, connect external USB-C devices as needed.

Recommendations

Use with compatible internal USB 3.1 Gen 2 headers or PCIe cards and ensure the chassis or bracket has a matching cutout and mounting holes for the screw-mountable USB-C connector. For maximum performance, use with devices and hosts that support USB 3.2 Gen 2.
