Cabo USB DeLOCK pinheader 4-Pin / 5-Pin fêmea para fêmea 100 cm

DELOCK USB Pinheader 4-pin / 5-pin Socket-to-Socket 100 cm is an internal connector cable designed to bridge USB pinheader ports inside desktop systems. The cable features two socket ends that accept either 4-pin or 5-pin pinheader layouts, offering a flexible solution for connecting motherboard USB headers, front-panel USB ports, or internal USB extension adapters. At 100 cm length, it provides enough reach for typical tower and small-form-factor cases while keeping routing tidy.

Advantages

The cable supports both 4-pin and 5-pin header configurations without additional adapters, simplifying compatibility with a range of motherboards and expansion devices. Its socket-to-socket construction allows direct connection between internal components and is suitable for compact internal routing. The 100 cm length balances flexibility and cable management, and the standard USB pinout ensures consistent signal mapping for USB data and power lines.

Suitable for

• Connecting motherboard USB headers to front-panel USB modules
• Extending internal USB connections to adapters or hubs
• System assembly, upgrades and repairs requiring short internal USB wiring
• Small-form-factor or tower PC builds where neat cable routing is important

Key specifications

• Cable type: internal socket-to-socket USB pinheader cable

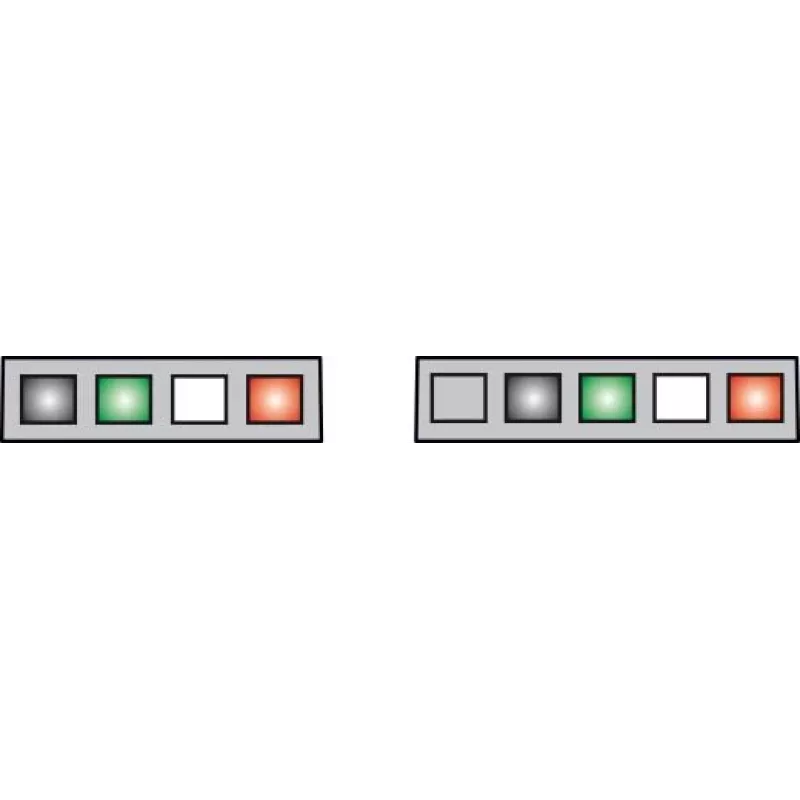

• Connector compatibility: 4-pin and 5-pin USB pinheader layouts
• Length: 100 cm
• Usage: internal PC connection for USB data and power lines
• Construction: flexible insulated wires with plastic pinheader sockets

How to use

Identify the motherboard USB header and the internal device or front-panel module that requires connection. Align the socket end of the cable with the pinheader, ensuring correct orientation of the keying or missing pin position if present. Gently press the socket onto the header until fully seated. Route the cable to avoid obstructing fans or moving components and secure it with cable ties if necessary. If connecting a 4-pin device to a 5-pin header, confirm which pin is unused and match the orientation accordingly.

Recommendations

Use the cable only for internal PC connections and avoid exposing it to sharp edges or high temperatures. For reliable operation, ensure secure seating on headers and avoid excessive bending at the connector ends. If the motherboard or device documentation specifies pin orientation or power mapping, follow those instructions to prevent misconnection.
