Cabo USB DeLOCK USB Type-E Key A 20 pinos macho para USB Type-C fêmea 50 cm

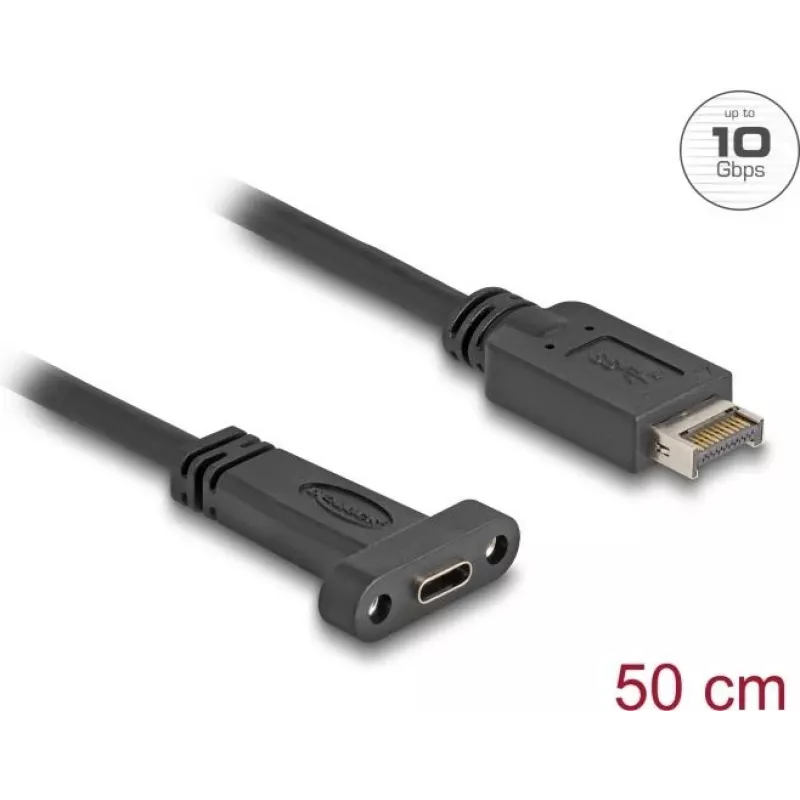

This DeLOCK cable connects an internal USB 10 Gbps Type-E Key A 20-pin header on a motherboard or PCI Express card to a panel-mount USB Type-C female connector. The Type-C connector can be secured to a slot bracket or chassis with two screws, allowing a USB port to be moved to an easily accessible external position. The cable supports USB 3.2 Gen 2 (formerly USB 3.1 Gen 2) data rates up to 10 Gbps and is black with a 50 cm length.

Advantages

The cable provides a direct internal connection from a USB Type-E (20 pin) header to a panel-mount USB Type-C female port, simplifying installation of an external USB-C port. It supports high-speed USB 3.2 Gen 2 transfers up to 10 Gbps and includes mounting holes for secure attachment to a bracket or chassis. The 0.5 m length balances reach and cable management inside a PC case.

Suitable for

• Extending an internal USB 3.2 Gen 2 header to an external USB Type-C port
• Adding a front- or rear-panel USB-C connector using a slot bracket or chassis cutout
• Connecting external USB-C devices where the motherboard or card provides a Type-E Key A header

Key specifications

• Brand: DELOCK
• Model / MPN: 85526
• EAN: 4043619855261
• Connector 1: USB Type-E (20 pin) male
• Connector 2: USB Type-C female (panel-mount, screwable)
• USB version: USB 3.2 Gen 2 (up to 10 Gbps)
• Cable length: 0.5 m
• Colour: Black

How to use

Connect the 20-pin USB Type-E male plug to the corresponding internal header on the motherboard or PCIe USB card, ensuring correct orientation. Position the USB Type-C female connector at the desired slot bracket or chassis cutout and fasten it with two screws through the provided mounting holes. Route the cable inside the case to avoid interference with fans and moving parts. After securing, power on the system and verify the port is recognized by the operating system.

Recommendations

Use this cable when your motherboard or expansion card offers an internal USB Type-E 20-pin header and you need a permanent, securely mounted external USB-C port. Keep the cable length of 0.5 m in mind when planning internal routing; avoid sharp bends and direct contact with heat sources.
