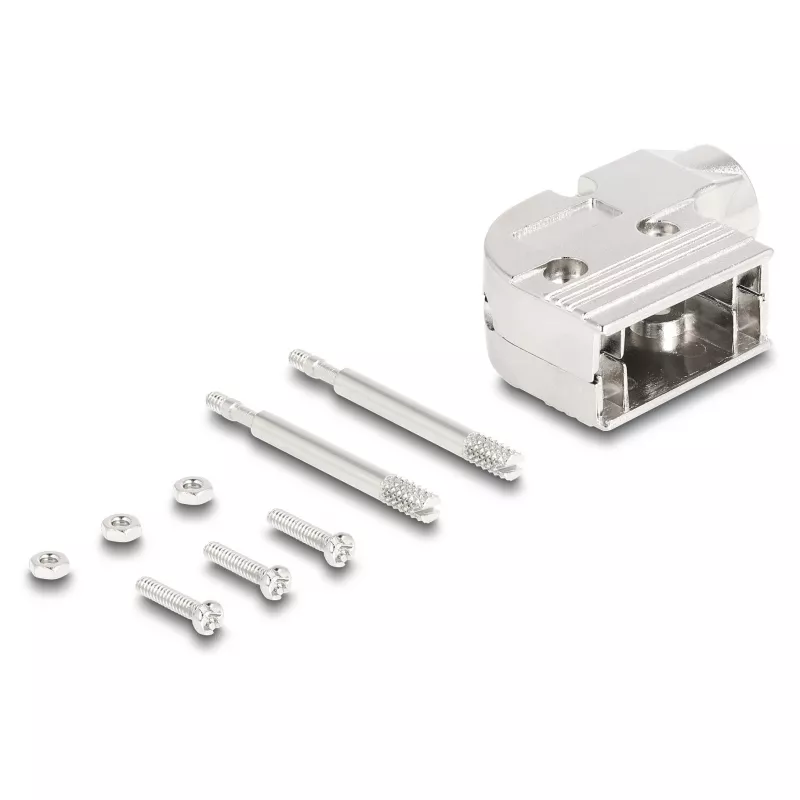

Caixa D-Sub DELOCK 9 pinos angular 90° com alívio de tração, plástico prateado, 33×47×16 mm

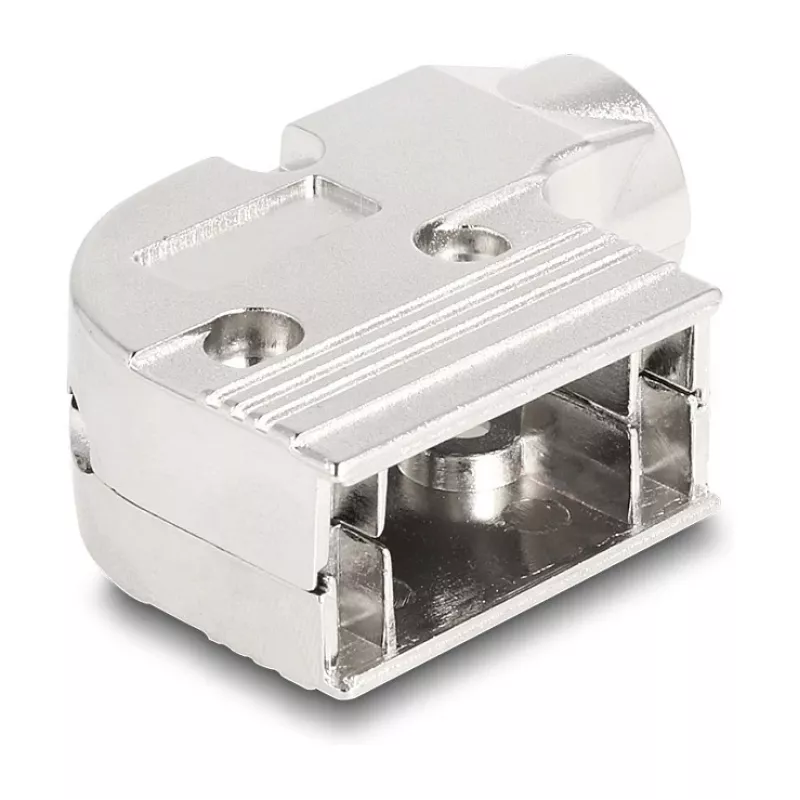

DELOCK D-Sub housing 9‑pin angled 90° cable boot in silver plastic is a protective enclosure designed for D-Sub 9 (DE‑9) male and female connectors. With external dimensions of 33×47×16 mm and a 90° angled configuration, the housing provides mechanical protection and strain relief for cable terminations and assembled connectors in electronics enclosures, industrial cabling or repair work. The single-piece supply makes it suitable for DIY installation and small-batch assembly tasks.

Advantages

The angled 90° design reduces cable stress at the connector exit and helps route cables in confined spaces. Constructed from silver plastic, the boot offers basic protection against dust and mechanical abrasion while remaining lightweight. Its compact dimensions fit standard D-Sub 9 assemblies and provide convenient strain relief to extend connector lifetime.

Suitable for

• Repair and replacement of D-Sub 9 cable connections
• Small-scale or DIY electronics assemblies
• Industrial cabling where angled exits are required
• Enclosures with limited space behind panels

Key specifications

• Connector compatibility: D-Sub 9 (9‑pin)
• Orientation: 90° angled cable exit
• Material: plastic (silver finish)
• External dimensions: 33 mm (W) × 47 mm (D) × 16 mm (H)
• Quantity: 1 piece

How to use

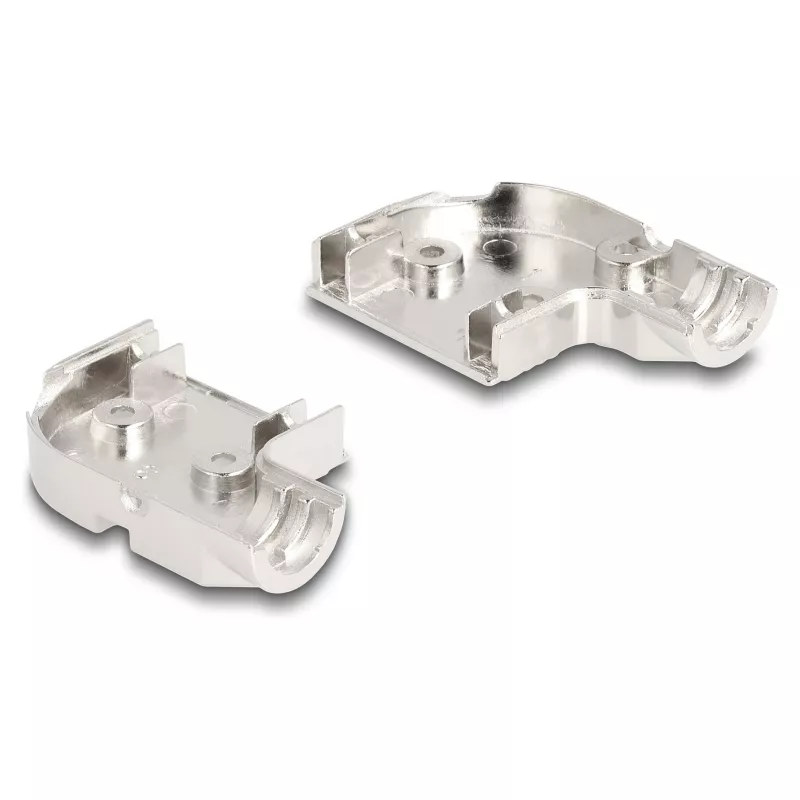

Disassemble the D-Sub connector assembly if required and position the cable through the boot before securing the connector shell. Align the housing halves around the connector and fasten any required screws or clips according to the connector manufacturer's guidance. Ensure the cable is seated in the boot for proper strain relief and that the angled exit is oriented to match the intended cable routing path.

Recommendations

For reliable performance, verify connector pin alignment before final assembly and avoid overtightening screws that could deform the plastic housing. Use this housing in environments where basic dust and abrasion protection is sufficient; for enhanced environmental sealing, consider additional grommets or sealed connector solutions.
