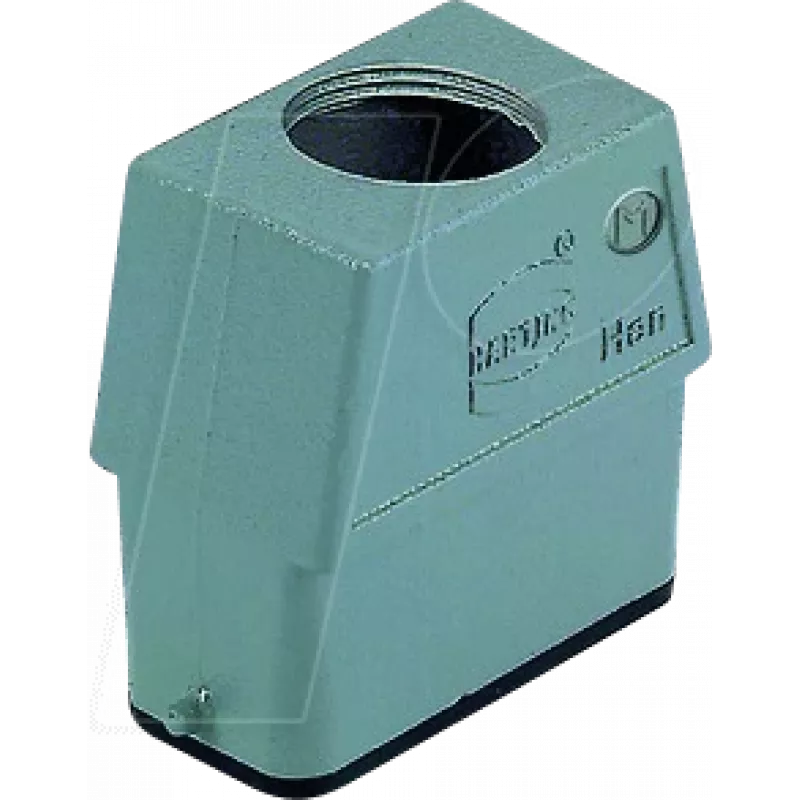

Caixa de conector Harting HAN 10 A-GG-M25, caixa retangular industrial em metal

Harting HAN 10 A-GG-M25 connector housing is a metal rectangular industrial hood designed to accept Han 10 inserts. It provides mechanical protection and reliable grounding for panel- or cable-mounted connections in machinery, control cabinets and industrial installations. The robust metal construction offers enhanced durability and electromagnetic interference (EMI) shielding where required, supporting secure and long-term electrical connections in demanding environments.

Advantages

The metal housing offers high mechanical strength and ensures a grounded enclosure to reduce electrical noise and improve safety. Its rectangular form factor is compatible with standard Han 10 inserts, enabling straightforward assembly and replacement. Corrosion-resistant finish and precise manufacturing tolerances deliver consistent mating performance and prolonged service life in industrial environments.

Suitable for

• Panel-mounted industrial connectors in machinery and control cabinets
• Cable-mounted connections requiring a robust metal hood
• Applications where EMI shielding and grounding are required
• Environments demanding durable mechanical protection for electrical contacts

Key specifications

• Housing material: metal construction for mechanical protection and grounding
• Form factor: rectangular industrial hood compatible with Han 10 inserts
• Mounting: suitable for panel or cable mounting with corresponding insert
• Environmental protection: durable finish to resist corrosion in industrial settings
• EMI performance: metal enclosure provides electromagnetic shielding

How to use

Select the appropriate Han 10 insert and align it with the housing opening, ensuring correct orientation before installation. For panel mounting, secure the housing to the panel cutout with the recommended fasteners and connect the insert internally according to the electrical schematic. For cable mounting, fit the cable gland or strain relief (M25-compatible) and route conductors into the insert before assembling the housing. Ensure the housing is properly grounded to the equipment chassis to maintain EMI shielding and safety.

Recommendations

Perform routine inspections of the housing and mating surfaces to ensure clean contacts and intact grounding. Use compatible Han 10 inserts and recommended fasteners to maintain mechanical stability. When installing in corrosive or highly humid environments, consider additional protective measures such as sealing compounds or environmental enclosures to extend service life.
