Caixa de instalação ABB M1175C tipo F, 45×85×70 mm, cinzento

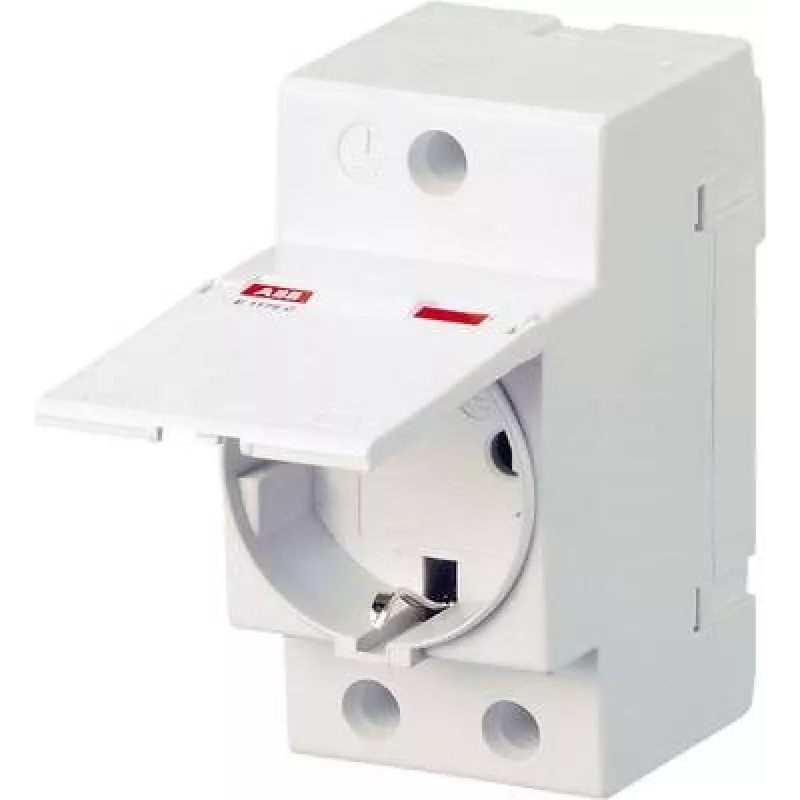

ABB M1175C Type F outlet box is a grey plastic enclosure designed for electrical installations where a compact, reliable housing is required. With external dimensions of 45×85×70 mm, this box accommodates mounting sockets or switches and provides space for wiring and connections. Its form factor supports both flush and surface mounting and includes a cover to protect terminals and installed devices, making it suitable for use in residential and commercial environments.

Advantages

The enclosure offers a standardized Type F layout in a compact footprint, enabling tidy and accessible wiring for sockets, switches or non-modular equipment. Manufactured from durable plastic, the box resists impact and provides electrical insulation while remaining lightweight for easy handling. Its included cover secures connections and reduces exposure to dust and accidental contact.

Suitable for

• Mounting single sockets or switches in homes and offices
• Surface-mount installations where wall cavities are unavailable
• Enclosing connection points for small electrical or electronic devices
• Use in renovation projects to retrofit modular fittings

Key specifications

• Type: F outlet box
• Material: grey plastic enclosure
• External dimensions (W×H×D): 45×85×70 mm
• Mounting: flush or surface mounting compatibility
• Includes: protective cover for terminals and devices

How to use

Prepare the installation location by ensuring the mounting surface is clean and structurally sound. Position the ABB M1175C box and mark fixing points, then secure the enclosure using appropriate screws or fasteners for the surface material. Route supply and equipment cables into the box through suitable entry points, arrange and terminate conductors according to local wiring standards, and mount the socket, switch or device on the box frame. Finally, attach the cover to protect the connections and restore power following verification of correct wiring and secure terminations.

Recommendations

Install and wire the outlet box in accordance with applicable electrical codes and safety standards. Verify wire sizes, protective devices and grounding before connecting equipment. Use proper cable glands or grommets for entries to maintain mechanical protection and strain relief.
