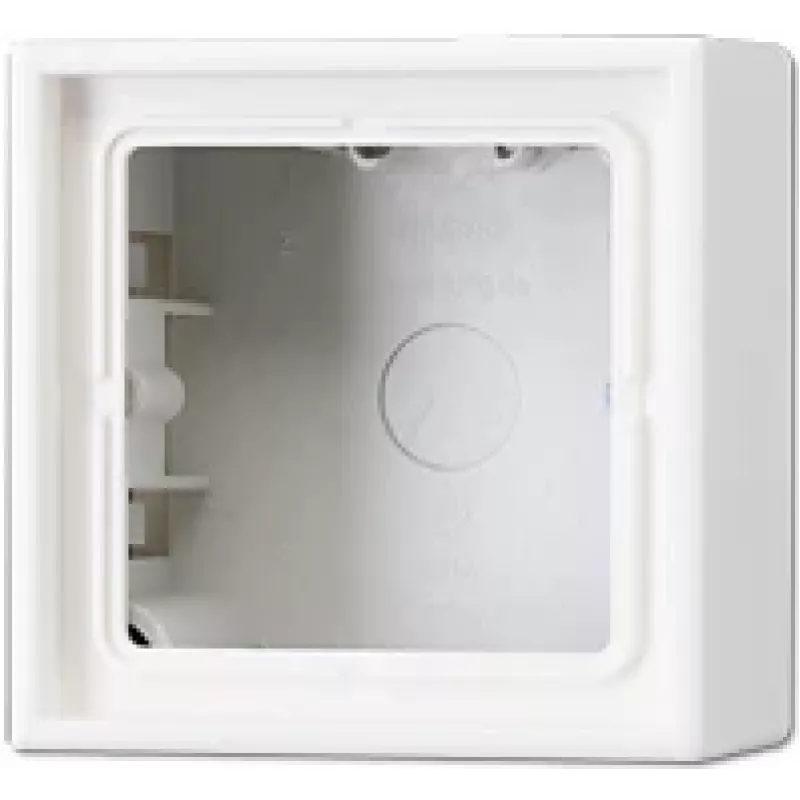

Caixa de instalação JUNG LS 581 A WW, caixa de aparelho 81×81×47 mm, branco

JUNG LS 581 A WW is a rectangular mounting/outlet box in white with external dimensions of 81 × 81 × 47 mm. It is designed to receive one module from the JUNG LS range and provides a protected cavity for electrical wiring and connections. The box includes an integrated frame and a non‑flammable ground plate and is suitable for surface or flush applications depending on the chosen installation method.

Advantages

The mounting box offers a compact one‑gang solution compatible with most LS range inserts with covers, providing reliable mechanical support and a dedicated space for wiring. The integrated frame simplifies the installation of compatible modules while the non‑flammable ground plate enhances electrical safety. Its standardized dimensions make it easy to pair with existing systems and finishes in residential or light commercial environments.

Suitable for

Key specifications

How to use

Position the mounting box at the desired location and secure it using appropriate screws or mounting accessories for surface or flush installation. Route the supply conductors into the cavity and attach the non‑flammable ground plate to the grounding conductor as required by local regulations. Fit the compatible LS range insert into the integrated frame and secure it according to the insert manufacturer’s instructions. Finally, attach the cover or faceplate compatible with the chosen LS module and verify all electrical connections before restoring power.

Recommendations

Use the box only with compatible LS range inserts and avoid fitting excluded items such as key switches, 3‑level switches or Swiss type 13 sockets. Follow local electrical codes and the installation instructions from JUNG to ensure safe grounding, proper fixation, and correct cable routing. For installations in damp or exposed locations, select additional protective measures or enclosures as required.
