Caixa de instalação para isolamento exterior Kaiser Elektro 1159-70

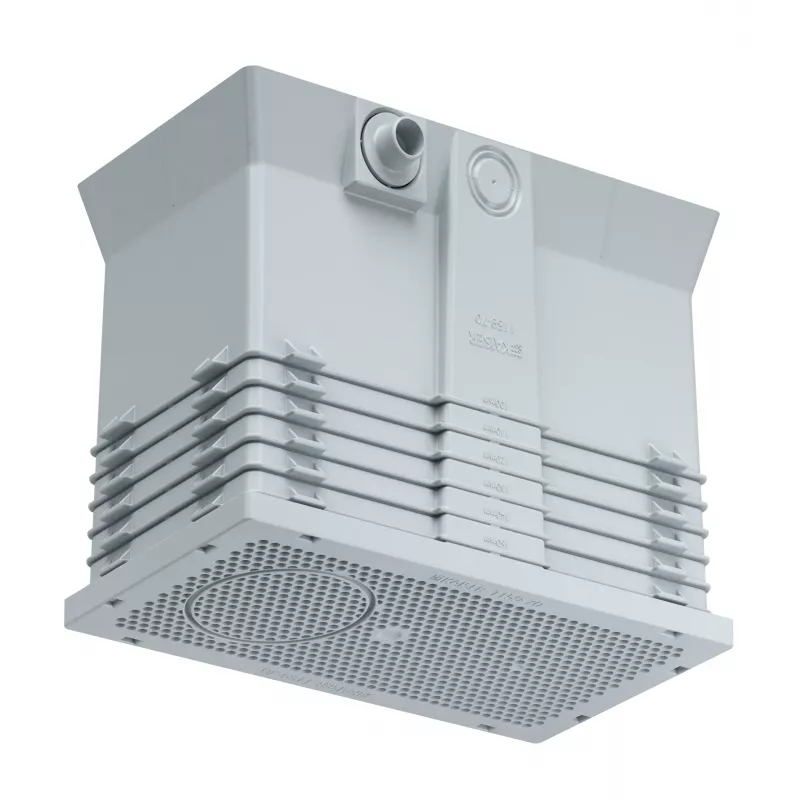

The Kaiser Elektro 1159-70 Installation Housing for External Insulation is a high-quality flush-mounted box designed for use in thermal insulation composite systems (ETICS). It allows for the safe and secure installation of standard electrical devices such as switches, sockets, and motion detectors in external walls with insulation thicknesses from 80 to 200 mm. The housing is made of halogen-free plastic and is flame retardant (B2), ensuring safety and compliance with building regulations.

Advantages

This installation housing prevents thermal bridges, reducing heat loss and improving energy efficiency. Its adjustable depth can be cut to match the exact insulation thickness, providing a perfect fit. The IP30 protection class guards against dust and water splashes, while UV resistance ensures long-lasting performance outdoors. Multiple pre-punched cable entries (M20/M25) simplify wiring.

Suitable for

• Installation of single electrical devices in external insulated walls
• Use in ETICS (External Thermal Insulation Composite Systems)
• Flush-mounted applications in new builds and renovations

Key specifications

• Product Type: Installation Housing for External Insulation
• Insulation Thickness Range: 80 - 200 mm
• Mounting Type: Flush-mounted
• Material: Halogen-free plastic
• Fire Protection Class: B2 (flame retardant)
• Protection Class: IP30
• Device Compatibility: Standard electrical devices (switches, sockets, motion detectors)
• Number of Devices: 1
• Thermal Bridge Prevention: Yes
• Cable Entries: Multiple pre-punched entries
• Conduit Entry Diameter: M20/M25
• Inner Diameter (Device Opening): 60 mm
• Outer Diameter: 145 mm
• Adjustable Depth: Yes (cuttable to insulation thickness)
• Colour: Grey / Orange
• UV Resistance: Yes
• Temperature Range: -25°C to +60°C

Recommendations

For optimal performance, ensure the housing is cut precisely to the insulation thickness and sealed properly to maintain thermal integrity. Compatible with standard 60 mm device openings.
