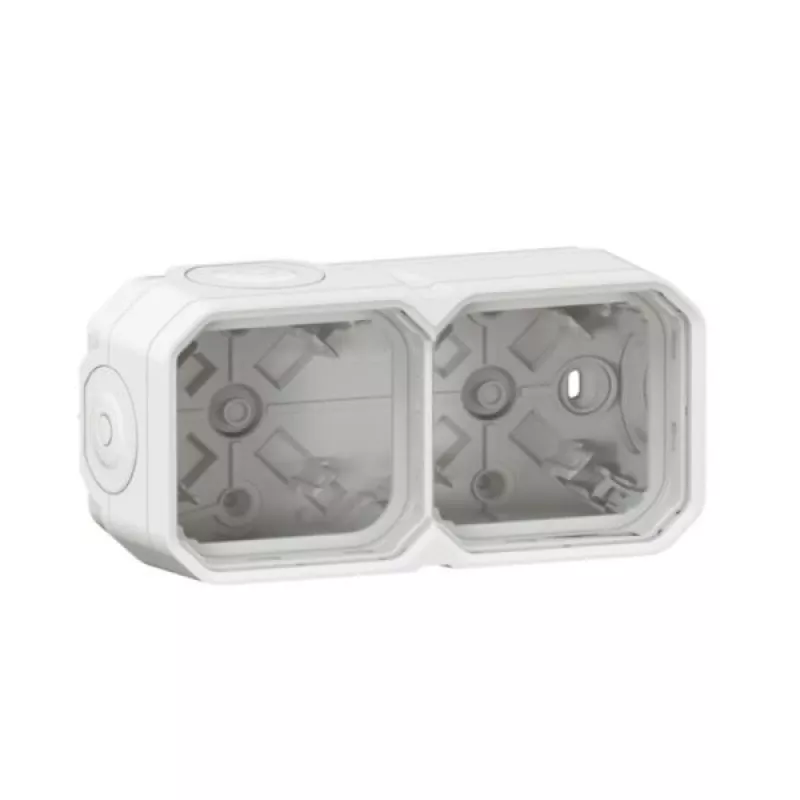

Caixa de Ligação Elétrica Legrand 069690L — Caixa de Instalação de 1 Peça para Ligações de Cablagem

Legrand 069690L electrical junction box is a single-piece mounting box designed to provide a secure enclosure for wiring connections in residential and commercial electrical installations. The box accepts cable junctions and splices, helping to organize and protect conductors where connections are made. Supplied as one unit, it supports standard mounting practices and is suitable for use during new wiring, renovation, or repair work.

Advantages

The single-piece construction simplifies installation and reduces the number of components to handle on site. The enclosure provides mechanical protection for splices and helps maintain separation of conductors in accordance with good electrical practice. Being a purpose-made junction box from a recognized manufacturer, it offers consistent dimensions and material quality that aid compatibility with common wiring accessories and mounting methods.

Suitable for

Key specifications

How to use

Mount the junction box in accordance with local electrical codes and the installer’s instructions. Prepare and route cables into the box through appropriate entry points or knockouts, secure cables as required, and make wire connections using appropriate connectors or terminal blocks. Push the completed splice assembly fully into the enclosure and fasten the box in place to provide mechanical protection; ensure the cover or closing method is applied if provided. Verify clearances and accessibility for future inspection or maintenance.

Recommendations

Use this junction box in compliance with applicable national and local electrical regulations; always isolate power before performing any wiring work. Select cable clamps or grommets if required for secure cable entry and consider the number and size of conductors to avoid overcrowding the enclosure.
