Caixa de montagem universal de superfície Equip 125561

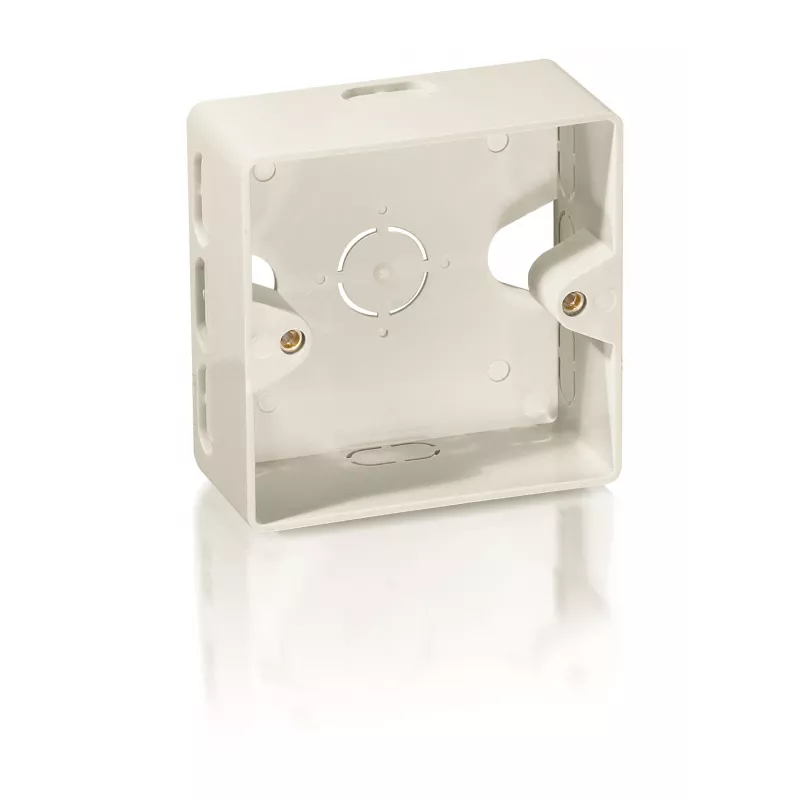

The Equip Universal Surface Mounting Back Box (model 125561) is a solid, compact enclosure designed for easy surface installation of electrical devices and cable terminations. With external dimensions of 80 mm x 80 mm x 35 mm, it offers a space-efficient solution for mounting switches, sockets or faceplates where recessing is not possible. The back box is compatible with several Equip faceplate series and is built to provide reliable mechanical support for wiring and devices.

Advantages

The back box features a sturdy construction that ensures durability during installation and everyday use. Its compact size simplifies placement on walls or other flat surfaces while the standardized dimensions make it compatible with Equip faceplates. The product’s design facilitates neat cable routing and secure device fastening without requiring in-wall installation.

Suitable for

• Surface mounting of switches and sockets
• Retrofit installations where flush mounting is impractical
• Mounting Equip faceplates from series 125725, 125762, 125761, 125772
• Small electrical junctions and cable terminations

Key specifications

• Brand: EQUIP
• Manufacturer part number (MPN): 125561
• EAN: 4015867137499
• External dimensions: 80 x 80 x 35 mm
• Packaging dimensions: 95 x 85 x 195 mm

How to use

Position the back box on the chosen flat surface, mark mounting holes and cable entry points, and fasten the box using appropriate screws and wall plugs for the substrate. Route cables through the provided entries or drill the required openings, make the necessary electrical connections, and secure the compatible faceplate (for example from Equip series 125725, 125762, 125761, 125772) to the box using the supplied or appropriate fixings.

Recommendations

Use suitable fastening hardware for the wall material, follow local electrical codes during installation, and ensure power is disconnected before connecting or servicing electrical devices.
