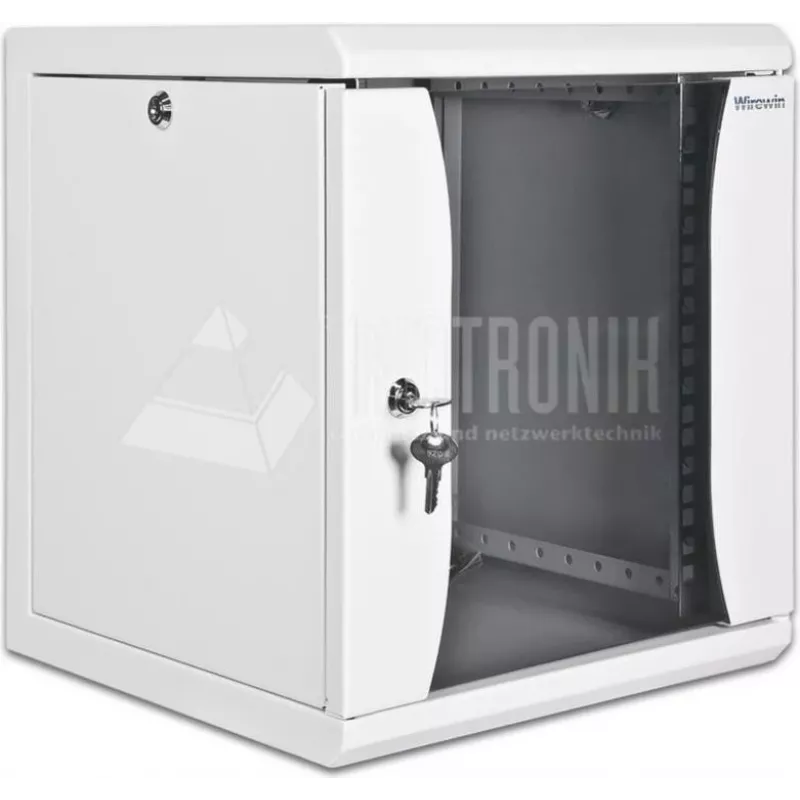

Caixa de parede 10 inch Wirewin, uma peça, cinzento RAL 7035, 6U (WCAB 10 320X300X6U)

Network installers and IT technicians use this 6U wall-mount cabinet to house 10-inch networking equipment in offices, retail back rooms, and small server rooms. Its compact 320 x 300 mm footprint fits tight spaces while keeping patch panels, switches, and other devices organized and secure.

Key specifications

• Rack units: 6U
• External dimensions: 320 mm width, 300 mm depth, 360 mm height
• Colour: Grey (RAL 7035)
• Material: Steel with powder-coated finish
• Front door: Tempered glass with key lock
• Side panels: Fixed
• Cable entry: Top and bottom
• Mounting: Wall-mountable
• Load capacity: 60 kg
• Mounting profile: 10-inch, adjustable depth
• Protection rating: IP20
• Ventilation: Passive (optional fan unit support)
• Assembly: Pre-assembled

Why choose it

This cabinet provides a secure, lockable enclosure for network equipment in areas with limited floor space. The tempered glass door allows visual monitoring of indicator lights, while the powder-coated steel construction offers durability. Adjustable mounting profiles accommodate various equipment depths.

Ideal use cases

• Small office network installations
• Retail point-of-sale equipment housing
• Wall-mounted patch panel and switch enclosures
• Industrial control cabinets in workshops

Good to know

The cabinet is pre-assembled for quick installation. Passive ventilation helps dissipate heat, and the top and bottom cable entries provide flexible routing options.
