Caixa de PC Azza Tiara Midi Tower Preto

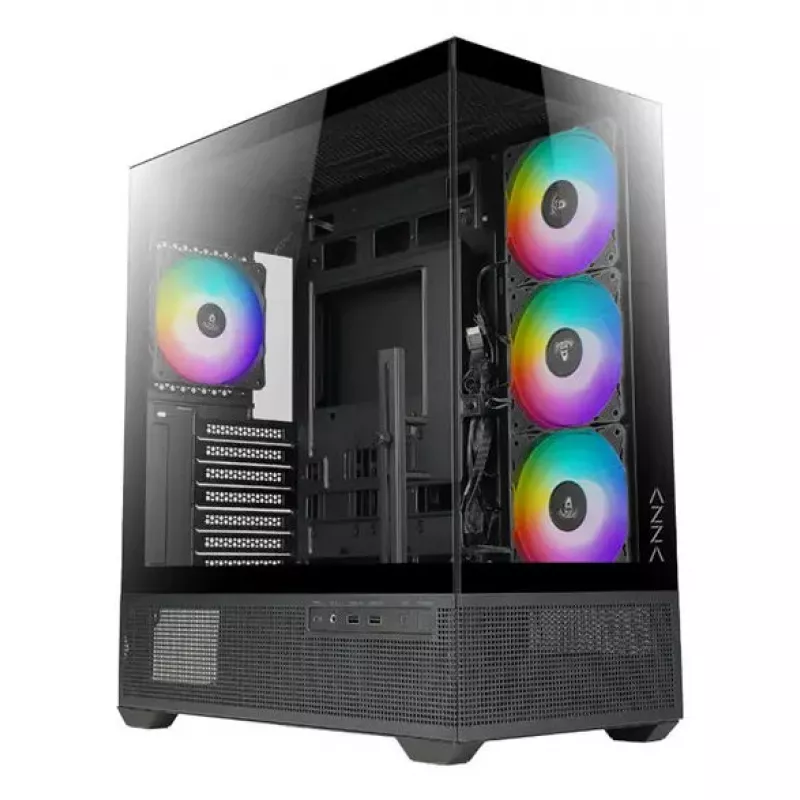

The Azza Tiara Midi Tower Black is a compact ATX-compatible PC case with a bottom-mounted power supply layout and an emphasis on unrestricted airflow. Cooling holes around the bottom panel form a vertical air path to accelerate intake and exhaust from multiple angles. The chassis fits graphics cards up to 400 mm and combines tempered glass and mesh panels for a balanced appearance and effective heat dissipation. The case ships with three 120 mm ARGB side fans and one 120 mm ARGB rear fan, and includes a VGA support bar.

Advantages

The case offers a versatile cooling architecture with multiple fan mounting locations including three additional 120 mm positions above the PSU shroud for direct GPU airflow, allowing support for up to 10 x 120 mm fans in total. Solid right and bottom panels with ventilation grids enhance overall chamber ventilation. Front I/O is comprehensive with power and LED buttons, 2 x USB 3.0 Type-A ports, a USB Type-C port and a combo HD audio jack. Storage flexibility is provided by a drive cage tray and multiple 2.5"/3.5" mounting points.

Suitable for

• Custom gaming and high-performance builds requiring strong airflow and GPU cooling
• ATX, Micro-ATX and Mini-ITX motherboard systems
• Systems needing multiple 2.5" SSDs and up to two 3.5" HDDs
• Builds that use ARGB lighting and visible side panels

Key specifications

• Form factor: Midi Tower; supports ITX, Micro ATX, ATX
• Exterior: Tempered glass side panel and steel chassis with mesh ventilation
• Pre-installed fans: 3 x 120 mm ARGB (side) + 1 x 120 mm ARGB (rear)
• Maximum GPU length: up to 400 mm
• Fan support: up to 10 x 120 mm (including 3 above PSU shroud)
• Drive bays: 1 x 3.5" or 2.5" in drive cage tray; top of cage supports 1 x 3.5" or 2.5"; right side supports 2 x 2.5"
• Front I/O: Power, LED button, 2 x USB 3.0 Type-A, 1 x USB Type-C, Combo HD Audio
• Dimensions (W x D x H): 225 x 420 x 482 mm
• Weight: 6.38 kg

How to use

Install the motherboard (ITX/Micro-ATX/ATX) onto the standoffs, mount the PSU in the bottom compartment and route cables through the provided cutouts. Install storage drives into the drive cage tray or the dedicated 2.5" mounts on the right panel. Fit the GPU (up to 400 mm) and secure it with the included VGA support bar if needed. Connect case fans and ARGB headers to the motherboard or controller, and use the front I/O for peripherals and audio connections.

Recommendations

For optimal cooling, populate intake and exhaust positions symmetrically and consider adding the three 120 mm fans above the PSU shroud to direct airflow to the GPU. Regularly clean mesh panels and filters to maintain airflow and ARGB connections for proper lighting control.
