Caixa de plástico de sobrepor NOARK, IP65, 4 filas, 48 módulos, porta transparente, cinzento

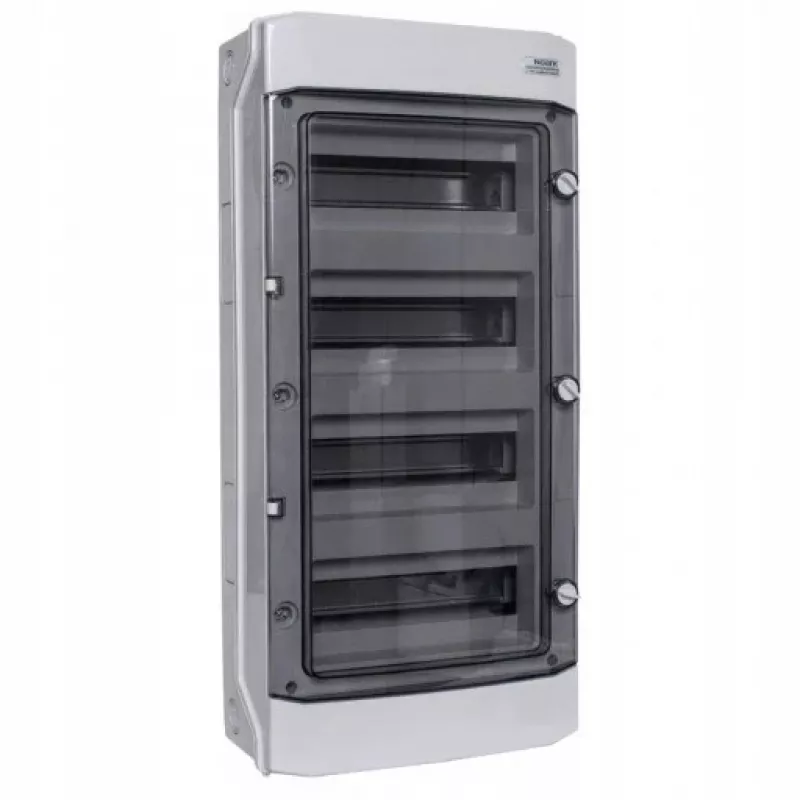

The NOARK 8465 plastic installation enclosure is a robust, surface-mounted distribution board designed for demanding environments. With an IP65 rating and IK08 impact protection, it offers excellent resistance against dust, water jets, and mechanical impacts. The enclosure features 4 rows with 12 modules each, providing a total capacity of 48 modules. Its transparent polycarbonate door allows easy visual inspection of installed components. Ideal for industrial, commercial, and outdoor applications where reliability and safety are paramount.

Advantages

High ingress protection (IP65) ensures operation in wet or dusty conditions. Impact resistance (IK08) protects against vandalism or accidental damage. The transparent door enables quick status checks without opening. Halogen-free and UV-resistant materials ensure long-term durability and safety. Complies with IEC/EN 62208 standards for empty enclosures.

Suitable for

• Industrial electrical distribution
• Outdoor power and control systems
• Commercial building installations
• Infrastructure projects requiring high protection

Key specifications

• Brand: NOARK
• Model: 8465
• EAN: 5904905314376
• Mounting: Surface-mounted
• IP Rating: IP65
• IK Rating: IK08
• Rows: 4
• Modules per row: 12
• Total modules: 48
• Material: Thermoplastic (PC/ABS)
• Door: Transparent polycarbonate
• Colour: Grey (RAL 7035)
• Rated insulation voltage: 1000V AC / 1500V DC
• Rated impulse withstand voltage: 8kV
• Operating temperature: -25°C to +60°C
• Terminal blocks: N+PE included
• Glow wire test: 650°C (base), 850°C (live parts)
• Halogen-free: Yes
• UV resistant: Yes

Recommendations

For optimal performance, use with NOARK compatible DIN rail components. Ensure proper sealing of cable entries to maintain IP65 rating. Suitable for both indoor and outdoor installations where protection against water and dust is required.
