Caixa de rack 19 polegadas para montagem na parede ROLINE Pro 7U 600x600 LxP, preto, fechadura com chave, IP20

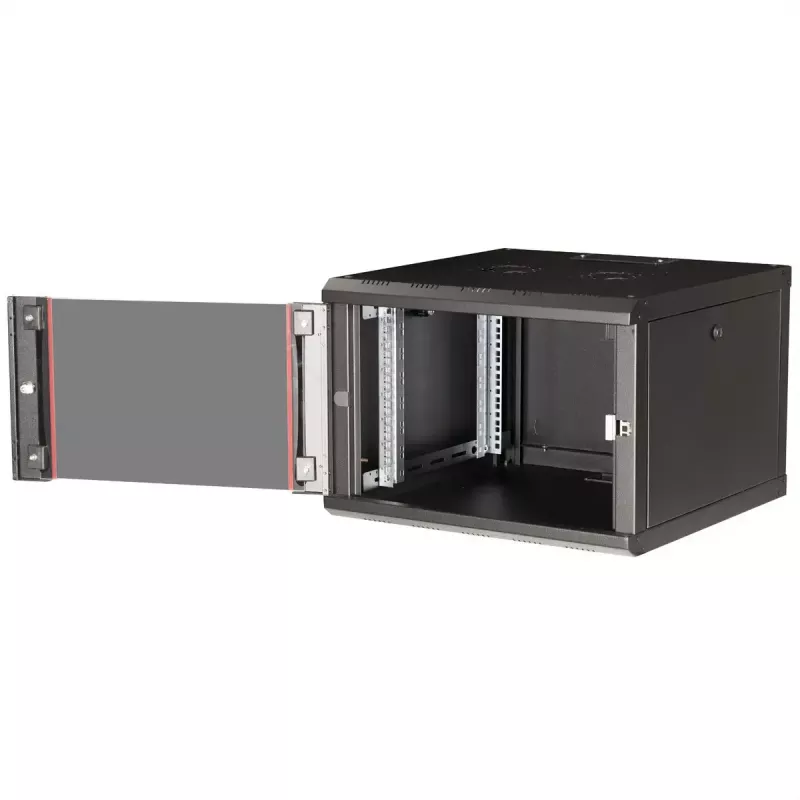

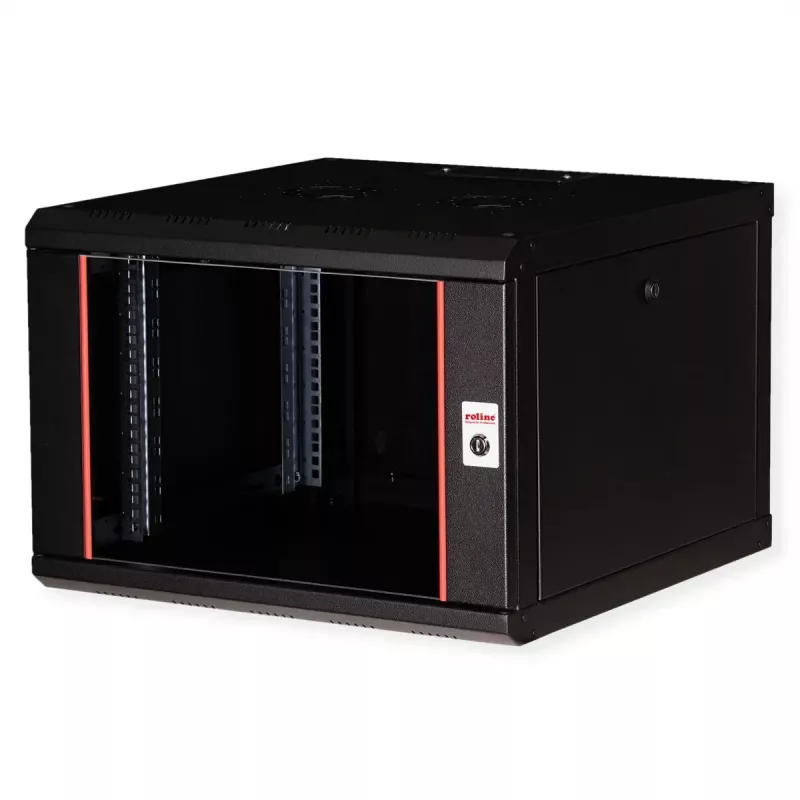

The ROLINE Pro 7U wall-mounted 19-inch rack cabinet provides a compact, robust enclosure for network and server equipment. It has a 600 x 600 mm footprint (W x D) and offers 7U of usable rack space with adjustable, galvanised 19" profile rails. The cabinet is made from up to 1.5 mm sheet steel and is powder-coated in black (RAL 9005). The design includes a slide-on cable inlet in the roof with a foam seal, punched cable inlets with plastic covers on the rear panel and base plate, and a roof area prepared for an optional fan module. Side panels and the front door are modular, lockable and removable to improve accessibility. Wall mounting is done by first fixing the rear panel to the wall and then attaching the housing; optional levelling feet or castors allow conversion to a free-standing cabinet.

Advantages

The enclosure combines sturdy steel construction with adjustable internal rails to support a variety of 19" devices while maintaining a small footprint. Cable management features such as the roof inlet with foam seal and covered punched entries help keep installations tidy and protected. Removable, lockable side panels and front door provide secure access and convenient maintenance. The cabinet's roof is prepared for fan installation and the unit can be converted to a free-standing setup with optional feet or wheels.

Suitable for

• Small office network and patch panel installations
• Telecom wall-mounted equipment and distribution points
• Compact server or appliance mounting where 7U is sufficient
• Environments requiring basic security (key lock) and IP20 protection

When it may not be suitable

This 7U, 600x600 mm wall cabinet is not suitable when large amounts of equipment, high-density server racks, or substantial cooling capacity are required. It provides only IP20 protection and is therefore not appropriate for dusty, wet or outdoor environments without additional enclosure measures.

Key specifications

• Rack height: 7U usable rack units (19" standard, 483 mm height units)
• External footprint (W x D): 600 x 600 mm
• Material and thickness: Steel sheet construction up to 1.5 mm
• Finish: Powder-coated black (RAL 9005)
• Protection class: IP20
• Cable management: Slide-on roof inlet with foam seal; punched cable inlets with plastic covers on rear and base
• Internal rails: Galvanised 19" profile rails, depth-adjustable

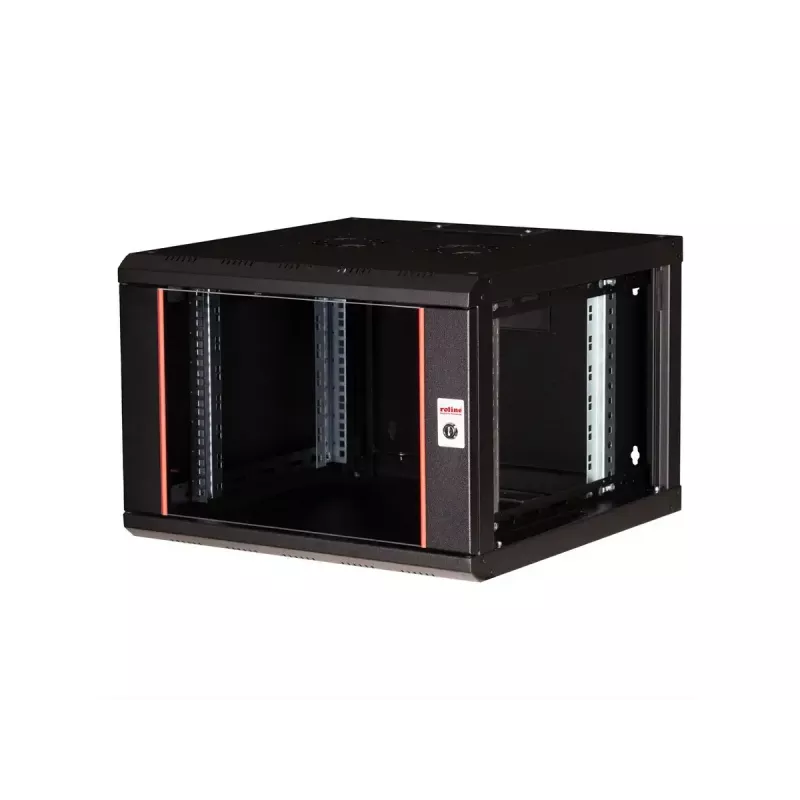

• Accessibility: Removable, lockable front door and side panels
• Cooling provision: Roof area prepared for a fan module

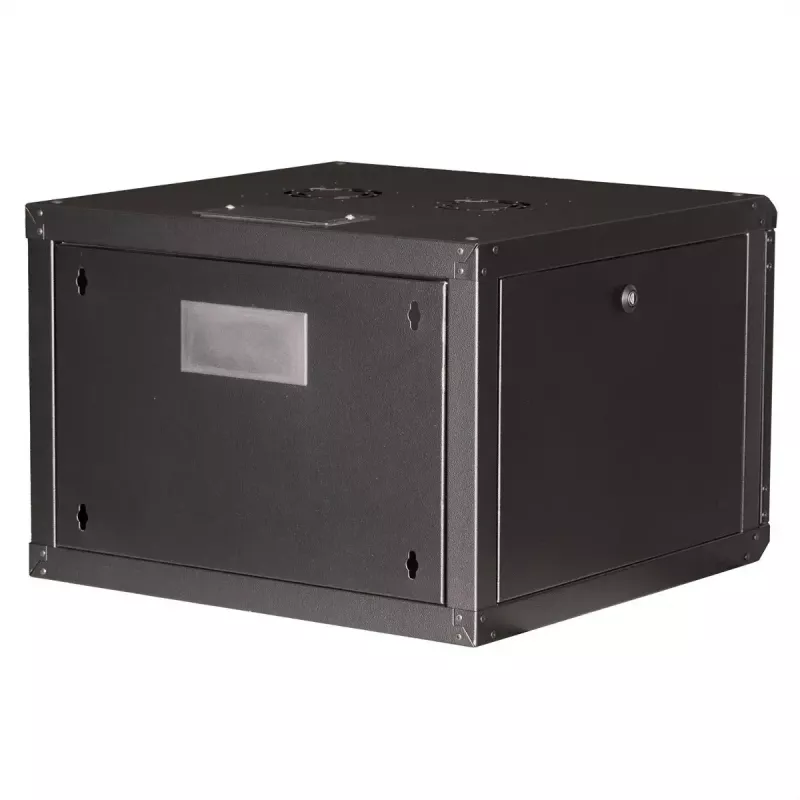

• Mounting: Wall-mount via removable rear panel; optional levelling feet or castors for free-standing use

How to use

Begin installation by mounting the rear panel securely to a suitable wall surface using appropriate fixings for the wall material. Attach the rack housing to the fixed rear panel, then install and adjust the galvanised profile rails to the required depth for your equipment. Route cables through the roof inlet or punched entries and secure them using the provided covers. Fit equipment into the 19" rails, lock the front door if security is needed, and install optional fan, levelling feet or castors as required.

What to consider before purchase

• Required rack units and device depth — ensure 7U and 600 mm depth are sufficient for your equipment
• Environmental protection — IP20 is intended for indoor dry environments
• Load capacity and wall fixing — check wall strength and use appropriate anchors for the cabinet weight and fitted equipment
• Cooling needs — consider whether the prepared fan spot and ventilation are adequate for heat dissipation

Recommendations

For reliable operation, distribute mounted equipment evenly across the rail positions, secure heavy devices lower in the cabinet to lower the centre of gravity, and plan cable routing before installation to make best use of the roof inlet and covered punched entries. Use appropriate wall anchors and periodically check door and panel locks.
