Caixa de servidor Supermicro SC815TQ-R700WB Rack preto

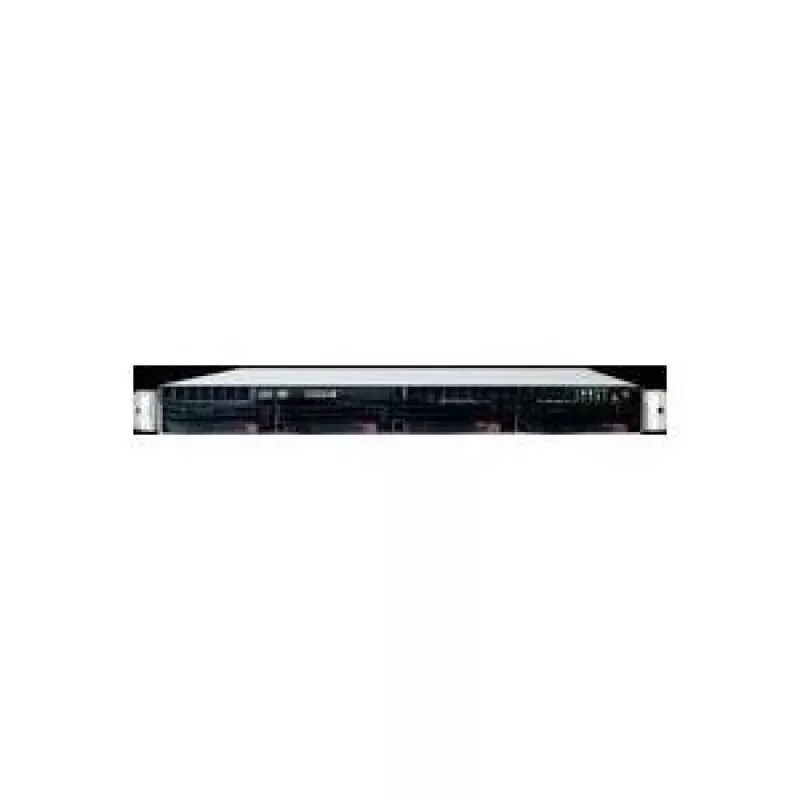

The Supermicro SC815TQ-R700WB is a 1U rack server chassis designed for Xeon and Opteron platforms. It includes a 700 W high-efficiency power supply and provides four hot-swap 3.5" drive bays, support for EATX motherboards and a compact footprint of 437 mm (W) × 650 mm (D) × 43 mm (H). The chassis offers high-performance fans and optional front LCD bezels and quick-release slide rails for data center and HPC environments.

Advantages

This server case combines a slim 1U form factor with support for full-size EATX motherboards and four 3.5" hot-swap bays, enabling high storage density in a compact rack unit. The included 700 W high-efficiency PSU reduces power losses while high-performance fans maintain optimized cooling for latest-generation memory and processors. Optional front bezels and quick-release rails allow customization and easier maintenance in rack deployments.

Suitable for

• Rack-mounted servers in data centers
• High-performance computing (HPC) clusters
• Storage-dense 1U server deployments
• Enterprise applications requiring EATX motherboards

Key specifications

• Model: Supermicro SC815TQ-R700WB (CSE-815TQ-R700WB)
• Form factor: 1U rack chassis
• Power supply: 700 W (included)
• Drive bays: 4 × 3.5" hot-swap
• Supported motherboard: EATX
• Dimensions (W × D × H): 437 × 650 × 43 mm
• Colour: Black
• Weight: 16.3 kg

How to use

Install an EATX-compatible server motherboard into the chassis, mount processors, memory modules and necessary expansion cards, then insert up to four 3.5" drives into the hot-swap bays. Connect the included 700 W power supply to the system and route power and data cables according to rack and data-center cabling standards. Optionally attach the front LCD bezel and slide rails for easier access and monitoring once the chassis is mounted in a 19" rack.

Recommendations

For reliable operation, deploy the chassis in a controlled rack environment with appropriate airflow and temperature management, use enterprise-grade 3.5" drives for storage, and follow Supermicro guidance for BIOS and firmware updates. Consider the optional quick-release rails for frequent maintenance or high-density rack installations.
