Caixa de sobrepor JUNG ES 2582 A-L aço inoxidável

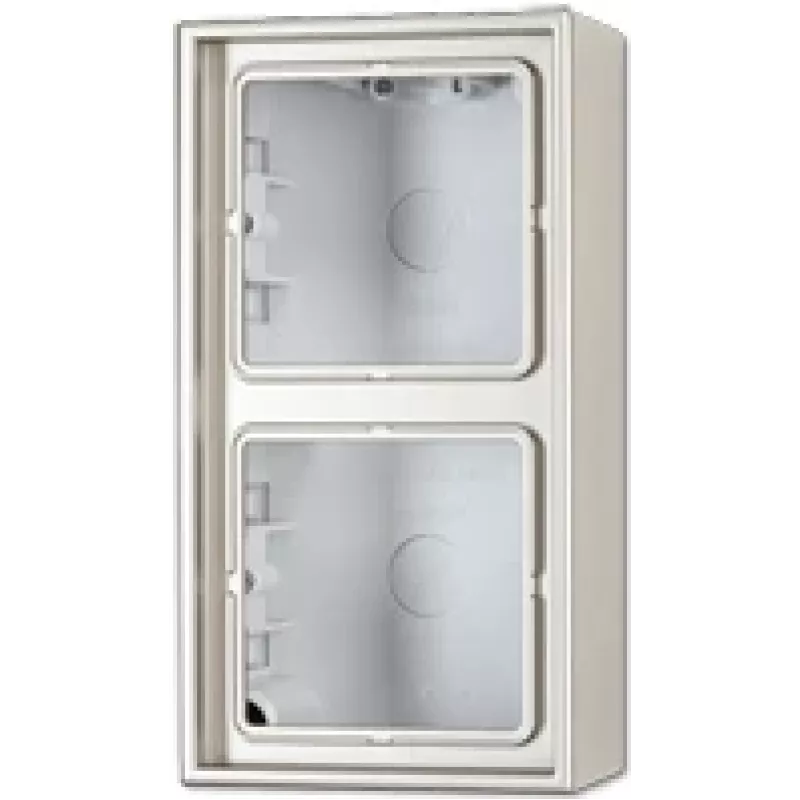

The JUNG ES 2582 A-L outlet box is made of stainless steel and designed to house electrical inserts from the LS range. It measures 152 x 81 x 47 mm and includes an integrated frame and a non‑flammable ground plate. The box is suitable for standard 2‑gang installations and allows mounting of radio unit R AN ..914 .. into 2‑ to 3‑gang surface caps. Note that inserts with key switches ref.-no. ..15, 3‑level switches and the Switzerland type 13 socket are not compatible.

Advantages

Constructed from stainless steel for corrosion resistance and long service life; includes an integrated frame and a non‑flammable grounding plate for improved safety; compact 2‑gang form factor (152 x 81 x 47 mm) for space‑efficient installation; compatible with most LS range inserts and supports installation of radio ref. R AN ..914 .. in 2‑ to 3‑gang surface caps.

Suitable for

Key specifications

How to use

Mount the outlet box on a suitable flat surface using appropriate fasteners for the mounting substrate. Insert wiring and securing terminals according to local electrical regulations, then fit compatible LS range inserts into the box and fasten the integrated frame. If installing a radio unit R AN ..914 .. in a surface cap, use a 2‑ to 3‑gang cap sized for that unit. Do not attempt to fit incompatible inserts listed above.

Recommendations

Follow local electrical codes and safety standards during installation. Use corrosion‑resistant fasteners for installations in humid or exterior environments. Confirm compatibility of specific LS inserts before installation and avoid using the box with the excluded key switch, 3‑level switch, or Switzerland type 13 socket.
