Caixa de tomada Kindermann 7492000070 Type F cinzento largura 250 mm profundidade 190 mm

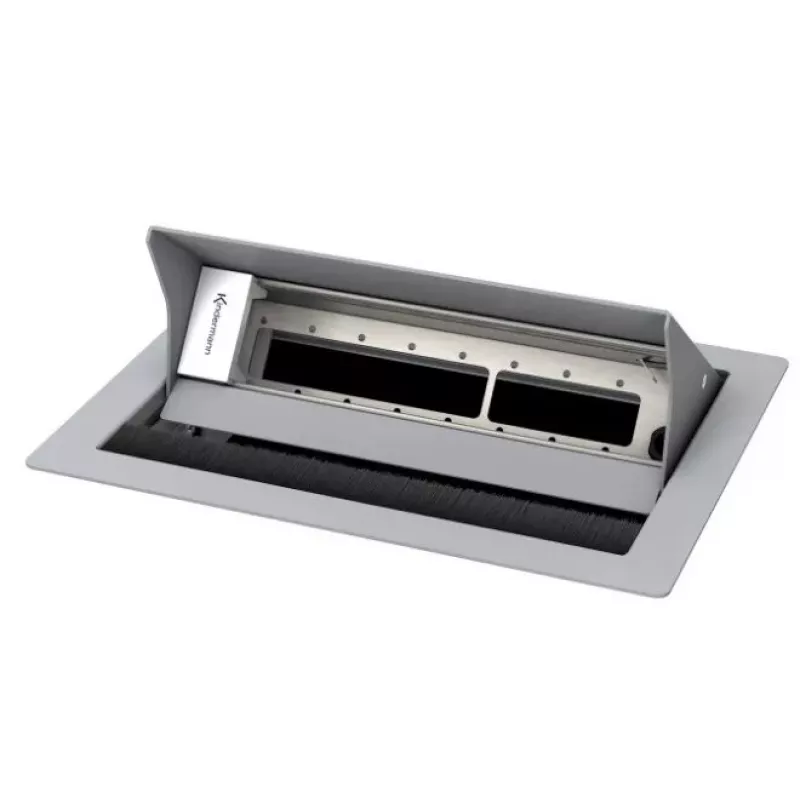

Desktop casing for 4 insets in powder-coated steel (RAL 9006 silver), supplied with four empty modules and designed for individual configuration using Konnect flex 45 adapter plates. The Outlet Box Kindermann 7492000070 Type F Grey provides organized cable management for desktops and allows level-mounted integration of interfaces such as media control and USB chargers.

Advantages

Quick mounting with a click mechanism ensures fast installation from above. The level-mounted interfaces create a homogeneous appearance and simplify access. The housing supports mains connection via a 3-pin GST 18 plug and is compatible with common multimedia and charging modules. Its compact installation depth and compatibility with the Konnect flex 45 system allow flexible configuration to workplace requirements.

Suitable for

Key specifications

How to use

Cut or prepare a desktop opening suitable for the outlet box and ensure the desktop thickness does not exceed 40 mm. Insert the housing from above and secure it using the click mechanism for quick mounting. Fit the desired Konnect flex 45 adapter plates and modules (media control, USB chargers, etc.) into the four inset positions. Connect the mains power using the 3-pin GST 18 plug and test all installed interfaces for correct operation.

Recommendations

For safe and reliable installation, verify the compatibility of selected modules with Konnect flex 45 adapter plates and follow local electrical codes when connecting the GST 18 mains plug. Ensure the cut-out dimensions and desktop thickness match the product specifications before mounting.
